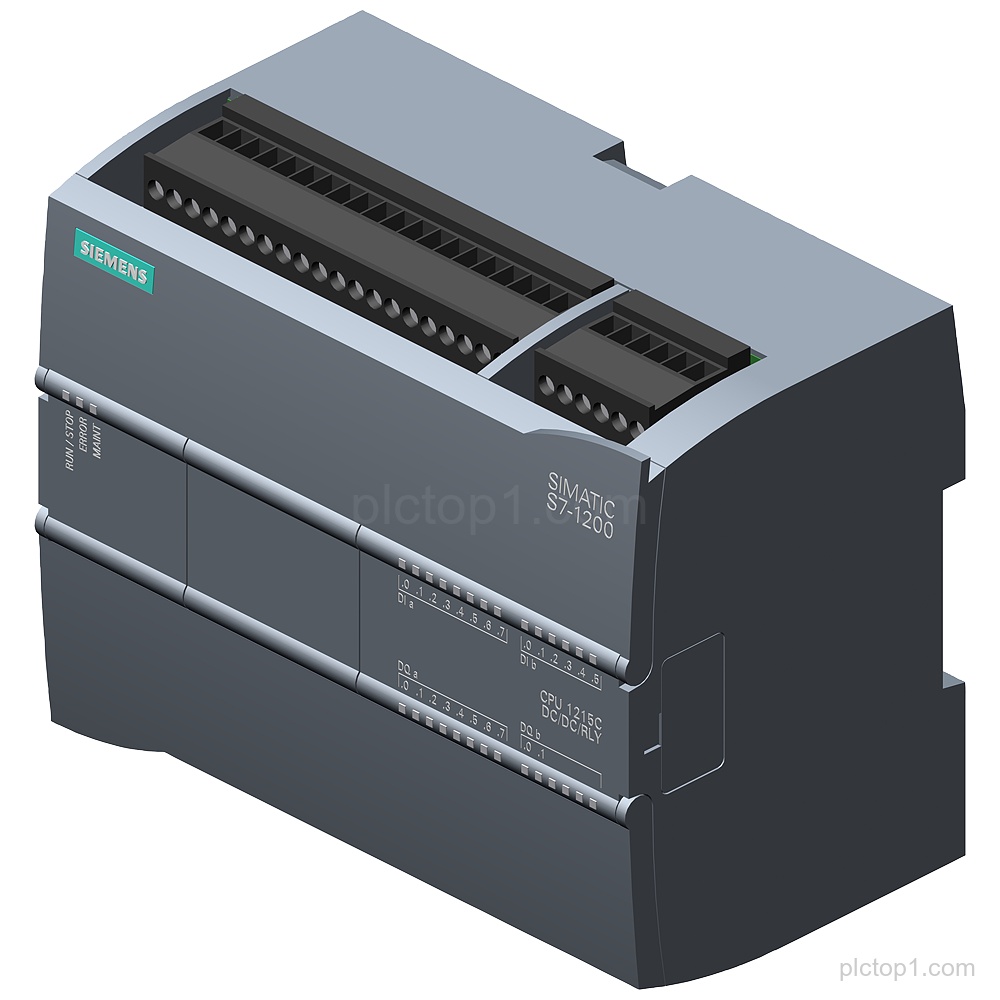

SIPLUS S7-1200 CPU 1215C DC/DC/relay, Part Number 6AG1215-1HG40-4XB0, includes conformal coating, 2 PROFINET ports, and onboard I/O for mixed digital and analog signals.
Detailed Parameters
Conformal coating:Yes
Operating temperature:-20…+60 °C
CPU design:Compact CPU
CPU type:DC/DC/relay
PROFINET ports:2
Onboard I/O – DI:14 DI 24 V DC
Onboard I/O – DQ:10 DQ relay 2 A
Onboard I/O – AI:2 AI 0-10 V DC
Onboard I/O – AQ:2 AQ 0-20 mA DC
Power supply:DC 20.4-28.8 V DC
Program/data memory:125 KB
Based on:6ES7215-1HG40-0XB0
Engineering Context
The SIPLUS S7-1200 CPU 1215C DC/DC/relay provides 2 PROFINET ports for system communication at the CPU level.
Onboard I/O comprises 14 DI 24 V DC, 10 DQ relay 2 A, 2 AI 0-10 V DC, and 2 AQ 0-20 mA DC.
The compact CPU is supplied by DC 20.4-28.8 V DC and is specified for -20…+60 °C with conformal coating.
FAQ
1. What is the product family and designation for Part Number 6AG1215-1HG40-4XB0?
SIPLUS S7-1200 CPU 1215C DC/DC/relay.
2. How many PROFINET ports are available on this CPU?
2 PROFINET ports.
3. What onboard I/O types and counts are specified?
14 DI 24 V DC, 10 DQ relay 2 A, 2 AI 0-10 V DC, and 2 AQ 0-20 mA DC.
4. What operating temperature range is specified?
-20…+60 °C.
5. What power supply range is specified?
DC 20.4-28.8 V DC.
6. What is the specified program/data memory capacity?
125 KB.
