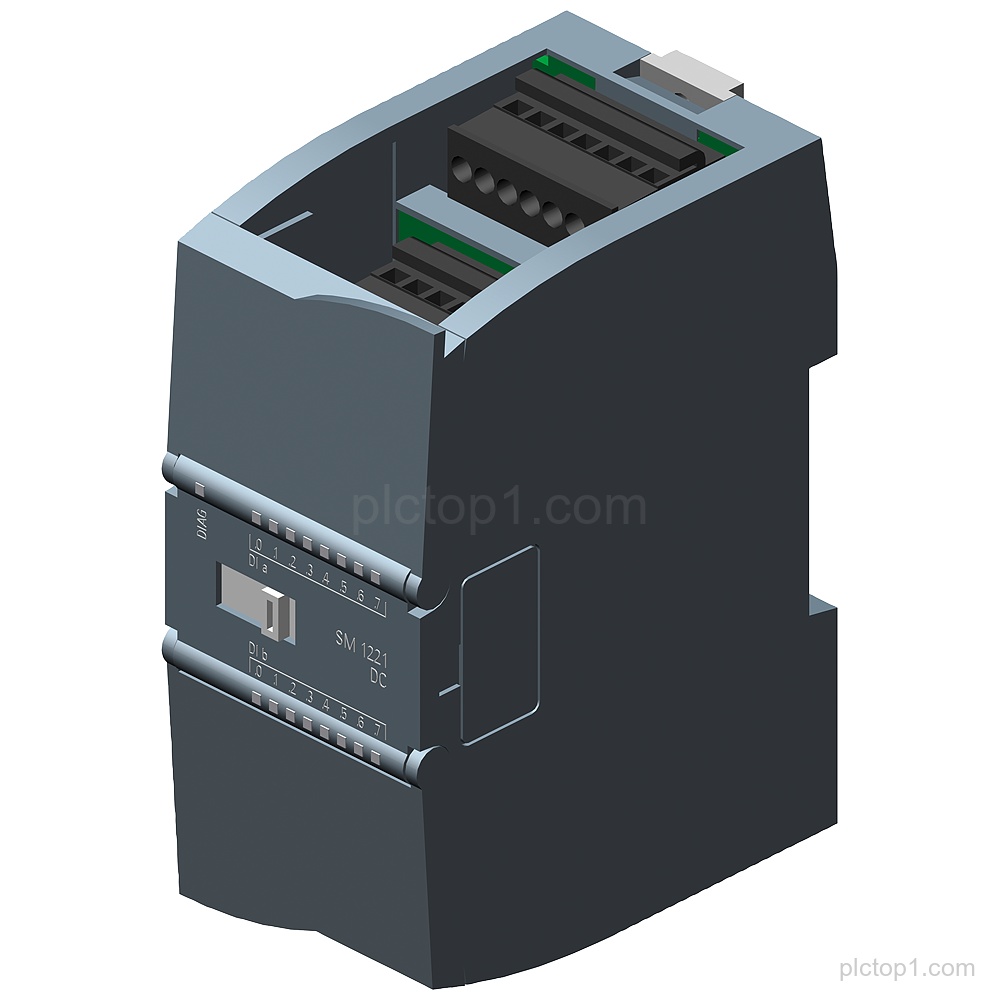

SIPLUS S7-1200 SM 1221 DI with conformal coating; part number 6AG1221-1BH32-4XB0 is configured for 16 DI at 24 V DC sink/source.
Detailed Parameters
Reference base:6ES7221-1BH32-0XB0
Conformal coating:with conformal coating
Temperature range:-20…+60 °C
Number of digital inputs (DI):16 DI
Input voltage:24 V DC
Input type:sink/source
Engineering Context
The module is specified as SIPLUS S7-1200 SM 1221 with 16 digital inputs (DI).
The DI inputs are designed for 24 V DC operation in sink/source configuration.
The module temperature range is specified as -20…+60 °C and includes conformal coating.
FAQ
1. What is the function of 6AG1221-1BH32-4XB0?
It is a SIPLUS S7-1200 SM 1221 DI module providing 16 DI.
2. How many digital inputs does the module provide?
The module provides 16 DI.
3. What input voltage and connection type are specified?
The module is specified for 24 V DC sink/source.
4. What temperature range is specified for the module?
-20…+60 °C.
5. Is conformal coating included?
Yes, it is specified as with conformal coating.
