Product information

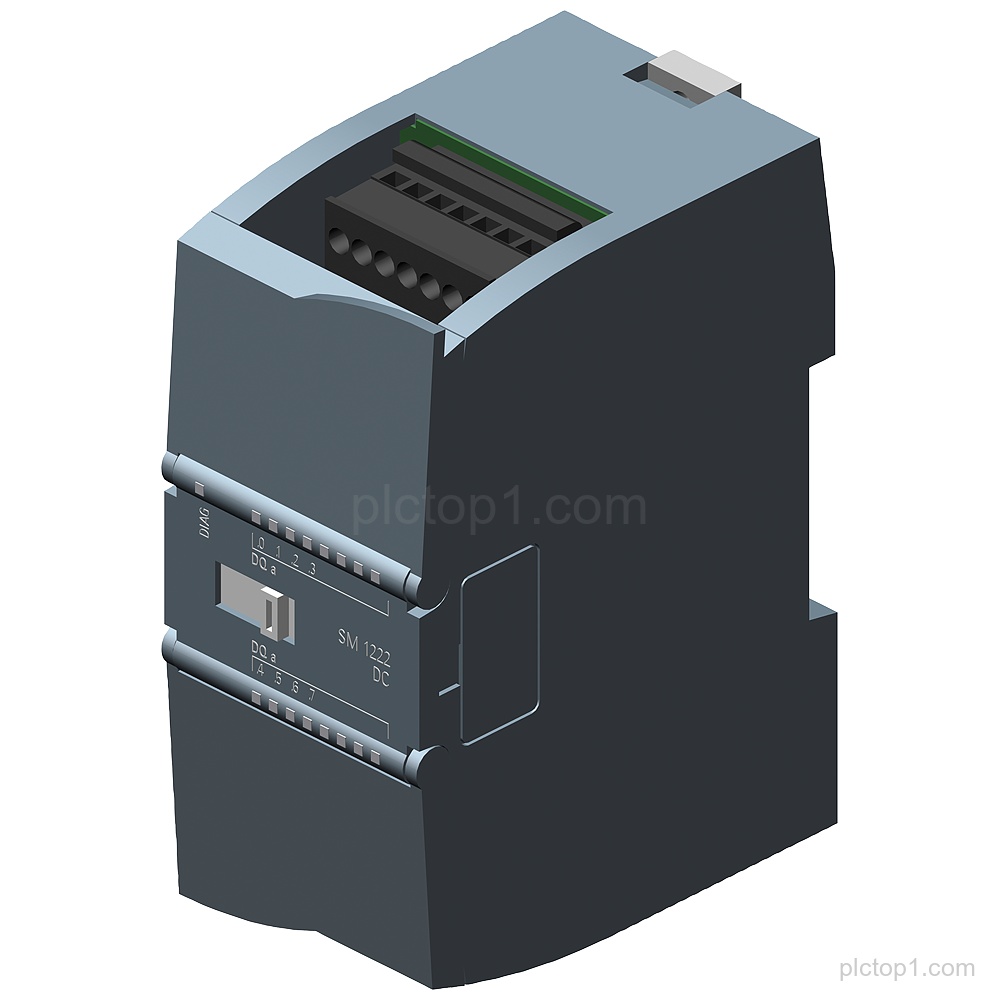

SIPLUS S7-1200 SM 1222 8DQ (Part number: 6AG1222-1BF32-4XB0) is based on 6ES7222-1BF32-0XB0 with conformal coating for digital output.
Detailed Parameters
Conformal coating:with conformal coating
Ambient temperature:-20…+60 °C
Digital output:8 DQ
Output voltage:24 V DC
Output type:transistor
Output current:0.5 A
Based on:6ES7222-1BF32-0XB0
Engineering Context
The module provides 8 DQ digital output signals for transistor outputs.
The output voltage is specified as 24 V DC with a transistor output current of 0.5 A.
The module is designed for operation over an ambient temperature range of -20…+60 °C and includes conformal coating.
FAQ
1. What Siemens product family and module designation does 6AG1222-1BF32-4XB0 belong to?
6AG1222-1BF32-4XB0 belongs to SIPLUS S7-1200 SM 1222 8DQ.
2. How many digital output channels does SM 1222 8DQ provide?
It provides digital output 8 DQ.
3. What output voltage and output type are specified for this module?
The module specifies 24 V DC and transistor output type.
4. What is the specified output current for the transistor outputs?
The specified transistor output current is 0.5 A.
5. What is the ambient temperature range?
The specified ambient temperature range is -20…+60 °C.
6. Is conformal coating included?
Yes, it is based on 6ES7222-1BF32-0XB0 with conformal coating.
