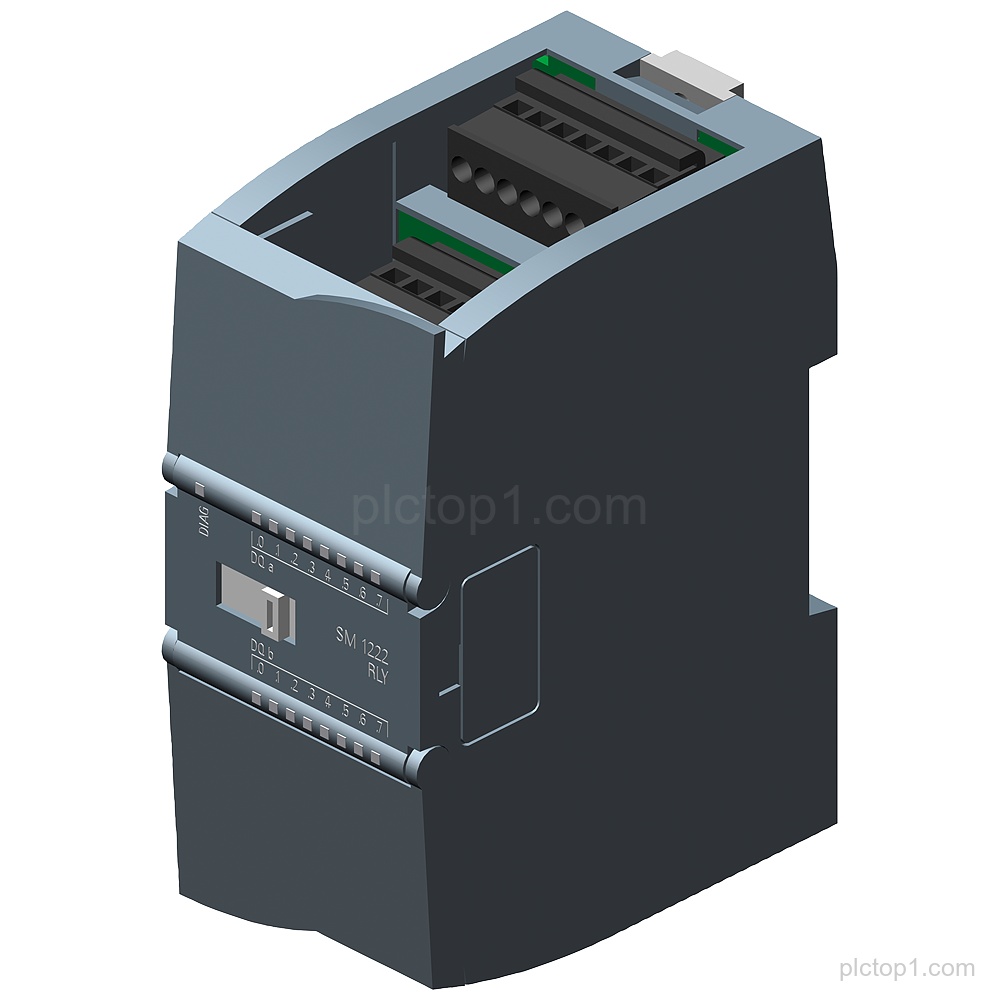

SIPLUS S7-1200 SM 1222 digital output relay module (Part Number: 6AG1222-1HH32-2XB0) based on 6ES7222-1HH32-0XB0 with conformal coating for operation in the specified temperature range.
Detailed Parameters
Based on:6ES7222-1HH32-0XB0
Conformal coating:Yes
Operating temperature:-40…+70 °C
Start up temperature:-25 °C
Output type:digital output 16 DQ
Channel count:16
Relay rating:2 A
Engineering Context
SIPLUS S7-1200 SM 1222 provides digital output functionality using relay outputs.
The module is based on 6ES7222-1HH32-0XB0 and includes conformal coating.
The specified temperature range is -40…+70 °C with a start up temperature of -25 °C.
FAQ
1. What is the product family and module designation for 6AG1222-1HH32-2XB0?
SIPLUS S7-1200 SM 1222 relay digital output module.
2. What is the basis for 6AG1222-1HH32-2XB0?
It is based on 6ES7222-1HH32-0XB0.
3. How many digital output channels are provided?
Digital output 16 DQ (16 channels).
4. What output technology is used?
Relay outputs.
5. What is the relay rating?
2 A.
6. What temperature conditions are specified for operation and start up?
Operating temperature -40…+70 °C and start up -25 °C.
7. Is conformal coating included?
Yes.
