Ordering this product
Check the full part number and required version against your equipment. Add any electrical or connection requirements when contacting us.
Product information

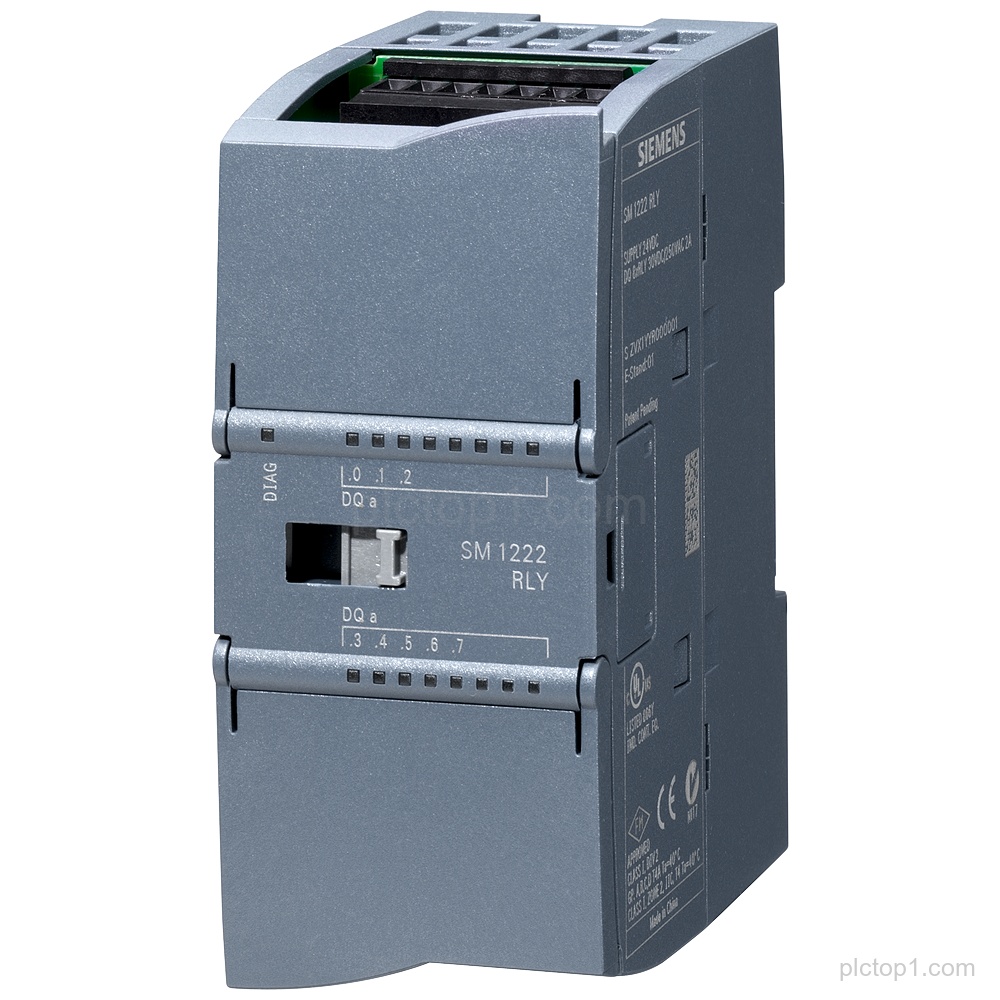

SIPLUS S7-1200 SM 1222 digital output module 6AG1222-1XF32-4XB0 based on 6ES7222-1XF32-0XB0 with conformal coating, designed for operation in -20…+60 °C.
Detailed Parameters
Product family:SIPLUS S7-1200
Module:SM 1222 8DQ
Based on:6ES7222-1XF32-0XB0
Coating:conformal coating
Operating temperature:-20…+60 °C
Output type:digital output SM 1222
Channel count:8 DQ
Contact type:Relay changeover contact
Engineering Context
The module is a SIPLUS S7-1200 SM 1222 digital output based on 6ES7222-1XF32-0XB0.
The SM 1222 provides 8 DQ digital output channels with relay changeover contact.
Conformal coating is specified for this module and it is rated for -20…+60 °C.
FAQ
1. What module family does 6AG1222-1XF32-4XB0 belong to?
6AG1222-1XF32-4XB0 belongs to SIPLUS S7-1200 and is an SM 1222 8DQ module.
2. What is the relay contact type for the outputs?
The module uses Relay changeover contact.
3. How many digital output channels are provided?
The module provides 8 DQ digital output channels.
4. What is the operating temperature range?
The module is specified for -20…+60 °C.
5. Is conformal coating included?
Yes, the module is specified with conformal coating.
6. Which base product is referenced for this module?
It is based on 6ES7222-1XF32-0XB0.
