Product information

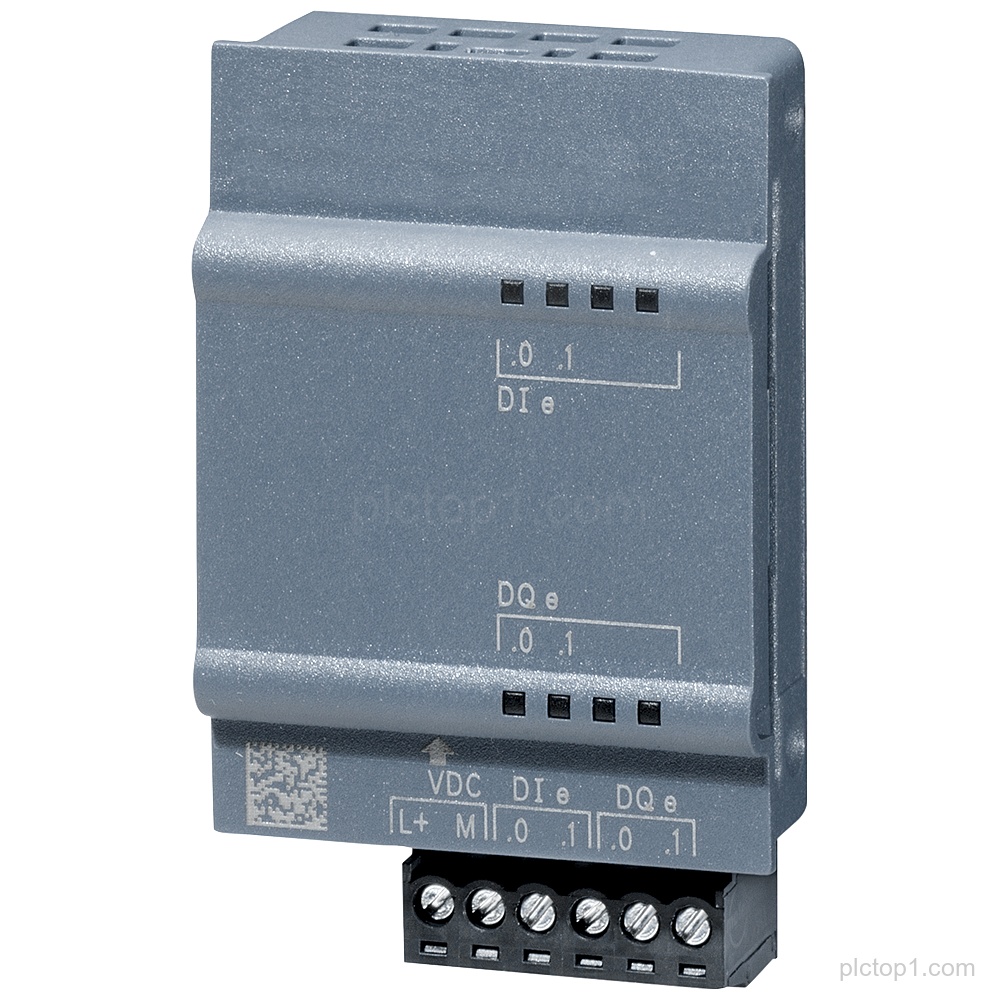

SIPLUS S7-1200 SB 1223 2DI/2DQ based on 6ES7223-0BD30-0XB0; part number 6AG1223-0BD30-5XB0.
Detailed Parameters
Based on:6ES7223-0BD30-0XB0
Protection / Coating:conformal coating
Ambient temperature range:-40…+60 °C
Start up temperature:-25 °C
Digital inputs:2 DI 24 V DC
Digital outputs:2 DQ 24 V DC
Engineering Context
The module provides digital input/output functionality in the SIPLUS S7-1200 SB 1223 2DI/2DQ configuration.
It is based on 6ES7223-0BD30-0XB0 and uses conformal coating.
The specified operation range is -40…+60 °C with start up down to -25 °C.
FAQ
1. What is the module type for part number 6AG1223-0BD30-5XB0?
SIPLUS S7-1200 SB 1223 2DI/2DQ.
2. How many digital inputs and outputs are provided?
2 DI and 2 DQ.
3. What are the digital signal voltage ratings?
2 DI 24 V DC / 2 DQ 24 V DC.
4. What is the operating temperature range?
-40…+60 °C.
5. What is the start up temperature rating?
-25 °C.
6. Is conformal coating included?
Yes, it is based on 6ES7223-0BD30-0XB0 with conformal coating.
