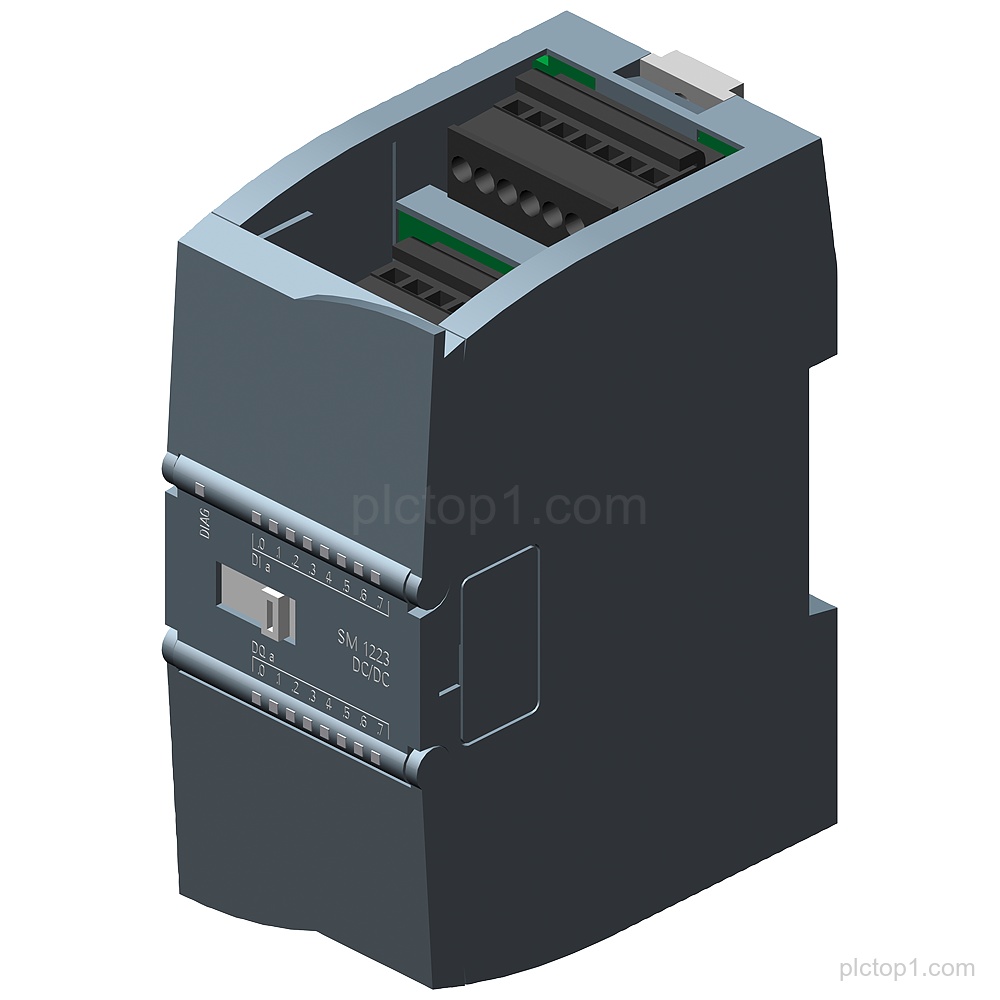

SIPLUS S7-1200 SM 1223 with part number 6AG1223-1BH32-4XB0 for digital input/output 8 DI/8 DQ based on 6ES7223-1BH32-0XB0 with conformal coating.
Detailed Parameters
Base product:6ES7223-1BH32-0XB0
Conformal coating:Yes
Operating temperature:-20…+60 °C
Signal type:Digital input/output
Channel count:8 DI/8 DQ
Digital input:8 DI, 24 V DC
Input wiring:sink/source
Digital output:8 DQ
Output type:transistor
Output current:0.5 A
Engineering Context
The module provides digital input/output with 8 DI/8 DQ channel configuration.
Inputs are specified as 8 DI, 24 V DC with sink/source.
Outputs are specified as 8 DQ, transistor outputs with 0.5 A.
