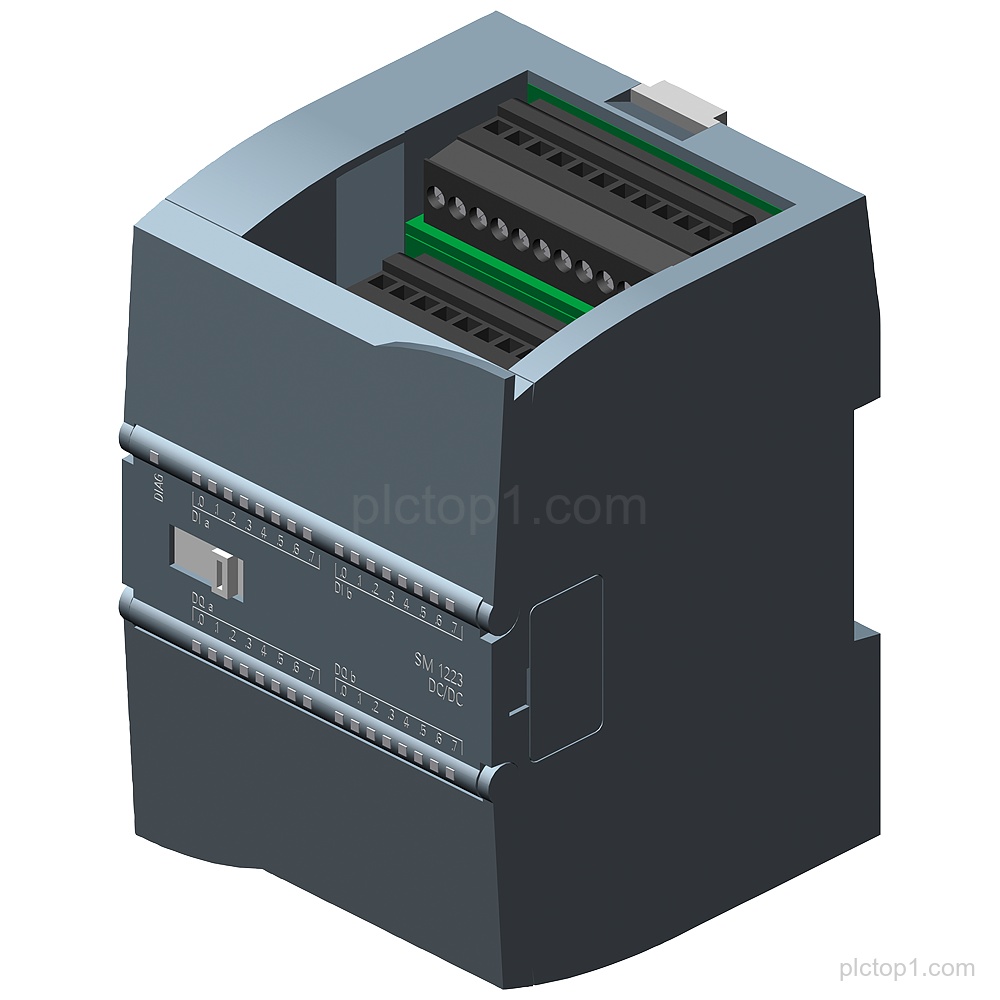

SIPLUS S7-1200 SM 1223 16DI/16DQ, part number 6AG1223-1BL32-4XB0, is based on 6ES7223-1BL32-0XB0 and offers digital input/output with conformal coating.
Detailed Parameters
Module designation:SM 1223 16DI/16DQ
Conformal coating:with conformal coating
Operating temperature:-20…+60 °C
Digital channels:digital input/output 16 DI/16 DQ
Digital inputs:16 DI, 24 V DC
Input type:sink/source
Digital outputs:16 DQ
Output type:transistor
Max output current:0.5 A
Based on:6ES7223-1BL32-0XB0
Engineering Context
The SM 1223 16DI/16DQ module provides digital input/output with 16 DI and 16 DQ channels.
The inputs are specified as 16 DI with 24 V DC using sink/source wiring.
The outputs are specified as 16 DQ transistor outputs with 0.5 A.
