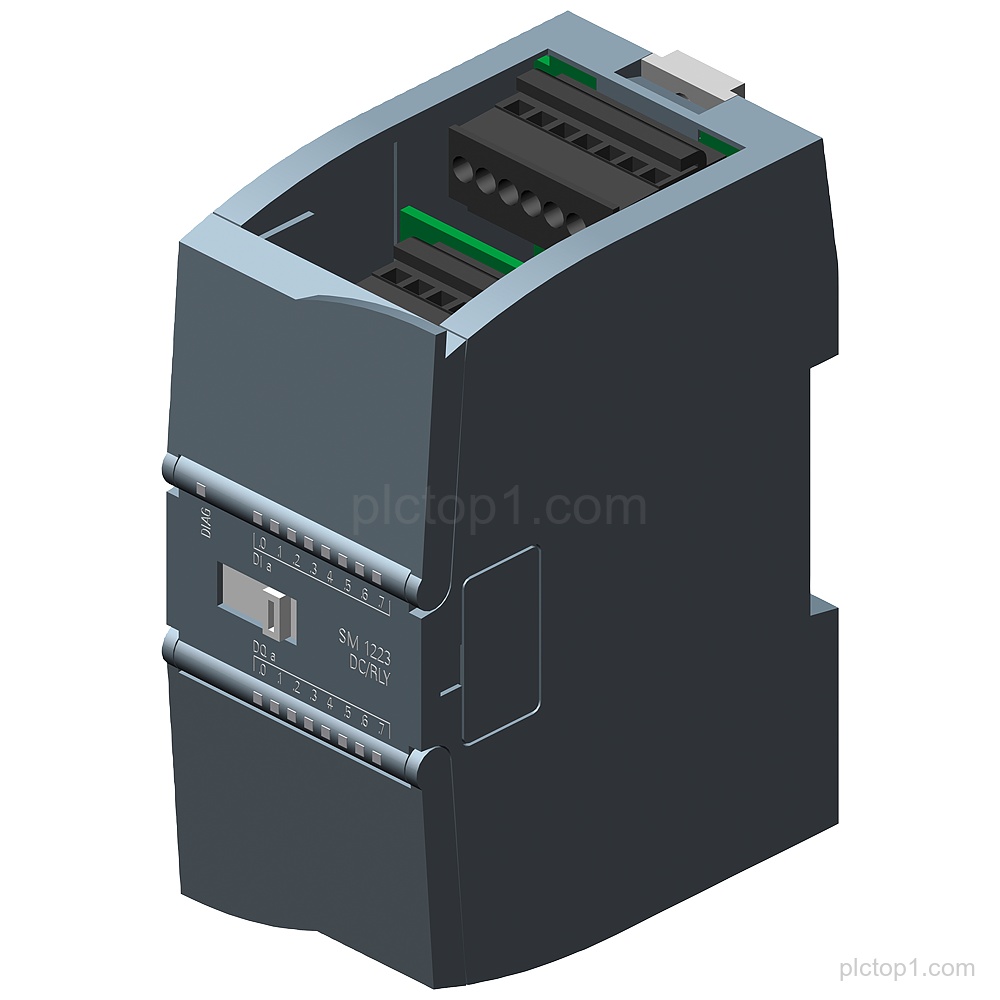

SIPLUS S7-1200 SM 1223 relay based digital input/output module, part number 6AG1223-1PH32-2XB0, with conformal coating.
Detailed Parameters
Operating temperature:-40…+70 °C
Start-up temperature:-25 °C
Conformal coating:with conformal coating
Digital input/output:8 DI/8 DQ
Digital inputs:8 DI
Digital input voltage:8 DI 24 V DC
Digital input type:sink/source
Digital outputs:8 DQ
Digital output type:relay
Relay output current:2 A
Based on:6ES7223-1PH32-0XB0
Engineering Context
SIPLUS S7-1200 SM 1223 provides digital input/output with 8 DI and 8 DQ.
The module is relay-based for the 8 DQ outputs with a relay output current of 2 A.
Conformal coating and the specified operating range support use across -40…+70 °C with start-up at -25 °C.
