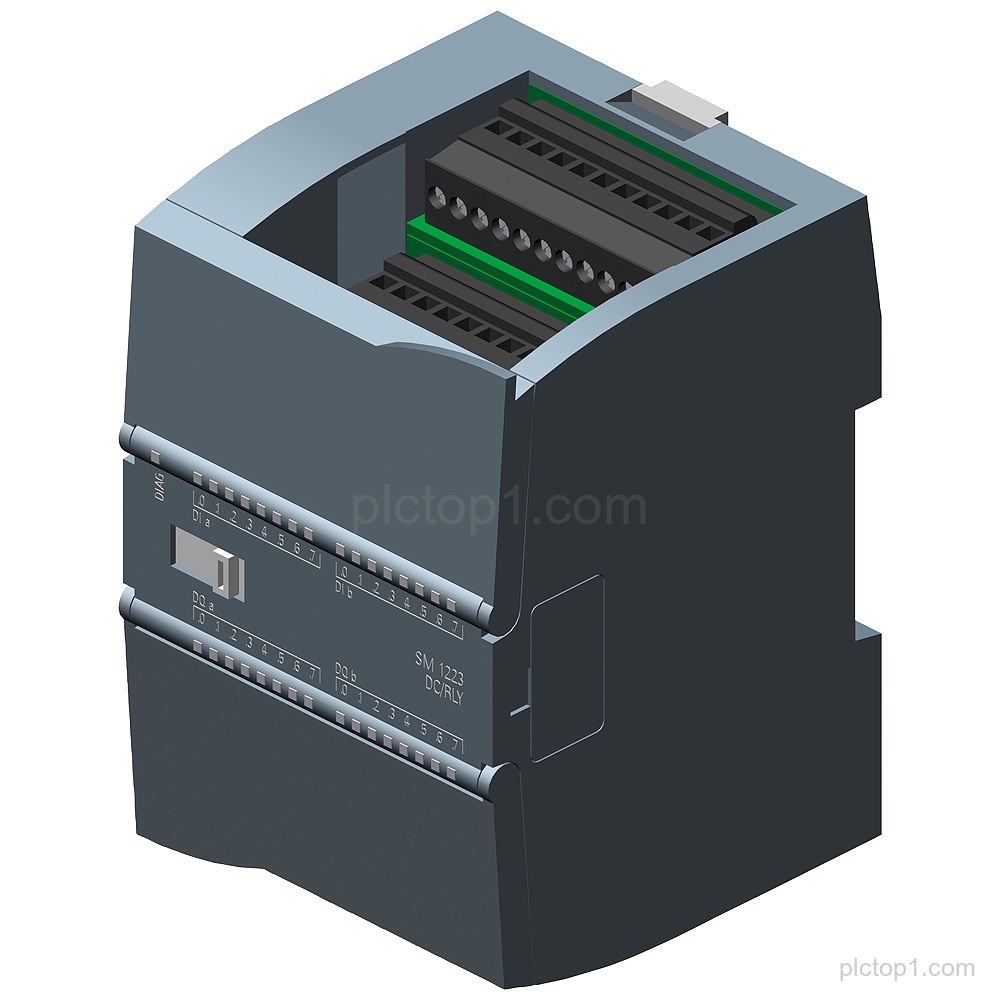

SIPLUS S7-1200 SM 1223 16DI/16DQ RLY with part number 6AG1223-1PL32-4XB0 is based on 6ES7223-1PL32-0XB0 with conformal coating and is rated for -20…+60 °C.
Detailed Parameters
Based on:6ES7223-1PL32-0XB0
Conformal coating:Yes
Temperature range:-20…+60 °C
Digital input/output channels:16 DI/16 DQ
Digital input count:16 DI
Digital input voltage:24 V DC
Digital input type:sink/source
Digital output count:16 DQ
Digital output type:relay
Relay output current:2 A
Engineering Context
The SIPLUS S7-1200 SM 1223 16DI/16DQ RLY provides 16 digital inputs and 16 digital outputs using relay switching.
The module is based on 6ES7223-1PL32-0XB0 and includes conformal coating.
Use the module within the specified -20…+60 °C operating temperature range.
FAQ
1. What module type and channel count are included in 6AG1223-1PL32-4XB0?
6AG1223-1PL32-4XB0 is a SIPLUS S7-1200 SM 1223 16DI/16DQ RLY module with 16 digital inputs and 16 digital outputs.
2. What is the digital input voltage and type for 6AG1223-1PL32-4XB0?
The module has 16 DI with 24 V DC and sink/source input type.
3. What is the digital output type and rated relay current for 6AG1223-1PL32-4XB0?
The module provides 16 DQ with relay outputs rated at 2 A.
4. What are the temperature limits for operation of 6AG1223-1PL32-4XB0?
The specified temperature range is -20…+60 °C.
5. Is 6AG1223-1PL32-4XB0 based on 6ES7223-1PL32-0XB0 and does it include conformal coating?
Yes. It is based on 6ES7223-1PL32-0XB0 and is provided with conformal coating.
