Product information

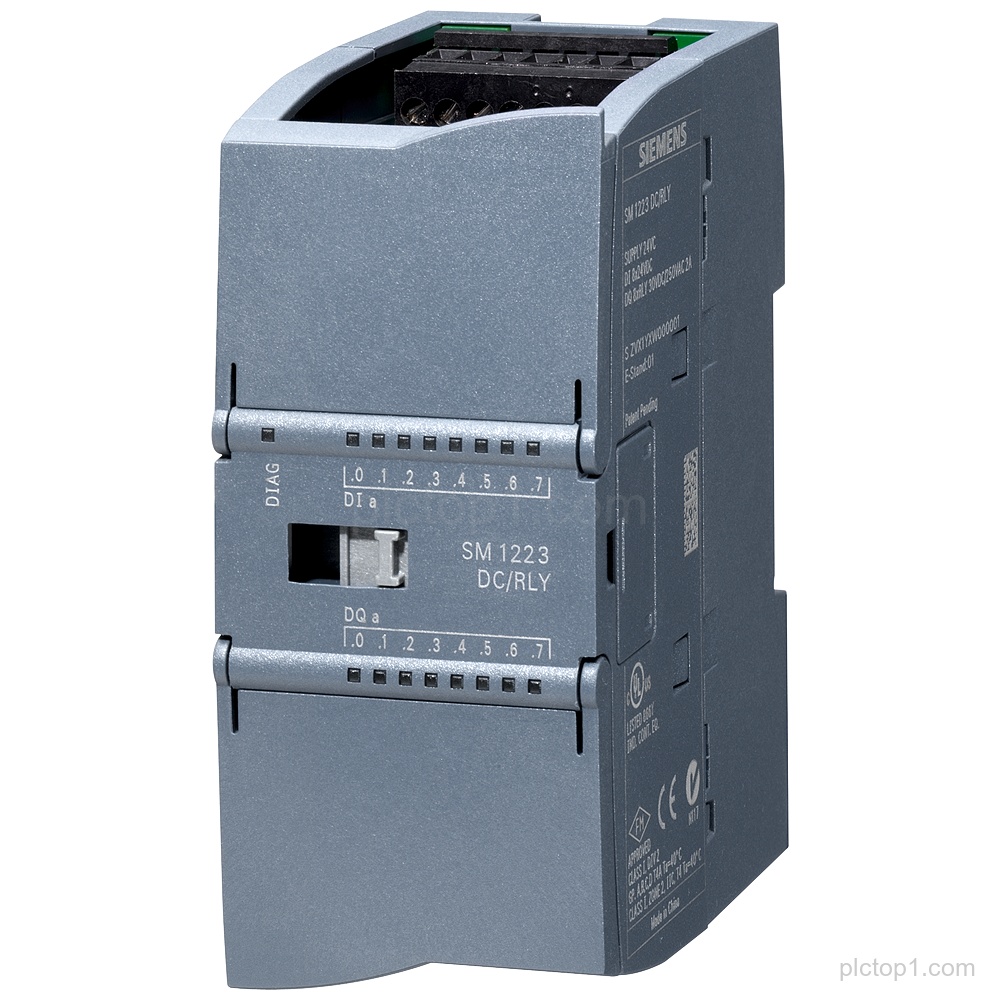

SIMATIC S7-1200 SM 1223 (part number 6AG1223-1QH32-2XB0) is based on 6ES7223-1QH32-0XB0 with conformal coating for digital inputs/ output SM 1223 operation.
Detailed Parameters
Product family:SIMATIC S7-1200
Module type:digital inputs/ output SM 1223
DI channels:8 DI
DQ channels:8 DQ
Output type:RLY
Input voltage:8 DI 120/230 V AC
Output current:8 DQ relay 2 A
Based on:6ES7223-1QH32-0XB0
Coating:conformal coating
Ambient operating temperature:-40…+70 °C
Start-up temperature:start up -25 °C
Engineering Context
SM 1223 is a SIMATIC S7-1200 digital inputs/ output module that provides 8 DI and 8 DQ using relay outputs.
The module is based on 6ES7223-1QH32-0XB0 and includes conformal coating.
The provided temperature range is -40…+70 °C with a start-up temperature of -25 °C.
FAQ
1. What module family does 6AG1223-1QH32-2XB0 belong to?
6AG1223-1QH32-2XB0 is assigned to SIMATIC S7-1200.
2. How many digital inputs and digital outputs are available on SM 1223?
The module provides 8 DI and 8 DQ.
3. What type and rating are the digital outputs?
The digital outputs are relay outputs (RLY) with 8 DQ relay 2 A.
4. What is the input voltage range for the digital inputs as stated?
The module is specified as 8 DI 120/230 V AC.
5. What temperature range is specified for operation and start-up?
Ambient operating temperature is -40…+70 °C, and start-up temperature is -25 °C.
6. On which base module is 6AG1223-1QH32-2XB0 based?
It is based on 6ES7223-1QH32-0XB0.
