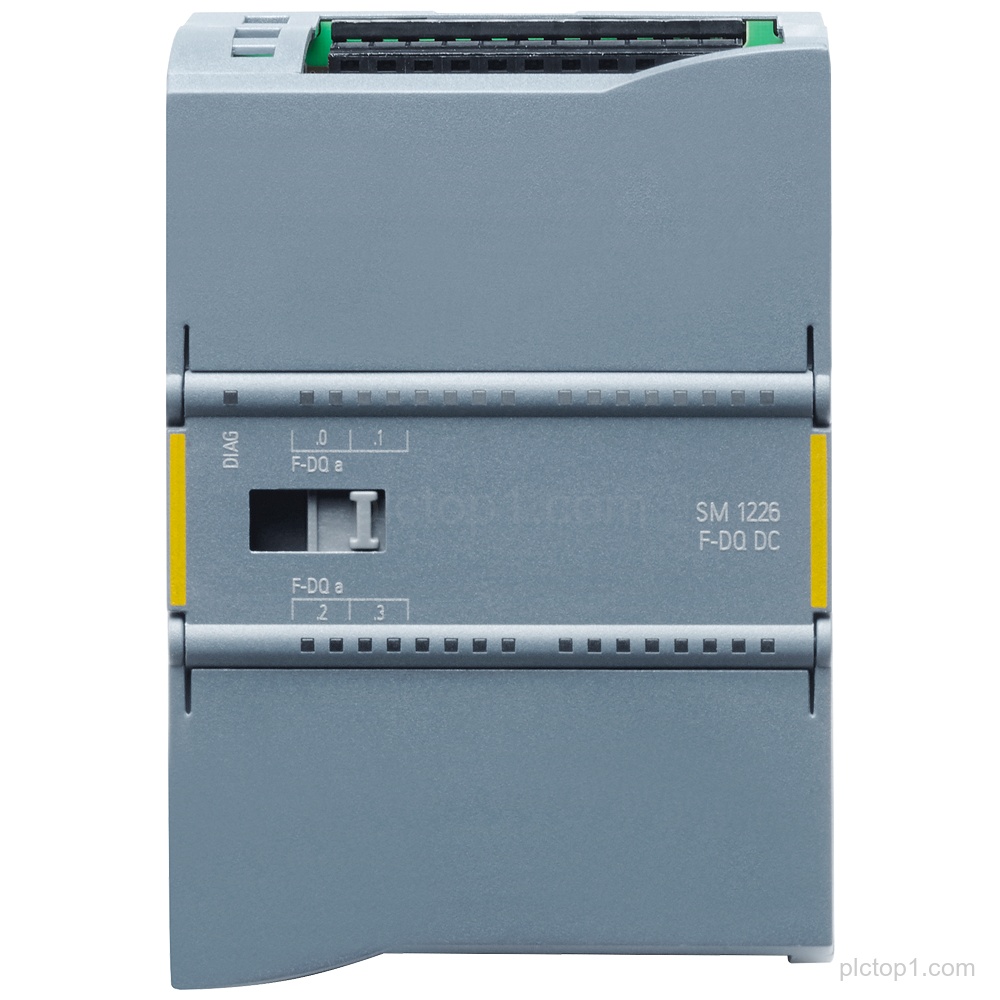

SIPLUS S7-1200 SM 1226 F-DQ (Part number: 6AG1226-6DA32-5XB0) is based on 6ES7226-6DA32-0XB0 with conformal coating and supports PROFIsafe safety functions.
Detailed Parameters
Based on:6ES7226-6DA32-0XB0
Conformal coating:Yes
Operating temperature:-25…+55 °C
Module designation:SM 1226 F-DQ
Output type:F-DQ
Number of channels:4
Output voltage:DC 24V
Output current:2 A
Functional safety:PROFIsafe
Safety level:up to PL e (ISO 13849-1) / SIL3 (IEC 61508)
Width:70 mm
Engineering Context
SM 1226 F-DQ provides 4x DC 24V outputs within the specified operating temperature range (-25…+55 °C).
The module is based on 6ES7226-6DA32-0XB0 and is equipped with conformal coating.
PROFIsafe safety characteristics are specified up to PL e (ISO 13849-1) and SIL3 (IEC 61508).
FAQ
1. What is the product family and module designation for part number 6AG1226-6DA32-5XB0?
SIPLUS S7-1200 SM 1226 F-DQ.
2. Is the module based on 6ES7226-6DA32-0XB0?
Yes, it is based on 6ES7226-6DA32-0XB0.
3. How many output channels does the SM 1226 F-DQ provide and what is the output type?
It provides F-DQ 4x DC 24V outputs.
4. What output current is specified for the 4x DC 24V outputs?
F-DQ 4x DC 24V 2A.
5. Which functional safety technology is specified for this module?
PROFIsafe.
6. What safety level is stated for the module?
Up to PL e (ISO 13849-1) / SIL3 (IEC 61508).
7. What operating temperature range and width are specified?
Operating temperature: -25…+55 °C; width: 70 mm.
