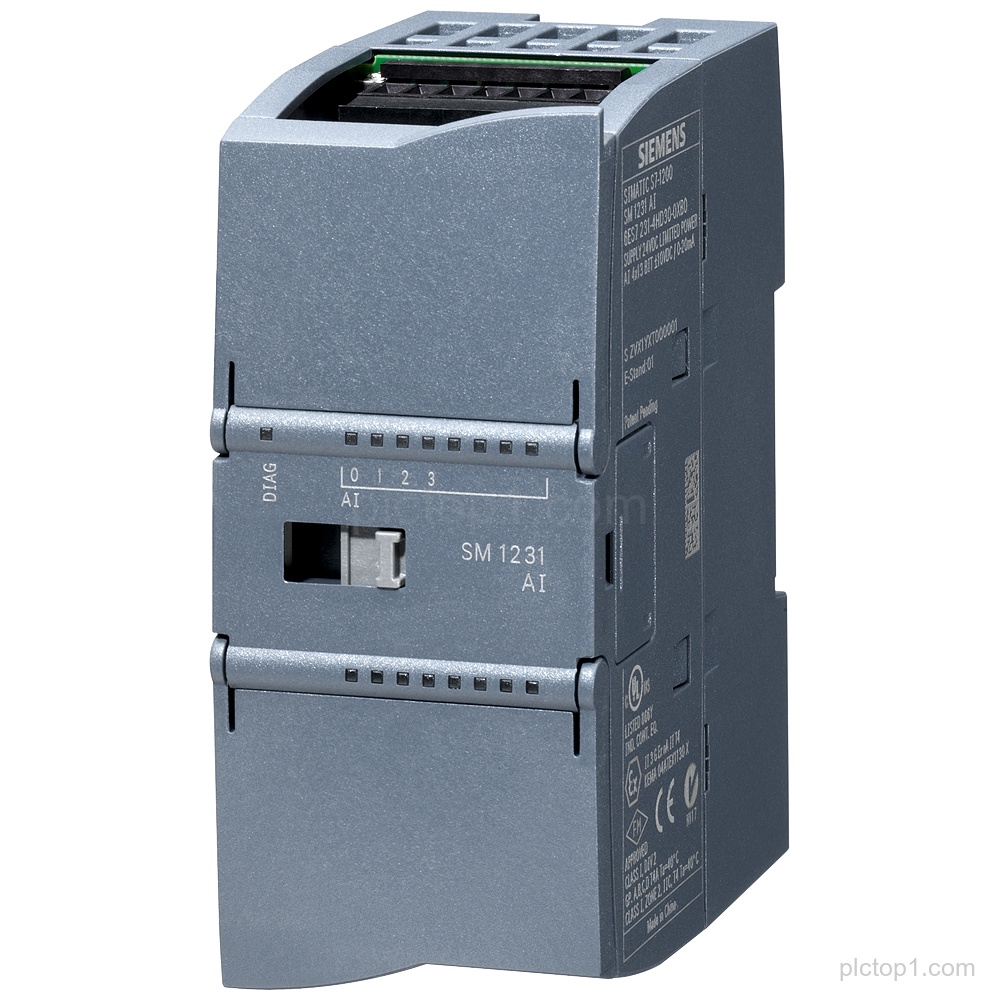

SIPLUS S7-1200 SM 1231 analog input module, part number 6AG1231-5ND32-4XB0, based on 6ES7231-5ND32-0XB0 with conformal coating for use over -20…+60 °C.
Detailed Parameters
Product family / designation:SIPLUS S7-1200 SM 1231
Based on:6ES7231-5ND32-0XB0
Conformal coating:Yes
Operating temperature:-20…+60 °C
Signal type:Analog input
Channel count:4 AI
Input ranges:+/-10 V, +/-5 V, +/-2.5 V, +/-1.25 or 0-20 mA/4-20 mA
Resolution:15 bit+sign bit
Engineering Context
Use SIPLUS S7-1200 SM 1231 as an analog input module with 4 AI channels.
The module supports voltage ranges (+/-10 V, +/-5 V, +/-2.5 V, +/-1.25) and current ranges (0-20 mA/4-20 mA) and provides 15 bit+sign bit resolution.
With conformal coating, the module is specified for operation over -20…+60 °C.
