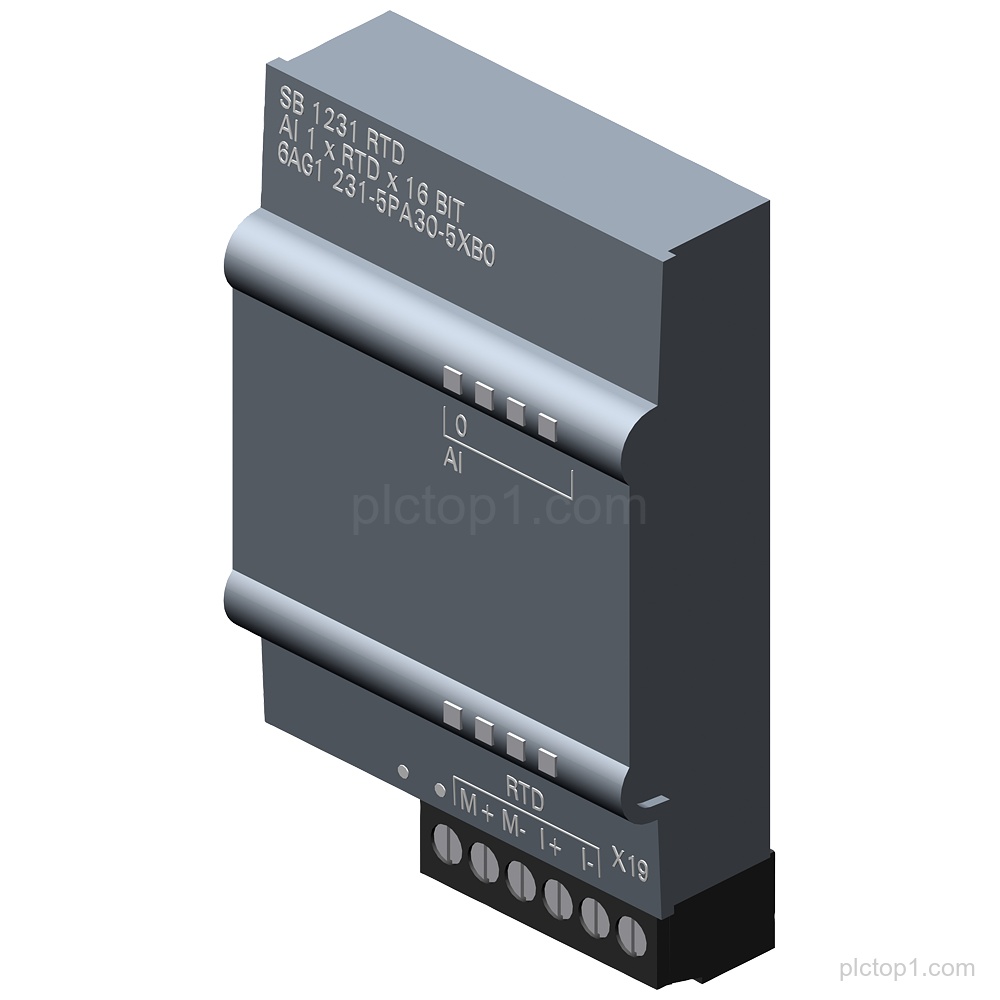

SIPLUS S7-1200 SB 1231 with part number 6AG1231-5PA30-5XB0 is an analog input module (SB 1231RTD) for 1 AI RTD using Pt100 and Pt1000, with conformal coating.
Detailed Parameters
Product family:SIPLUS S7-1200
Base designation:SB 1231
Module type:analog input
Module designation:SB 1231RTD
Channel count:1 AI RTD
Sensor type:Pt100 and Pt1000
Conformal coating:with conformal coating
Ambient temperature:-40…+60 °C
Start-up temperature:-25 °C
Based on:6ES7231-5PA30-0XB0
Engineering Context
SB 1231RTD is configured as an analog input module for 1 AI RTD with Pt100 and Pt1000 sensor types.
The module includes conformal coating as stated in the product information.
The specified operating range is -40…+60 °C with start up -25 °C.
FAQ
1. What module designation corresponds to part number 6AG1231-5PA30-5XB0?
The product information names the module designation as SB 1231RTD.
2. How many RTD analog input channels does SB 1231RTD provide?
SB 1231RTD provides 1 AI RTD.
3. Which RTD sensor types are specified for this module?
The module is specified for Pt100 and Pt1000.
4. Does SB 1231RTD include conformal coating?
Yes, the product information specifies ‘with conformal coating’.
5. What temperature range is specified for operation and start-up?
The specified ambient temperature is -40…+60 °C and start up is -25 °C.
6. On which base designation is this product based?
The product information states it is based on 6ES7231-5PA30-0XB0.
