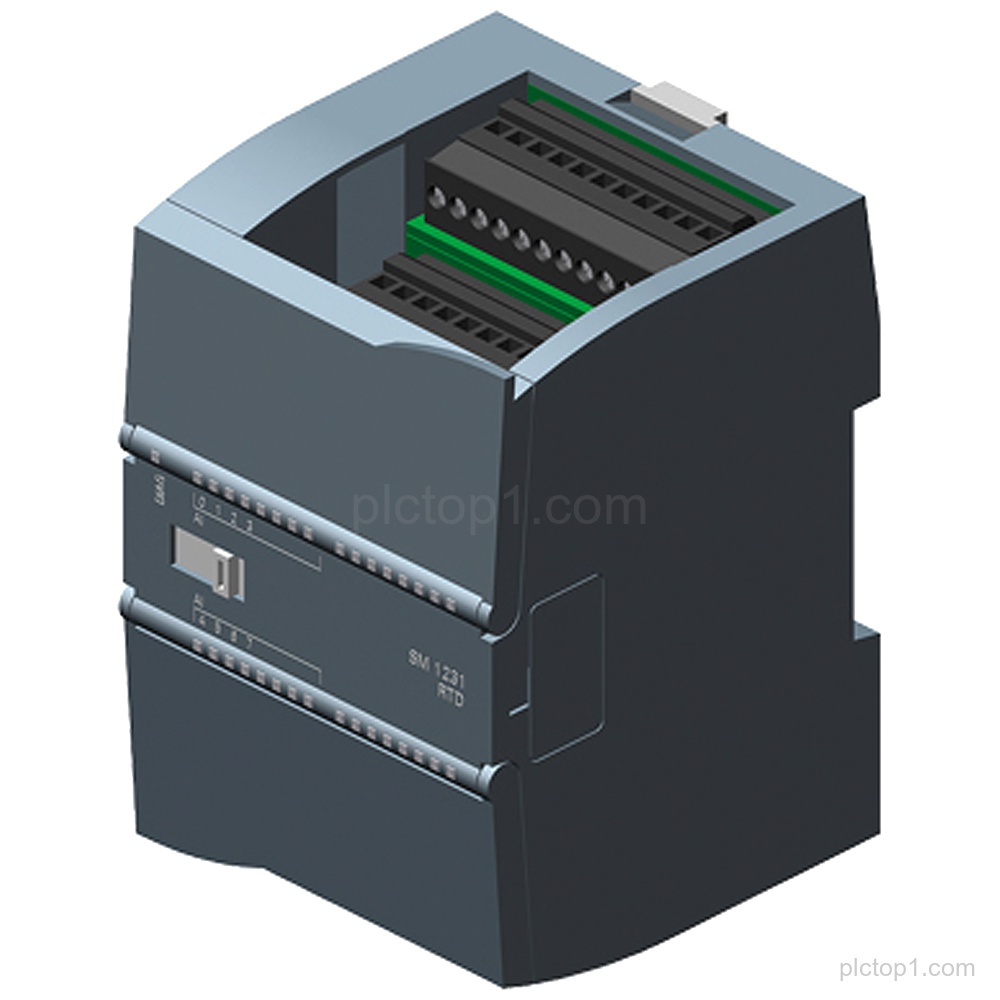

SIPLUS S7-1200 SM 1231 RTD 8AI analog input module, part number 6AG1231-5PF32-2XB0.
Detailed Parameters
Based on:6ES7231-5PF32-0XB0
Conformal coating:Yes
Temperature range:-40…+70 °C
Start-up temperature:-25 °C
Signal type:Analog input
Module type:SM 1231 RTD
Channel count:8xAI
Designation:RTD 8AI
Engineering Context
Use SM 1231 RTD to implement analog input acquisition for RTD signals with 8xAI channels.
The module 6AG1231-5PF32-2XB0 is based on 6ES7231-5PF32-0XB0 and includes conformal coating.
The specified temperature range for operation is -40…+70 °C with a start-up temperature of -25 °C.
FAQ
1. What is the module type for 6AG1231-5PF32-2XB0?
SM 1231 RTD.
2. How many analog input channels does the RTD module provide?
8xAI RTD (RTD 8AI).
3. What signal type is supported by this SM 1231 RTD module?
Analog input.
4. Is conformal coating included?
Yes.
5. What temperature range is specified for the module?
-40…+70 °C.
6. What start-up temperature is specified?
-25 °C.
7. What is the reference design of this module?
Based on 6ES7231-5PF32-0XB0.
