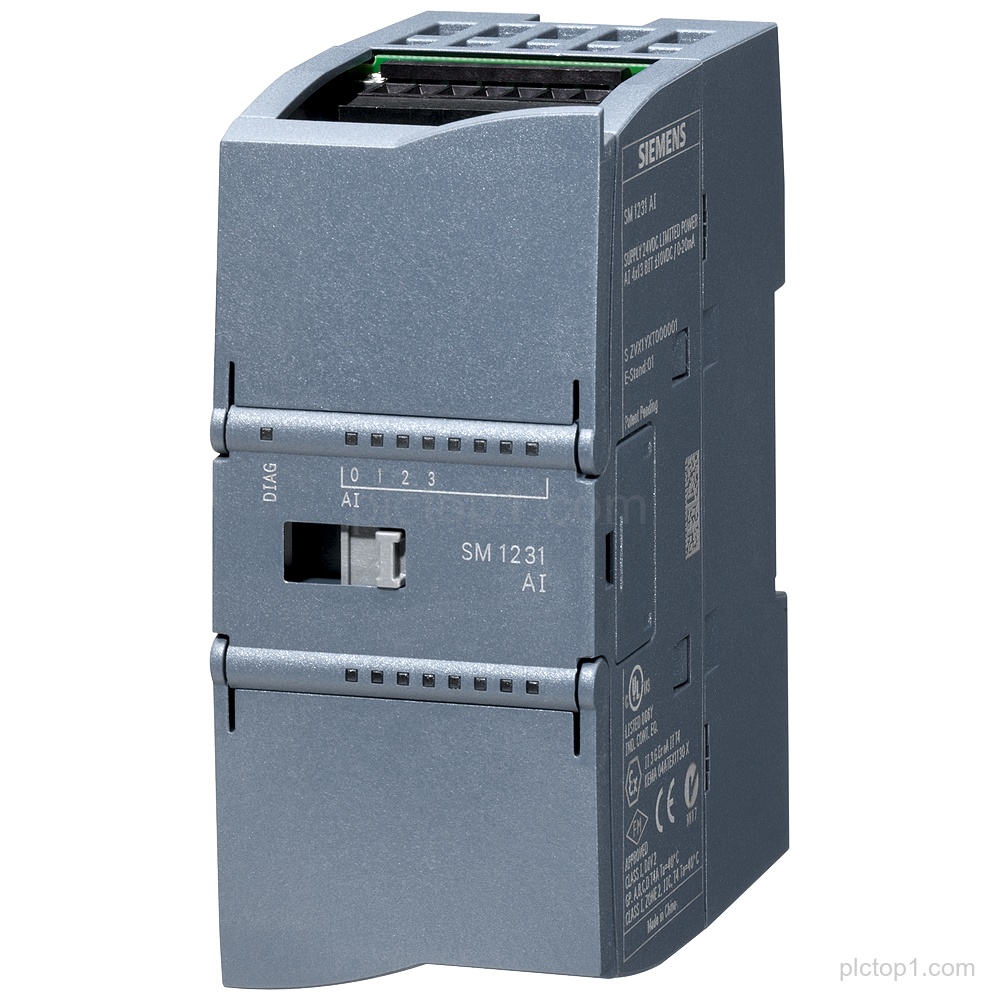

SIPLUS S7-1200 SM 1231 TC (6AG1231-5QD32-4XB0) is based on 6ES7231-5QD32-0XB0 and includes conformal coating for analog input with 4 AI thermocouples.
Detailed Parameters
Part number:6AG1231-5QD32-4XB0
Product family:SIPLUS S7-1200
Module designation:SM 1231 TC
Base designation:6ES7231-5QD32-0XB0
Coating:conformal coating
Ambient temperature:-20…+60 °C
Input type:analog input
Number of AI channels:4
Thermocouple type:thermocouples
Engineering Context
SM 1231 TC is an analog input module configured for thermocouples with 4 AI channels.
The module is provided based on 6ES7231-5QD32-0XB0 and includes conformal coating.
SM 1231 TC is specified for an ambient temperature range of -20…+60 °C.
FAQ
1. What is the module designation for part number 6AG1231-5QD32-4XB0?
The module designation is SIPLUS S7-1200 SM 1231 TC.
2. What is the base designation this module is based on?
It is based on 6ES7231-5QD32-0XB0.
3. Does 6AG1231-5QD32-4XB0 support analog input?
Yes, it is specified as analog input.
4. How many AI channels are available on this module?
It provides 4 AI thermocouples.
5. What coating is specified for 6AG1231-5QD32-4XB0?
It has conformal coating.
6. What ambient temperature range is specified?
-20…+60 °C.
