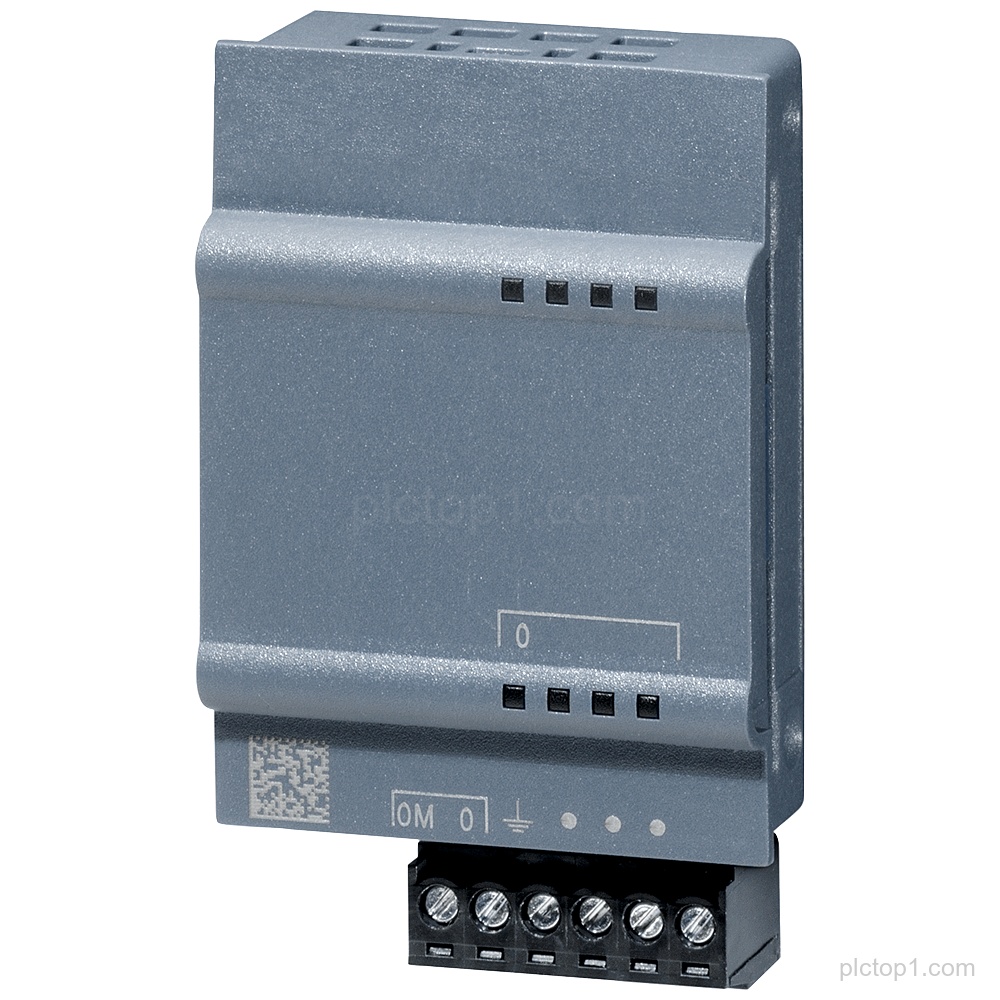

SIPLUS S7-1200 SB 1232 1AQ (part number 6AG1232-4HA30-4XB0) is based on 6ES7232-4HA30-0XB0 with conformal coating and is specified for -20…+60 °C operation, offering 1 analog output channel.
Detailed Parameters
Based on:6ES7232-4HA30-0XB0
Conformal coating:Yes
Operating temperature:-20…+60 °C
Output channels:1 AQ
Analog output range:+/-10 V DC (12 bit resolution) or 0-20 mA (11 bit resolution)
Engineering Context
SIPLUS S7-1200 SB 1232 1AQ uses conformal coating and is based on 6ES7232-4HA30-0XB0 for the specified operating temperature range.
The product provides 1 analog output channel with selectable scaling of +/-10 V DC or 0-20 mA.
Analog output resolution is specified as 12 bit for +/-10 V DC and 11 bit for 0-20 mA.
FAQ
1. What is the product family and designation for 6AG1232-4HA30-4XB0?
SIPLUS S7-1200 SB 1232 1AQ.
2. Is conformal coating included in 6AG1232-4HA30-4XB0?
Yes, it is based on 6ES7232-4HA30-0XB0 with conformal coating.
3. What operating temperature range is specified?
-20…+60 °C.
4. How many analog output channels are provided?
1 AQ.
5. What analog output types and resolutions are specified?
+/-10 V DC (12 bit resolution) or 0-20 mA (11 bit resolution).
