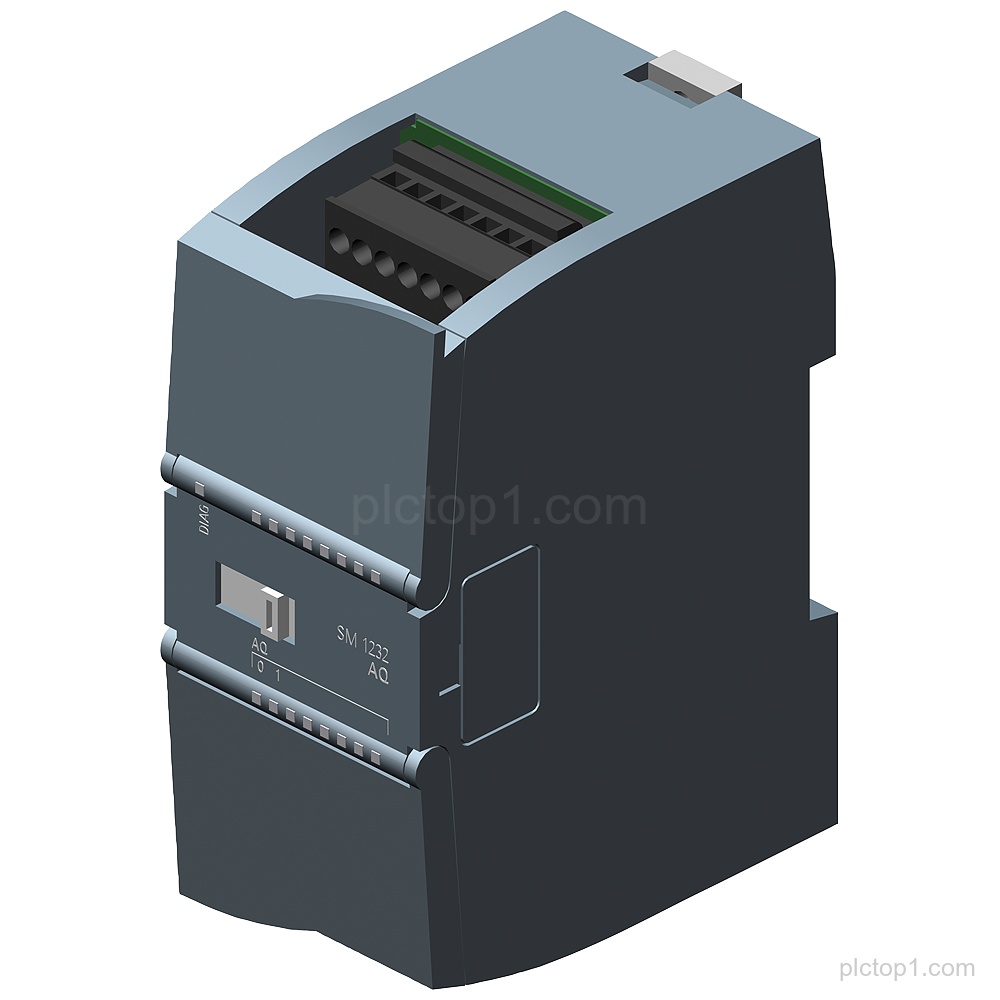

SIPLUS S7-1200 SM 1232 2AQ for part number 6AG1232-4HB32-4XB0 based on 6ES7232-4HB32-0XB0 with conformal coating for analog outputs in the range -20…+60 °C.
Detailed Parameters
Product type:SIPLUS S7-1200 SM 1232 2AQ
Based on:6ES7232-4HB32-0XB0
Surface protection:conformal coating
Ambient temperature:-20…+60 °C
Analog output range:+/-10 V
Resolution for +/-10 V:14-bit
Analog output range:0-20 mA
Resolution for 0-20 mA:13-bit
Engineering Context
SIPLUS S7-1200 SM 1232 2AQ is specified as an analog output module based on 6ES7232-4HB32-0XB0 with conformal coating.
The module supports analog output signals of +/-10 V with 14-bit resolution or 0-20 mA with 13-bit resolution.
The specified operating ambient temperature range is -20…+60 °C.
FAQ
1. What is the product family and designation for part number 6AG1232-4HB32-4XB0?
It is SIPLUS S7-1200 SM 1232 2AQ.
2. What is the base type used for 6AG1232-4HB32-4XB0?
It is based on 6ES7232-4HB32-0XB0.
3. Which analog output signal ranges are specified?
+/-10 V and 0-20 mA are specified.
4. What resolution applies to the +/-10 V output?
For +/-10 V the resolution is 14-bit.
5. What resolution applies to the 0-20 mA output?
For 0-20 mA the resolution is 13-bit.
6. What conformal coating and temperature range are specified?
The module has conformal coating and is specified for -20…+60 °C.
