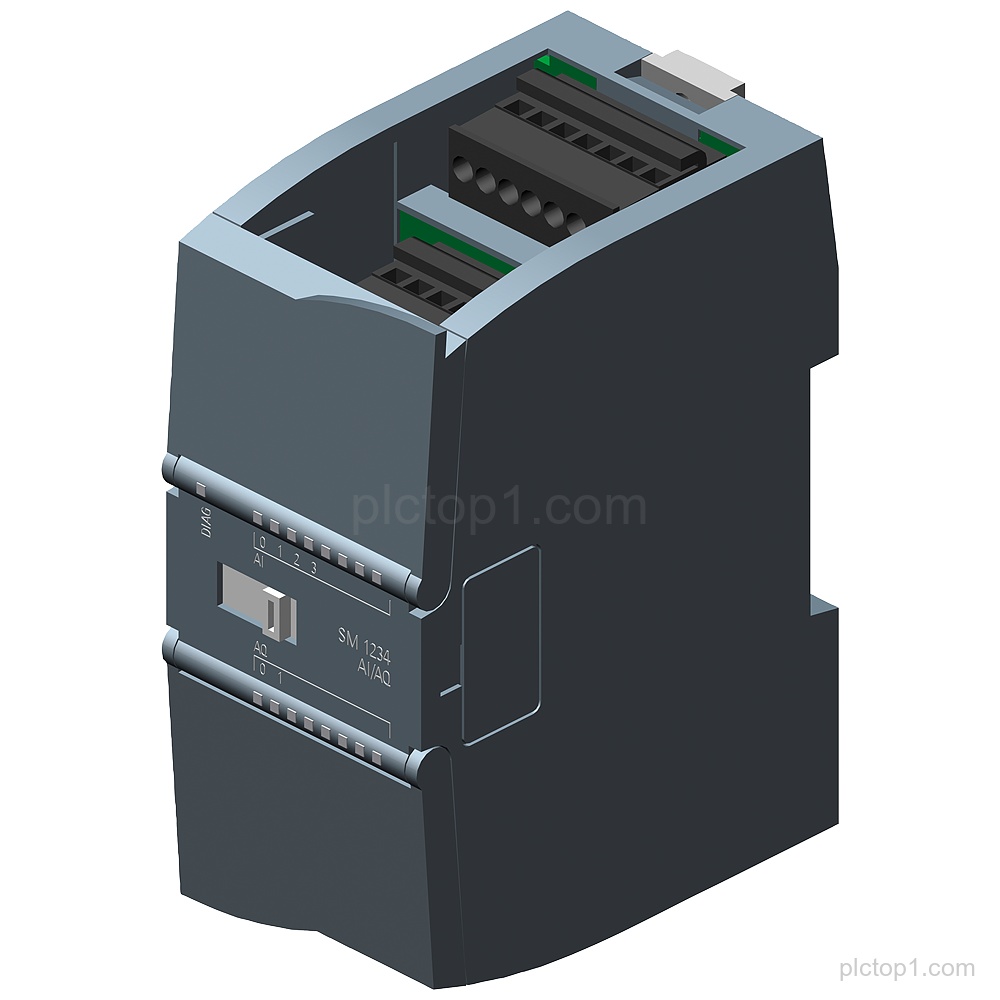

SIPLUS S7-1200 SM 1234 (part number 6AG1234-4HE32-2XB0) is an analog I/O module based on 6ES7234-4HE32-0XB0 with conformal coating.
Detailed Parameters
Based on:6ES7234-4HE32-0XB0
Module:SM 1234 4AI/2AQ
Conformal coating:Yes
Operating temperature:-40…+70 °C
Start-up temperature:-25 °C
Analog I/O range:+/-10 V
Resolution (+/-10 V):14-bit
Analog I/O range:0-20 mA
Resolution (0-20 mA):13-bit
Engineering Context
The SIPLUS S7-1200 SM 1234 4AI/2AQ module (6AG1234-4HE32-2XB0) is based on 6ES7234-4HE32-0XB0 and includes conformal coating.
The module supports analog I/O for both +/-10 V and 0-20 mA signal ranges with specified resolution values.
Operating conditions are specified as -40…+70 °C with a start-up temperature of -25 °C.
FAQ
1. What is the module family and designation for part number 6AG1234-4HE32-2XB0?
SIPLUS S7-1200 SM 1234 4AI/2AQ.
2. What is the basis for this module?
It is based on 6ES7234-4HE32-0XB0.
3. Is conformal coating included?
Yes.
4. What temperature range is specified for operation and start-up?
Operating temperature is -40…+70 °C and start up is -25 °C.
5. What resolution is specified for analog input/output with +/-10 V?
14-bit resolution.
6. What resolution is specified for analog input/output with 0-20 mA?
13-bit resolution.
