Ordering this product
Check the full part number and required version against your equipment. Add any electrical or connection requirements when contacting us.
Product information

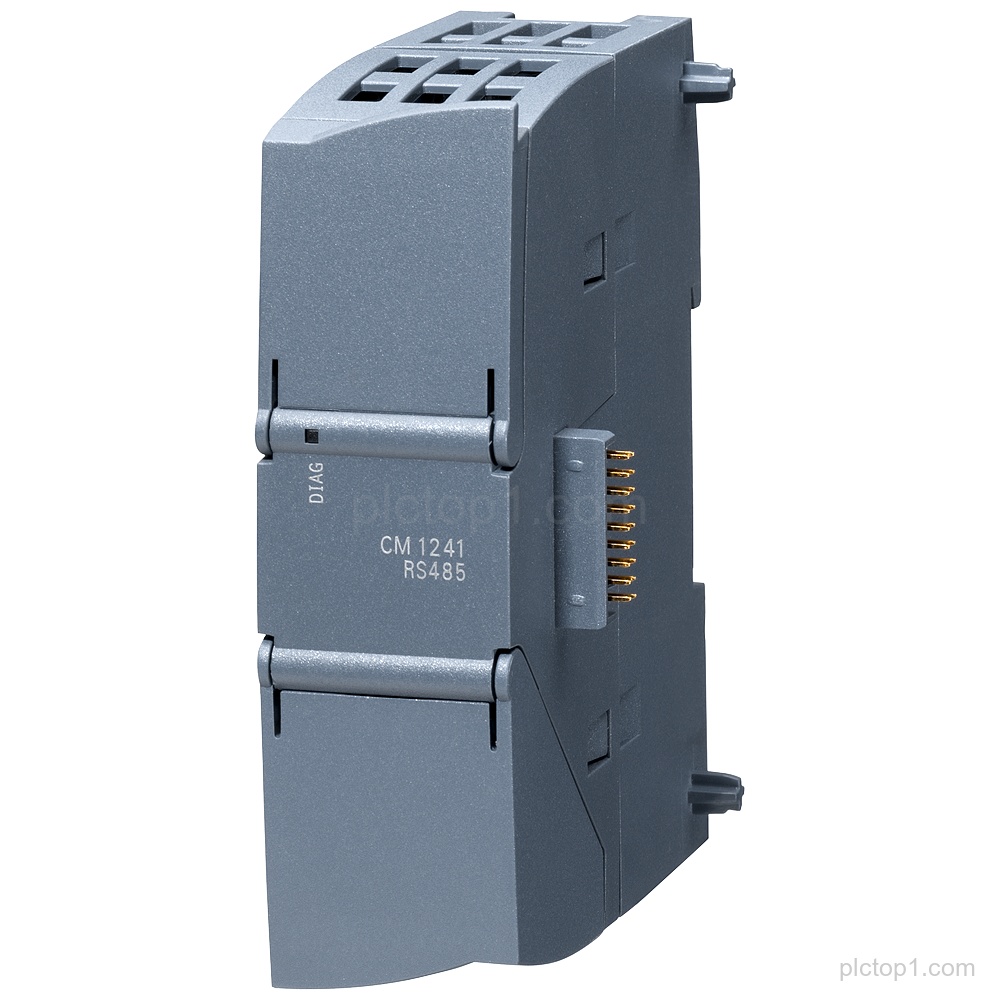

SIPLUS S7-1200 CM 1241 communications module CM 1241 with part number 6AG1241-1CH32-2XB0 is based on 6ES7241-1CH32-0XB0 with conformal coating and provides RS-422/485 using a 9-pole D-sub (pin) connection that supports Freeport.
Detailed Parameters
Product family / system:SIPLUS S7-1200
Module designation:CM 1241
Based on:6ES7241-1CH32-0XB0
Conformal coating:with conformal coating
Operating temperature range:-40…+70 °C
Start-up temperature:-25 °C
Interface type:RS-422/485
Connector:9-pole D-sub (pin)
Signal / protocol support:supports Freeport
Engineering Context
The CM 1241 communications module is part of the SIPLUS S7-1200 system.
RS-422/485 connectivity is provided via a 9-pole D-sub (pin) connection.
The module is specified for operation from -40…+70 °C and start-up at -25 °C.
FAQ
1. What is the product family and module designation for 6AG1241-1CH32-2XB0?
SIPLUS S7-1200 CM 1241 communications module CM 1241.
2. What is 6AG1241-1CH32-2XB0 based on?
It is based on 6ES7241-1CH32-0XB0.
3. Which interface type does CM 1241 provide?
RS-422/485.
4. How is the CM 1241 interface connected?
Using a 9-pole D-sub (pin).
5. Does CM 1241 support Freeport?
Yes, it supports Freeport.
6. What are the specified temperature limits?
Operating temperature range is -40…+70 °C, and start up is -25 °C.
7. Does the CM 1241 include conformal coating?
Yes, it is specified with conformal coating.
