Product information

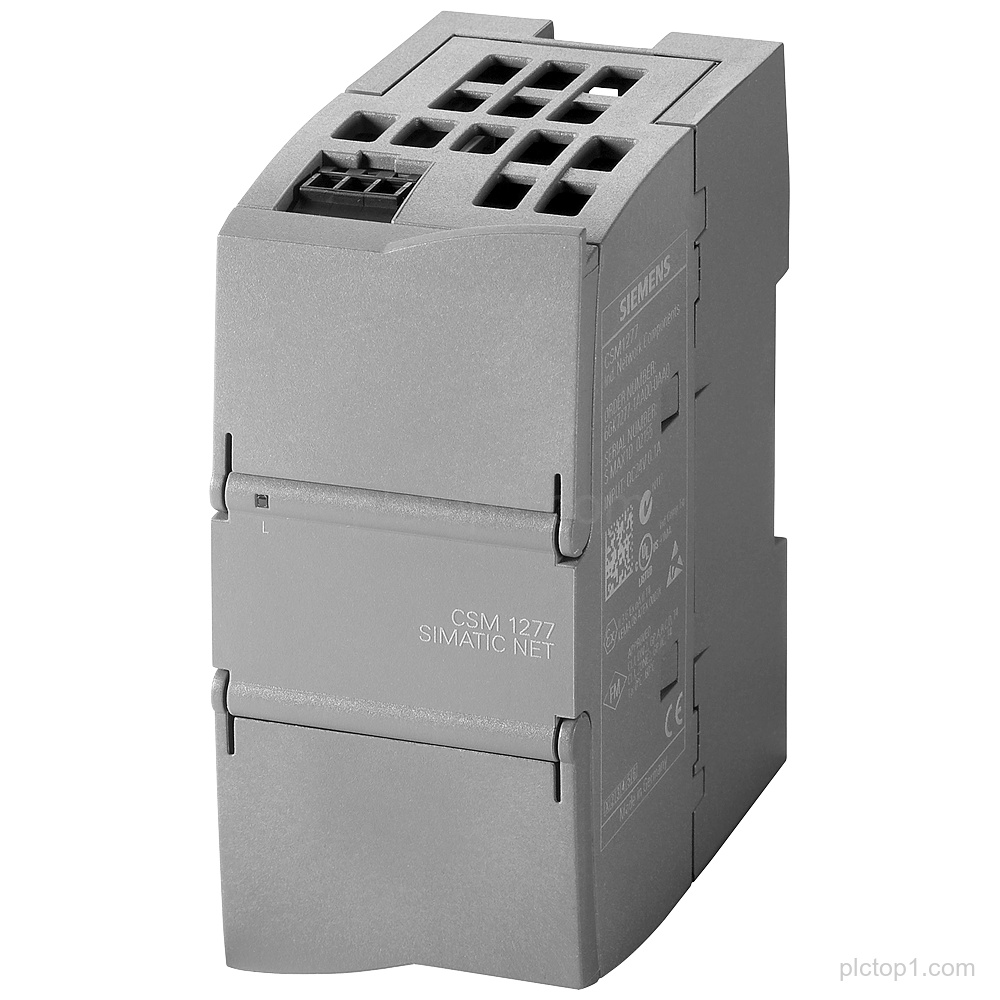

SIPLUS NET CSM 1277 (Part number 6AG1277-1AA10-4AA0) is based on 6GK7277-1AA10-0AA0 with conformal coating and supports connection SIMATIC S7-1200 and up to 3 further nodes to Industrial Ethernet with 10/100 Mbps.
Detailed Parameters
Conformal coating:Yes
Based on:6GK7277-1AA10-0AA0
Product type:Compact Switch Module CSM 1277
Connection:SIMATIC S7-1200
Further nodes:Up to 3 further nodes
Industrial Ethernet:10/100 Mbps
Ambient temperature:0…+60 °C
Engineering Context
The Compact Switch Module CSM 1277 is designed for connection to SIMATIC S7-1200.
The product enables Industrial Ethernet operation with 10/100 Mbps for connection to up to 3 further nodes.
The design is based on 6GK7277-1AA10-0AA0 and includes conformal coating.
FAQ
1. What is the product family and designation for Part number 6AG1277-1AA10-4AA0?
SIPLUS NET CSM 1277, Compact Switch Module CSM 1277.
2. What system does 6AG1277-1AA10-4AA0 connect to?
It supports connection SIMATIC S7-1200.
3. How many additional nodes can be connected on Industrial Ethernet?
Up to 3 further nodes.
4. What Industrial Ethernet data rate is supported?
10/100 Mbps.
5. Is conformal coating included?
Yes, it includes conformal coating.
6. What is the specified ambient temperature range?
0…+60 °C.
