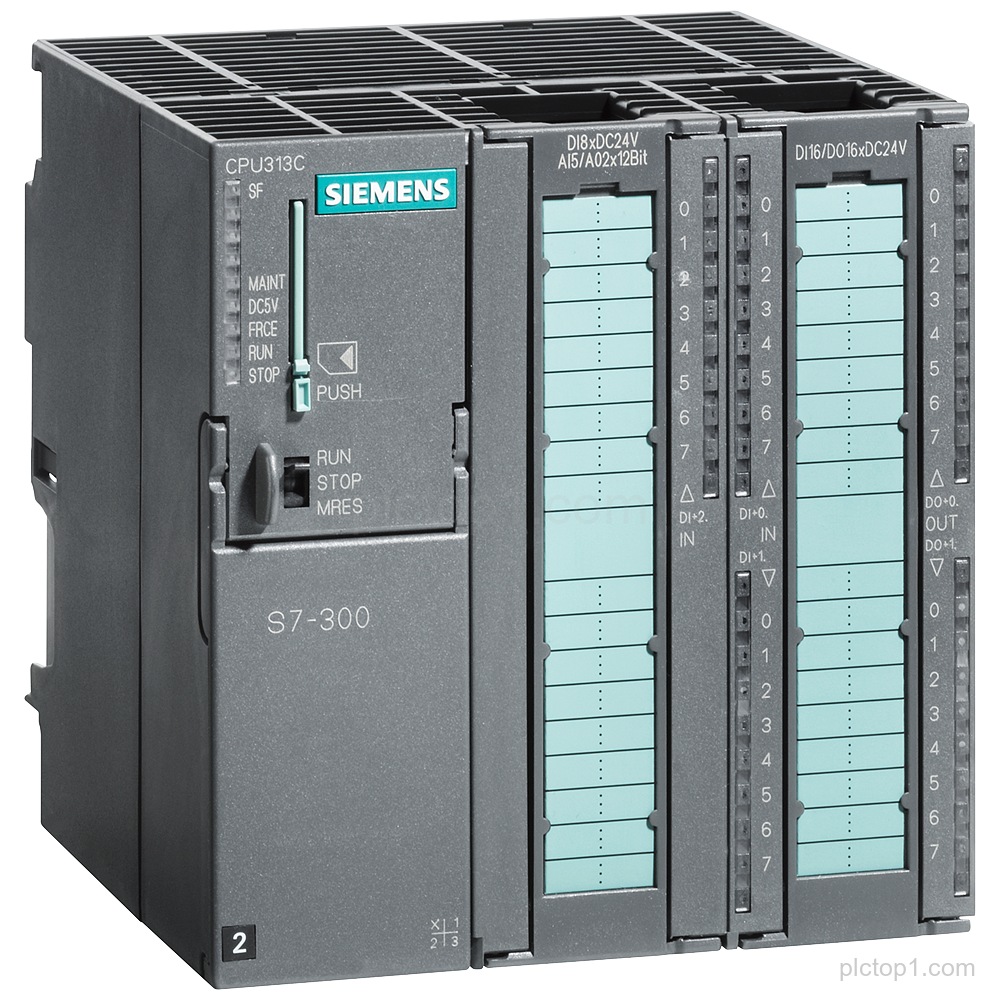

SIPLUS S7-300 CPU 313C with conformal coating (part number 6AG1313-5BG04-2AY0) provides a compact CPU with MPI and integrated power supply 24 V DC, and it is designed for -25…+60 °C operation.
Detailed Parameters
Conformal coating:Yes
Operating temperature:-25…+60 °C
CPU family/designation:SIPLUS S7-300 CPU 313C
MPI:Integrated
DI:24
DQ:16
AI:4
AQ:2
Pt100:1
High-speed counters:3
High-speed counter frequency:30 kHz
Integrated power supply:24 V DC
Work memory:128 KB
Front connector:2x 40-pole
Micro Memory Card:Required
Based on:6ES7313-5BG04-0AB0
Product type:Spare part
Engineering Context
The SIPLUS S7-300 CPU 313C provides compact CPU functionality based on 6ES7313-5BG04-0AB0 with conformal coating.
The CPU includes integrated power supply 24 V DC and MPI and supports 24 DI/16 DQ, 4 AI, 2 AQ, and 1 Pt100.
Three high-speed counters with 30 kHz are available for counter applications.
FAQ
1. Is 6AG1313-5BG04-2AY0 a spare part?
Yes, 6AG1313-5BG04-2AY0 is specified as a spare part.
2. Which CPU family/designation does 6AG1313-5BG04-2AY0 belong to?
It is a SIPLUS S7-300 CPU 313C-based spare part.
3. What is the conformal coating and operating temperature range?
It has conformal coating and is specified for -25…+60 °C.
4. Which integrated interfaces and power supply are included?
MPI is integrated, and it has an integrated power supply 24 V DC.
5. How many input and output channels are provided?
It provides 24 DI/16 DQ, 4 AI, and 2 AQ, and 1 Pt100 is specified.
6. How many high-speed counters are included and what is the frequency?
It has 3 high-speed counters with 30 kHz.
7. Is a Micro Memory Card required?
Yes, a Micro Memory Card is required.
