Product information

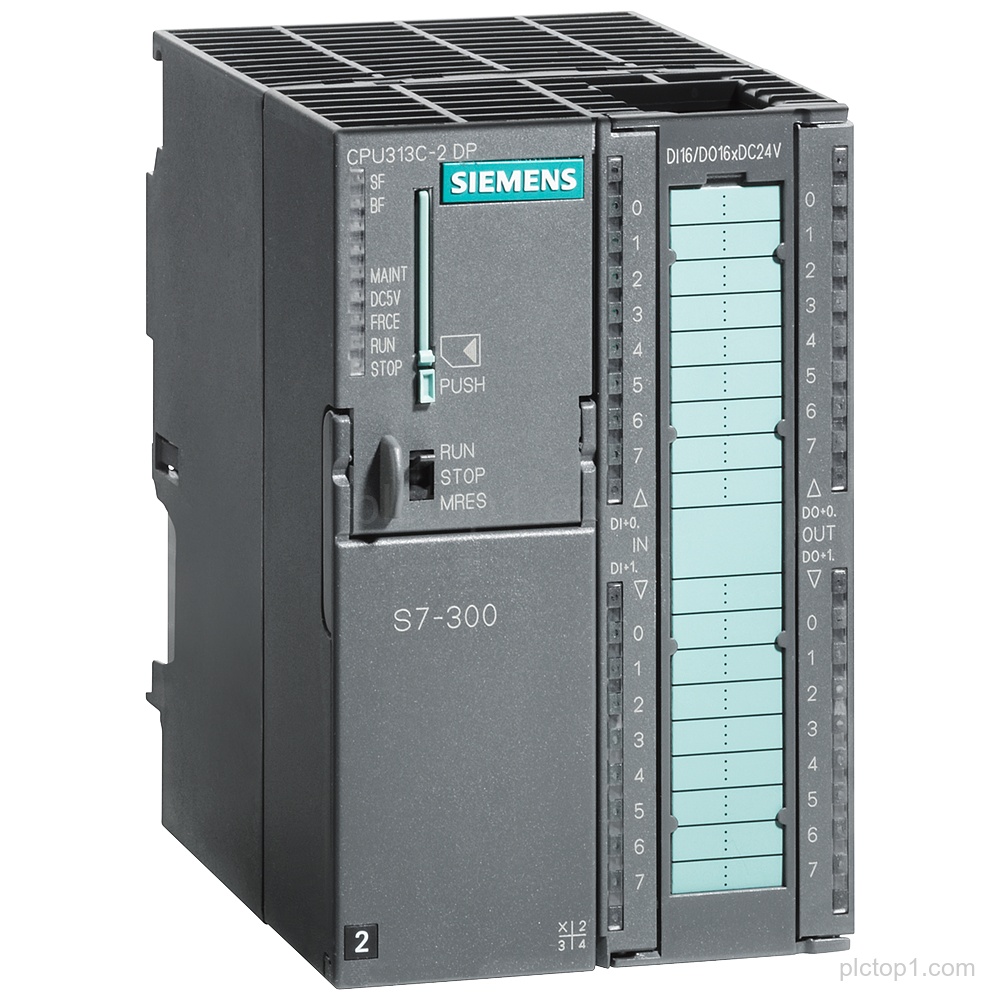

SIPLUS S7-300 CPU 313C-2DP spare part, part number 6AG1313-6CG04-2AY0, based on 6ES7313-6CG04-0AB0 with conformal coating.
Detailed Parameters
Product type:spare part
Base product:SIPLUS S7-300 CPU 313C-2DP based on 6ES7313-6CG04-0AB0
Coating:conformal coating
Ambient temperature:-25…+60 °C
CPU design:compact CPU with MPI
Digital inputs:16 DI
Digital outputs:16 DQ
High-speed counters:3 high-speed counters (30 kHz)
DP interface:integrated DP interface
Power supply:integrated power supply 24 V DC
Work memory:128 KB
Front connector:1x 40-pole
Memory card:Micro Memory Card required
Engineering Context
The SIPLUS S7-300 CPU 313C-2DP spare part provides a compact CPU with MPI and integrated DP interface.
The CPU supports 16 DI and 16 DQ, and includes 3 high-speed counters (30 kHz).
The integrated power supply 24 V DC and work memory 128 KB support operation with the required Micro Memory Card.
FAQ
1. What is the part number and designation of the CPU?
The part number is 6AG1313-6CG04-2AY0 and the designation is SIPLUS S7-300 CPU 313C-2DP.
2. What is the base product reference for this spare part?
It is based on 6ES7313-6CG04-0AB0.
3. Does it have conformal coating?
Yes, it is specified with conformal coating.
4. What ambient temperature range is specified?
The specified range is -25…+60 °C.
5. How many digital inputs and digital outputs are specified?
The CPU specifies 16 DI and 16 DQ.
6. How many high-speed counters are specified and what is their frequency?
It includes 3 high-speed counters with 30 kHz.
7. What integrated interfaces and power supply are specified?
It has an integrated DP interface and an integrated power supply 24 V DC.
8. What memory and connector requirements are specified?
It has work memory 128 KB and requires a Micro Memory Card; the front connector is 1x 40-pole.
