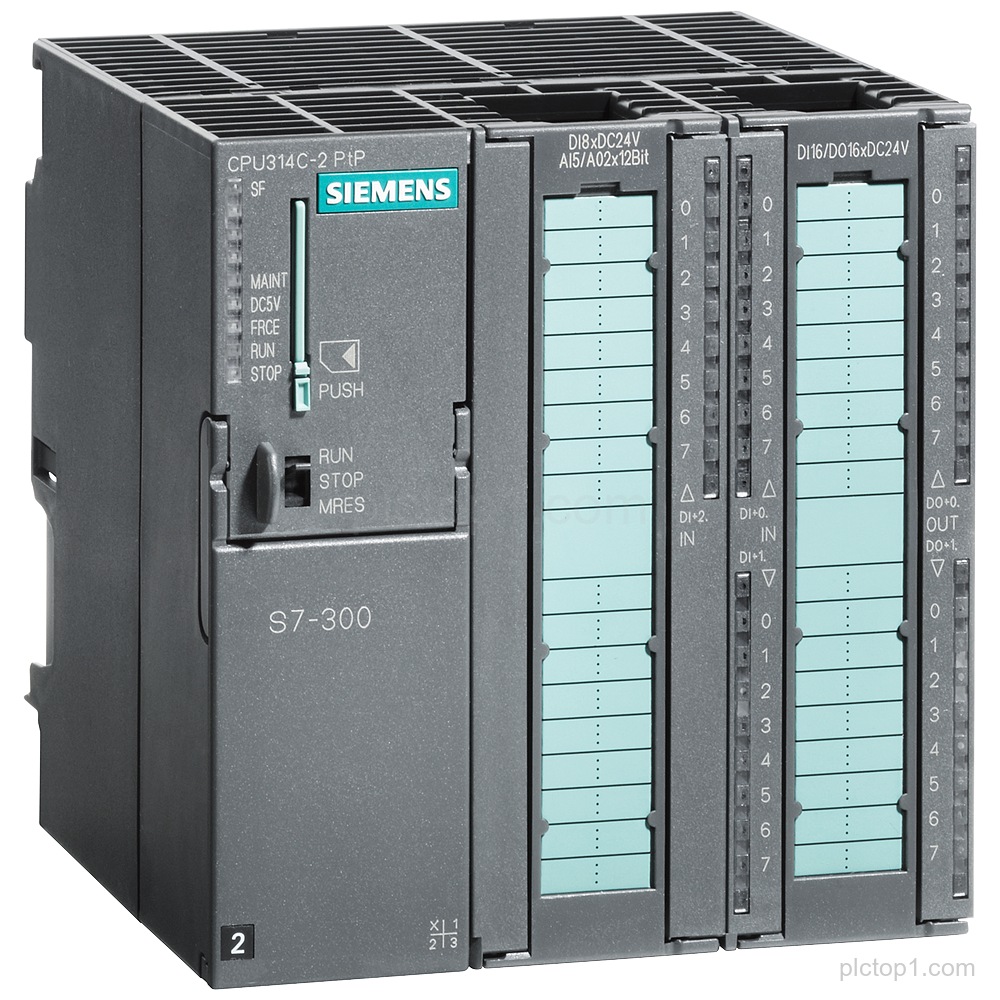

SIPLUS S7-300 CPU 314C spare part, Part number 6AG1314-6BH04-7AB0, is based on 6ES7314-6BH04-0AB0 with conformal coating and is specified for -25…+70 °C.
Detailed Parameters
Product type:spare part
Series:SIPLUS S7-300
CPU designation:CPU 314C
Based on:6ES7314-6BH04-0AB0
Conformal coating:with conformal coating
Operating temperature:-25…+70 °C
MPI:compact CPU with MPI
Digital inputs:24 DI
Digital outputs:16 DO
Analog inputs:4 AI
Analog outputs:2 AO
Temperature input:1 Pt100
High-speed counters:4 high-speed counters (60 kHz)
Integrated interface:RS-485
Integrated power supply:24 V DC
Work memory:192 KB
Front connector:front connector (2x 40-pole)
Required:Micro Memory Card required
Engineering Context
This spare part is specified as a SIPLUS S7-300 CPU 314C based on 6ES7314-6BH04-0AB0 with conformal coating.
The CPU provides MPI and an integrated interface RS-485 for use in an S7-300 configuration.
Integrated I/O includes 24 DI/16 DO, 4 AI/2 AO, 1 Pt100, and 4 high-speed counters (60 kHz).
FAQ
1. What is the product family and CPU designation for part number 6AG1314-6BH04-7AB0?
It is a SIPLUS S7-300 spare part for CPU 314C.
2. What is this spare part based on?
It is based on 6ES7314-6BH04-0AB0.
3. What operating temperature range is specified?
-25…+70 °C.
4. Which integrated interfaces and power supply are provided?
It has compact CPU with MPI, an integrated interface RS-485, and an integrated power supply 24 V DC.
5. How many I/O channels are provided?
24 DI/16 DO, 4 AI/2 AO, plus 1 Pt100 and 4 high-speed counters (60 kHz).
6. Is a Micro Memory Card required?
Yes, a Micro Memory Card is required.
