Product information

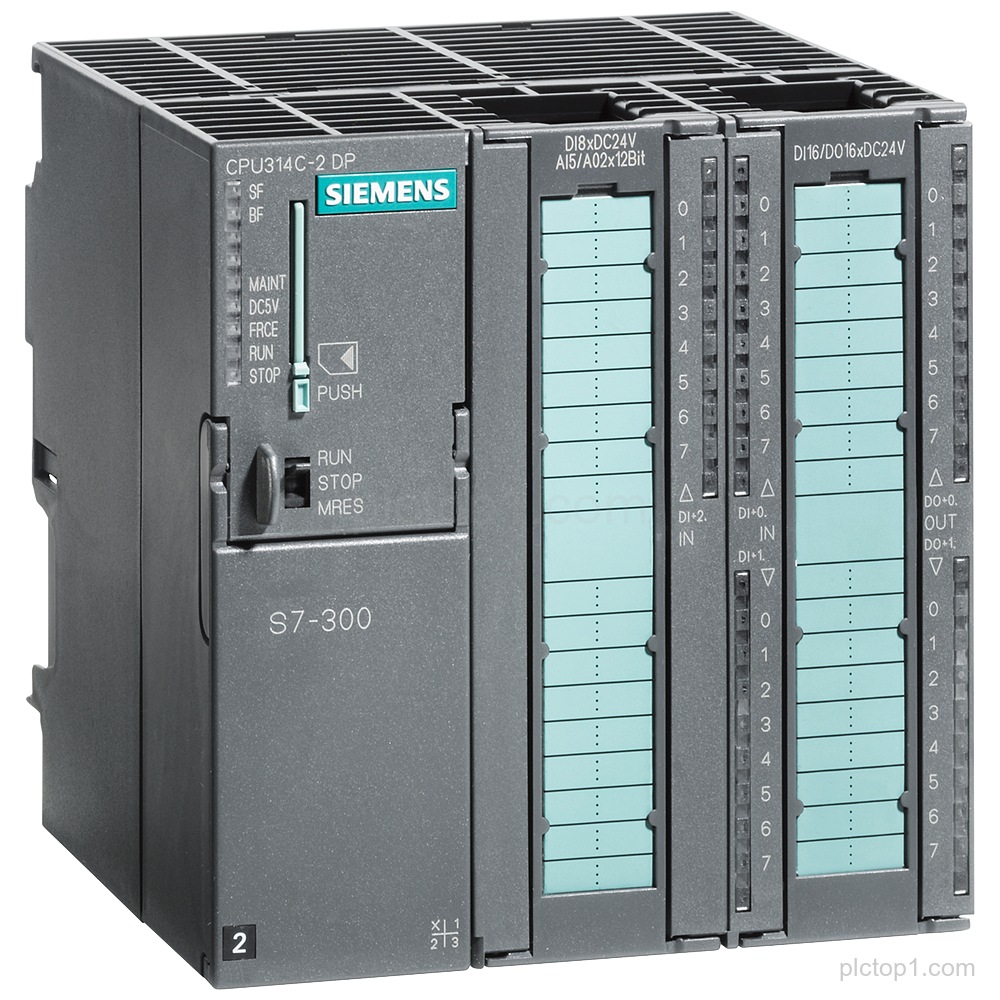

SIPLUS S7-300 CPU 314C-2DP (Part Number: 6AG1314-6CH04-7AB0) is a spare part based on 6ES7314-6CH04-0AB0, designed as a compact CPU with MPI and integrated DP interface, and conformal coating.
Detailed Parameters
Designation:SIPLUS S7-300 CPU 314C-2DP
Based on:6ES7314-6CH04-0AB0
Conformal coating:Provided
Operating temperature:-25…+70 °C
CPU type:Compact CPU with MPI
DI:24
DO:16
AI:4
AO:2
Pt100:1
High-speed counters:4
High-speed counter frequency:60 kHz
Integrated DP interface:Yes
Integrated power supply:24 V DC
Work memory:192 KB
Front connector:2x 40-pole
Micro Memory Card:Required
Engineering Context
As a spare part, the SIPLUS S7-300 CPU 314C-2DP is based on 6ES7314-6CH04-0AB0 and includes conformal coating.
The compact CPU with MPI provides integrated DP interface and an integrated power supply 24 V DC for system configuration.
The integrated I/O set includes 24 DI/16 DO and 4 AI/2 AO plus 4 high-speed counters (60 kHz).
FAQ
1. What is the designation of the spare part with Part Number 6AG1314-6CH04-7AB0?
It is the SIPLUS S7-300 CPU 314C-2DP.
2. Which part is it based on?
It is based on 6ES7314-6CH04-0AB0.
3. What is the operating temperature range?
-25…+70 °C.
4. What communications interfaces are integrated?
The CPU is a compact CPU with MPI and has an integrated DP interface.
5. What integrated power supply is provided?
Integrated power supply 24 V DC.
6. Which I/O quantities are provided?
24 DI/16 DO, 4 AI/2 AO, and 1 Pt100.
7. How many high-speed counters are available, and what is their frequency?
4 high-speed counters (60 kHz).
8. Is a Micro Memory Card required?
Yes, Micro Memory Card required.
