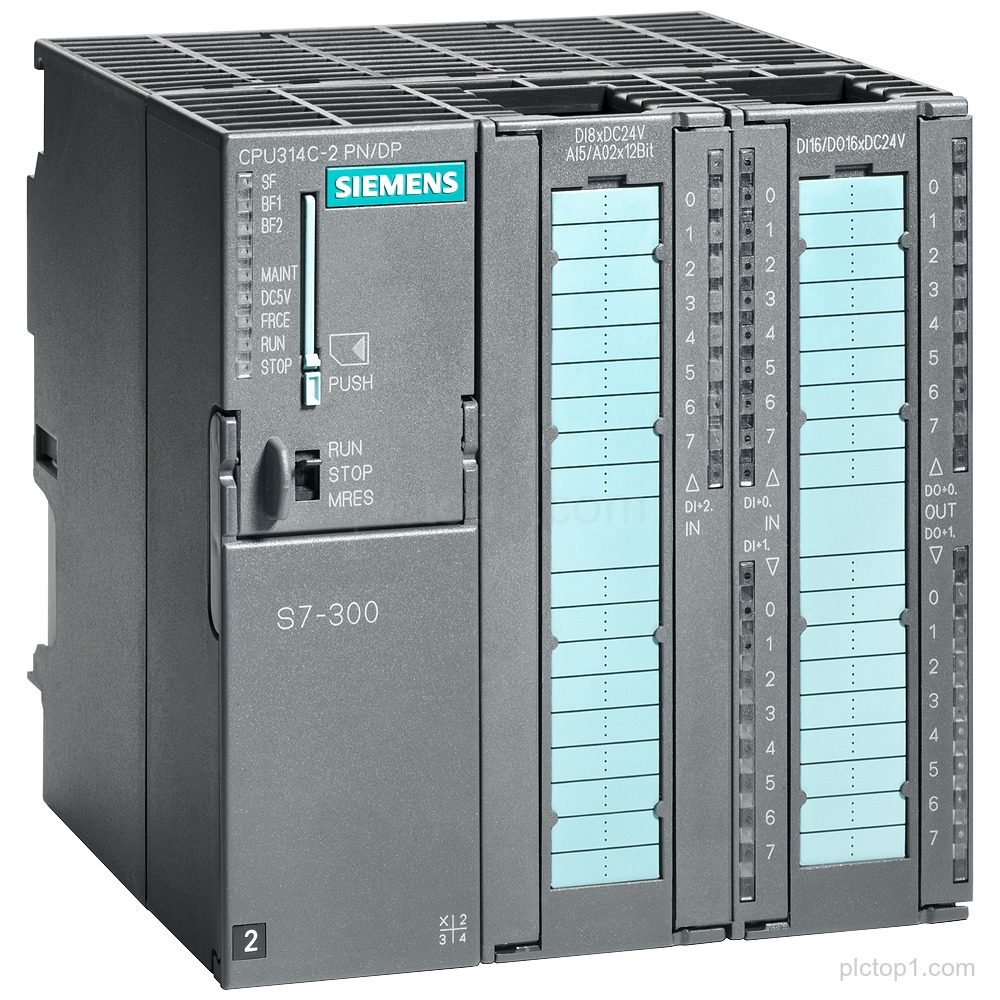

SIPLUS S7-300 CPU 314C-2PN/DP spare part, Part Number 6AG1314-6EH04-7AB0, for compact control with integrated interfaces and power supply.
Detailed Parameters
Product type:spare part
CPU family/designation:SIPLUS S7-300 CPU 314C-2PN/DP
Based on:6ES7314-6EH04-0AB0
Conformal coating:with conformal coating
Ambient temperature range:-25…+70 °C
Memory:192 KB work memory
Digital inputs (DI):24
Digital outputs (DO):16
Analog inputs (AI):4
Analog outputs (AO):2
Temperature input:1 Pt100
High-speed counters:4
High-speed counter frequency:60 kHz
1st interface:MPI/DP 12 Mbps
2nd interface:Ethernet PROFINET with 2-port switch
Integrated power supply:24 V DC
Front connector:2x 40-pole
Micro Memory Card:required
Engineering Context
The SIPLUS S7-300 CPU 314C-2PN/DP spare part (6AG1314-6EH04-7AB0) provides a compact CPU based on 6ES7314-6EH04-0AB0 with conformal coating.
The CPU includes integrated interfaces with MPI/DP 12 Mbps and Ethernet PROFINET using a 2-port switch.
The integrated power supply provides 24 V DC and the front connector is specified as 2x 40-pole with a Micro Memory Card required.
