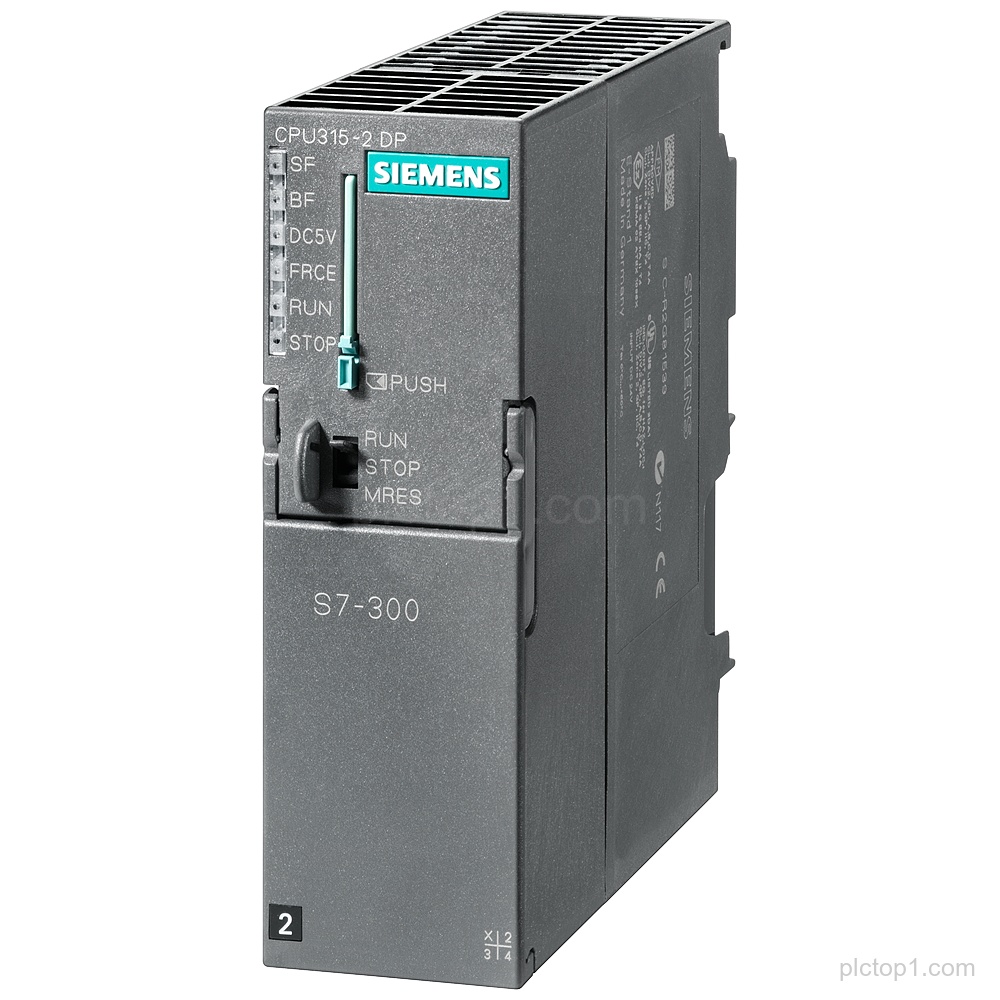

SIPLUS S7-300 CPU 315-2DP spare part; part number 6AG1315-2AH14-7AB0, based on 6ES7315-2AH14-0AB0 with conformal coating and temperature range -25…+70 °C.
Detailed Parameters
Part number:6AG1315-2AH14-7AB0
Spare part:Yes
Product basis:Based on 6ES7315-2AH14-0AB0
Conformal coating:Included
Operating temperature range:-25…+70 °C
Central processing unit:CPU
MPI:Integrated
Power supply:Integrated power supply 24 V DC
Work memory:256 KB
2nd interface:DP master/ device
Micro Memory Card:Required
Engineering Context
The CPU is a SIPLUS S7-300 CPU 315-2DP spare part based on 6ES7315-2AH14-0AB0 with conformal coating.
The central processing unit includes an integrated MPI and an integrated power supply 24 V DC.
The CPU provides a 2nd interface as DP master/ device and requires a Micro Memory Card.
FAQ
1. What is the product family and designation for 6AG1315-2AH14-7AB0?
It is a SIPLUS S7-300 CPU 315-2DP spare part.
2. Is the CPU 6AG1315-2AH14-7AB0 based on 6ES7315-2AH14-0AB0?
Yes, it is based on 6ES7315-2AH14-0AB0.
3. Does 6AG1315-2AH14-7AB0 include conformal coating?
Yes, conformal coating is included.
4. What operating temperature range is specified for 6AG1315-2AH14-7AB0?
The specified range is -25…+70 °C.
5. What interfaces and memory are specified for the CPU?
It includes integrated MPI, work memory 256 KB, and a 2nd interface DP master/ device.
6. Is a Micro Memory Card required for this CPU?
Yes, Micro Memory Card required.
