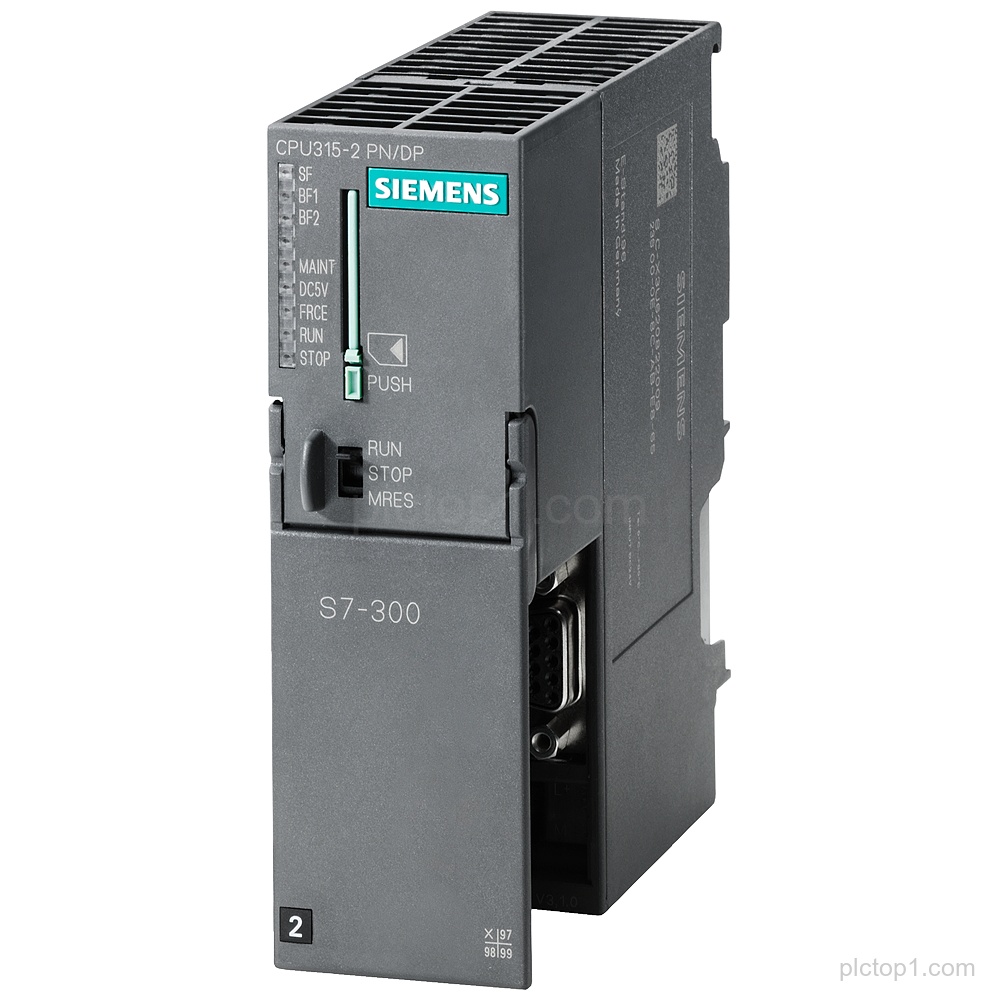

SIPLUS S7-300 CPU 315-2PN/DP (Part Number: 6AG1315-2EH14-2AY0) is a central processing unit based on 6ES7315-2EH14-0AB0 with conformal coating and specified operating temperature range.
Detailed Parameters
Conformal coating:Yes
Operating temperature range:-25…+60 °C
Work memory:384 KB
1st interface:MPI/DP (12 Mbps)
2nd interface:Ethernet PROFINET
Ethernet interface:2-port switch
Micro Memory Card:Required
Based on:6ES7315-2EH14-0AB0
Engineering Context
The CPU is provided for SIPLUS S7-300 as a central processing unit based on 6ES7315-2EH14-0AB0 with conformal coating.
The interfaces include MPI/DP (12 Mbps) and Ethernet PROFINET with a 2-port switch configuration.
A Micro Memory Card is required for operation.
FAQ
1. What CPU family and designation does 6AG1315-2EH14-2AY0 belong to?
It is a SIPLUS S7-300 CPU 315-2PN/DP.
2. What is the basis designation for this CPU?
It is based on 6ES7315-2EH14-0AB0.
3. What work memory is specified for this CPU?
384 KB work memory.
4. Which interfaces are specified for the CPU?
1st interface MPI/DP (12 Mbps) and 2nd interface Ethernet PROFINET with a 2-port switch.
5. Is conformal coating specified for this CPU?
Yes, it includes conformal coating.
6. Is a Micro Memory Card required?
Yes, Micro Memory Card required.
7. What operating temperature range is specified?
-25…+60 °C.
