Ordering this product
Check the full part number and required version against your equipment. Add any electrical or connection requirements when contacting us.
Product information

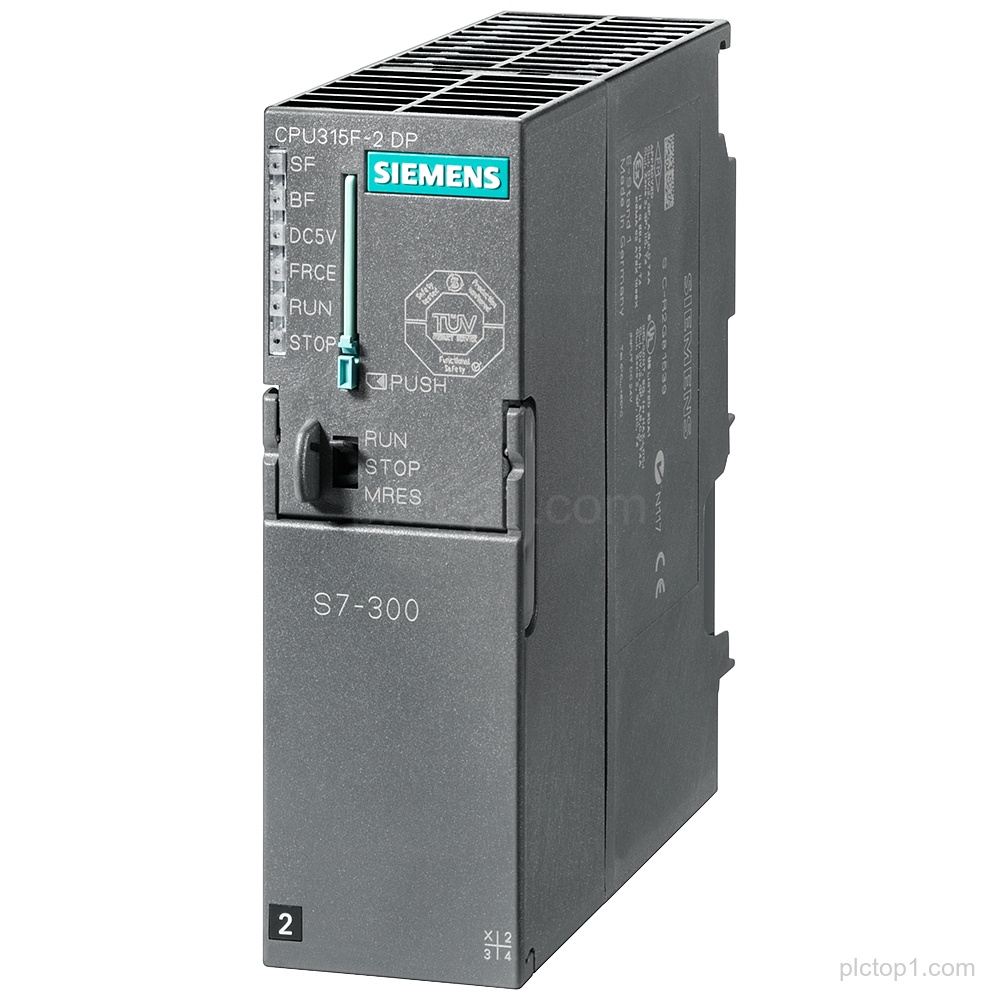

SIPLUS S7-300 CPU 315F-2DP spare part (Part Number: 6AG1315-6FF04-2AB0) is based on 6ES7315-6FF04-0AB0 with conformal coating for the -25…+60 °C range, and includes a fail-safe module with MPI integrated power supply 24 V DC.
Detailed Parameters
Product type:SIPLUS S7-300 CPU 315F-2DP
Spare part:SIPLUS S7-300 CPU 315F-2DP spare part
Base designation:based on 6ES7315-6FF04-0AB0
Coating:conformal coating
Operating temperature:-25…+60 °C
Fail-safe module:fail-safe module
Power supply:MPI integrated power supply 24 V DC
Work memory:384 KB
Width:40 mm
2nd interface:DP master/ device
Micro Memory Card:Micro Memory Card required
Engineering Context
The spare part provides a SIPLUS S7-300 CPU 315F-2DP with conformal coating and a specified operating temperature range of -25…+60 °C.
The CPU includes an integrated power supply 24 V DC with MPI and is described as a fail-safe module.
The CPU configuration includes an additional interface described as 2nd interface DP master/ device and requires a Micro Memory Card.
FAQ
1. What is the product family and designation for Part Number 6AG1315-6FF04-2AB0?
SIPLUS S7-300 CPU 315F-2DP.
2. Based on which designation is this spare part?
It is based on 6ES7315-6FF04-0AB0.
3. What coating and operating temperature range are specified?
Conformal coating and -25…+60 °C.
4. What safety-related module is included as described in the information?
A fail-safe module.
5. What power supply value is specified and how is it integrated?
An MPI integrated power supply 24 V DC.
6. What memory capacity and physical width are specified?
Work memory 384 KB and 40 mm width.
7. Is a Micro Memory Card required?
Yes, Micro Memory Card required.
8. What is specified for the 2nd interface?
DP master/ device.
