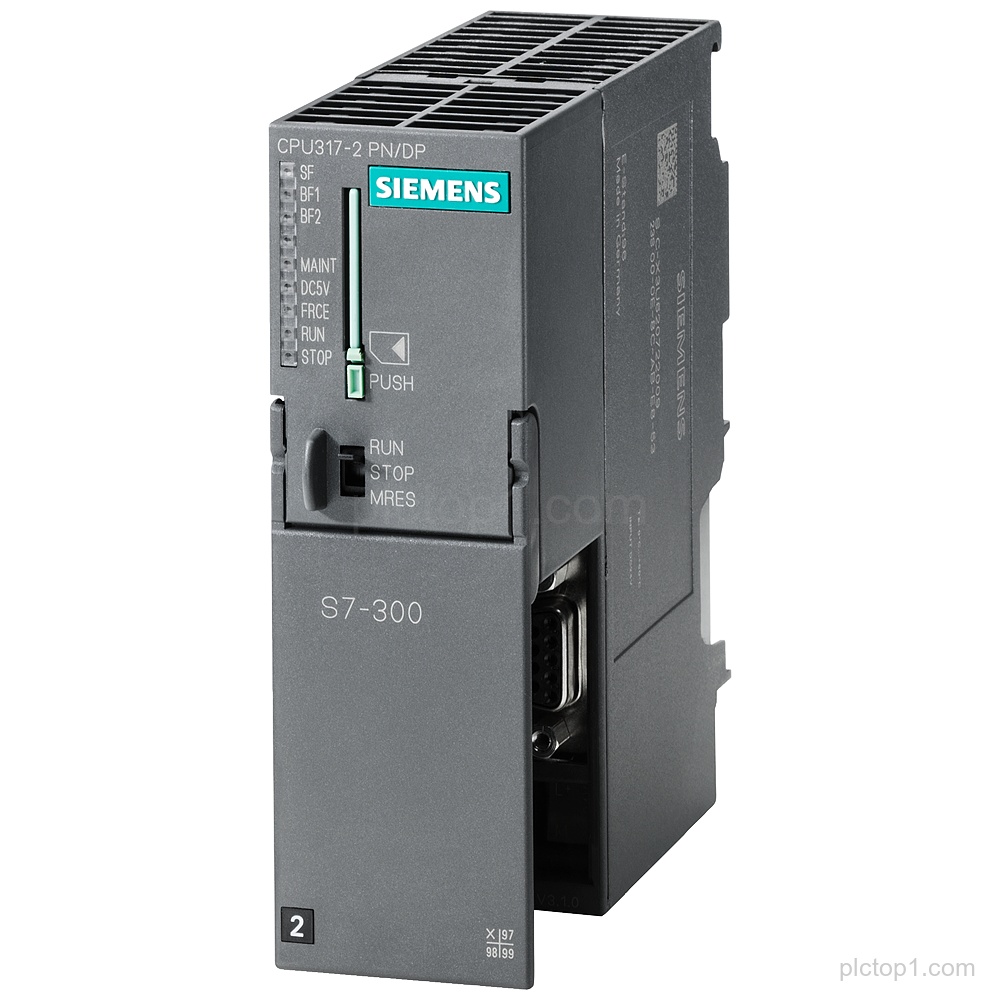

SIP LUS S7-300 CPU 317-2PN/DP with conformal coating (Part number: 6AG1317-2EK14-2AY0) based on 6ES7317-2EK14-0AB0, for use within the specified operating range.
Detailed Parameters
Spare part:SIPLUS S7-300 CPU 317-2PN/DP based on 6ES7317-2EK14-0AB0
Conformal coating:Yes
Operating temperature:-25…+70 °C
Function:Central processing unit
Work memory:1 MB
1st interface:MPI/DP
1st interface data rate:12 Mbps
2nd interface:Ethernet PROFINET
Ethernet interface:With 2-port switch
Micro Memory Card:Required
Engineering Context
The spare part provides a SIPLUS S7-300 central processing unit based on 6ES7317-2EK14-0AB0 with conformal coating.
The CPU includes a first interface MPI/DP with 12 Mbps and a second interface Ethernet PROFINET with 2-port switch.
Micro Memory Card is required for this CPU configuration.
FAQ
1. What is the product family and CPU designation for part number 6AG1317-2EK14-2AY0?
SIPLUS S7-300 CPU 317-2PN/DP.
2. Is part number 6AG1317-2EK14-2AY0 provided as a spare part, and what base part is it based on?
Yes, it is a spare part based on 6ES7317-2EK14-0AB0.
3. What conformal coating and operating temperature range are specified?
It is with conformal coating and specified for -25…+70 °C.
4. What memory and interfaces are specified for the CPU?
Central processing unit with 1 MB work memory, 1st interface MPI/DP 12 Mbps, and 2nd interface Ethernet PROFINET with 2-port switch.
5. Is a Micro Memory Card required?
Yes, Micro Memory Card required.
