Product information

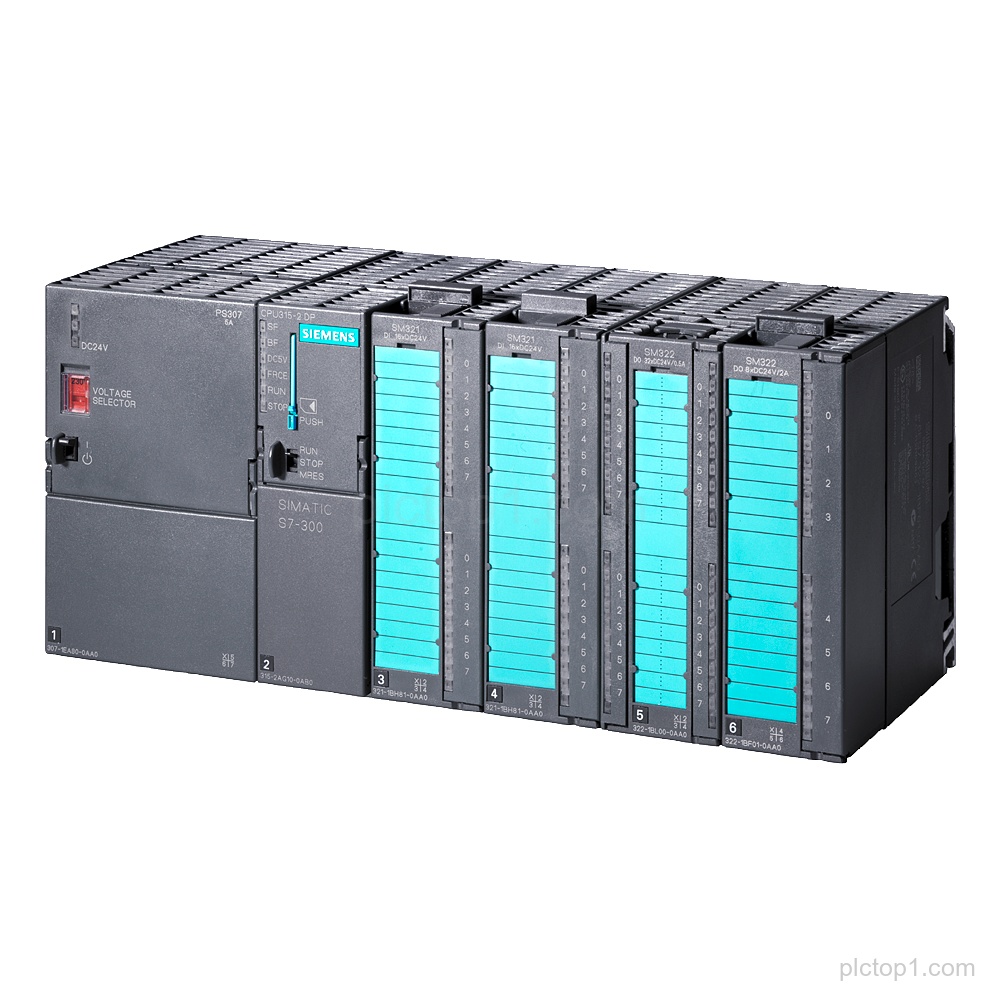

SIPLUS S7-300 SM 322 16 DO 24 V DC spare part, part number 6AG1322-8BH10-7AB0, based on 6ES7322-8BH10-0AB0 with conformal coating.
Detailed Parameters
Spare part:SIPLUS S7-300 SM 322 16 DO 24 V DC
Based on:6ES7322-8BH10-0AB0
Conformal coating:Yes
Operating temperature range:-25…+70 °C
Module type:Digital output SM 322
Number of digital outputs:16 DO
Output voltage:24 V DC
Output current:0.5 A
Diagnostics:Diagnostics-capable
Open-circuit detection:With 0 and 1 signal
Connector:1x 40-pole
Required connection:Connection IM 153-X HF required
Engineering Context
Provides diagnostics-capable digital output SM 322 functionality with open-circuit detection that uses 0 and 1 signal.
Configured as SIPLUS S7-300 SM 322 for 16 DO switching at 24 V DC/0.5 A with conformal coating over -25…+70 °C.
Requires connection IM 153-X HF for module connection via 1x 40-pole.
FAQ
1. What is the module function of 6AG1322-8BH10-7AB0?
It is a digital output SM 322 spare part for 16 DO 24 V DC.
2. What output voltage and output current are specified for 6AG1322-8BH10-7AB0?
The outputs are specified as 24 V DC/0.5 A.
3. Does 6AG1322-8BH10-7AB0 support diagnostics and open-circuit detection?
Yes. It is diagnostics-capable with open-circuit detection with 0 and 1 signal.
4. What temperature range is specified for 6AG1322-8BH10-7AB0?
The specified range is -25…+70 °C.
5. Is conformal coating included in 6AG1322-8BH10-7AB0?
Yes. It is based on 6ES7322-8BH10-0AB0 with conformal coating.
6. What type of connection is required for this module?
Connection IM 153-X HF is required.
