Product information

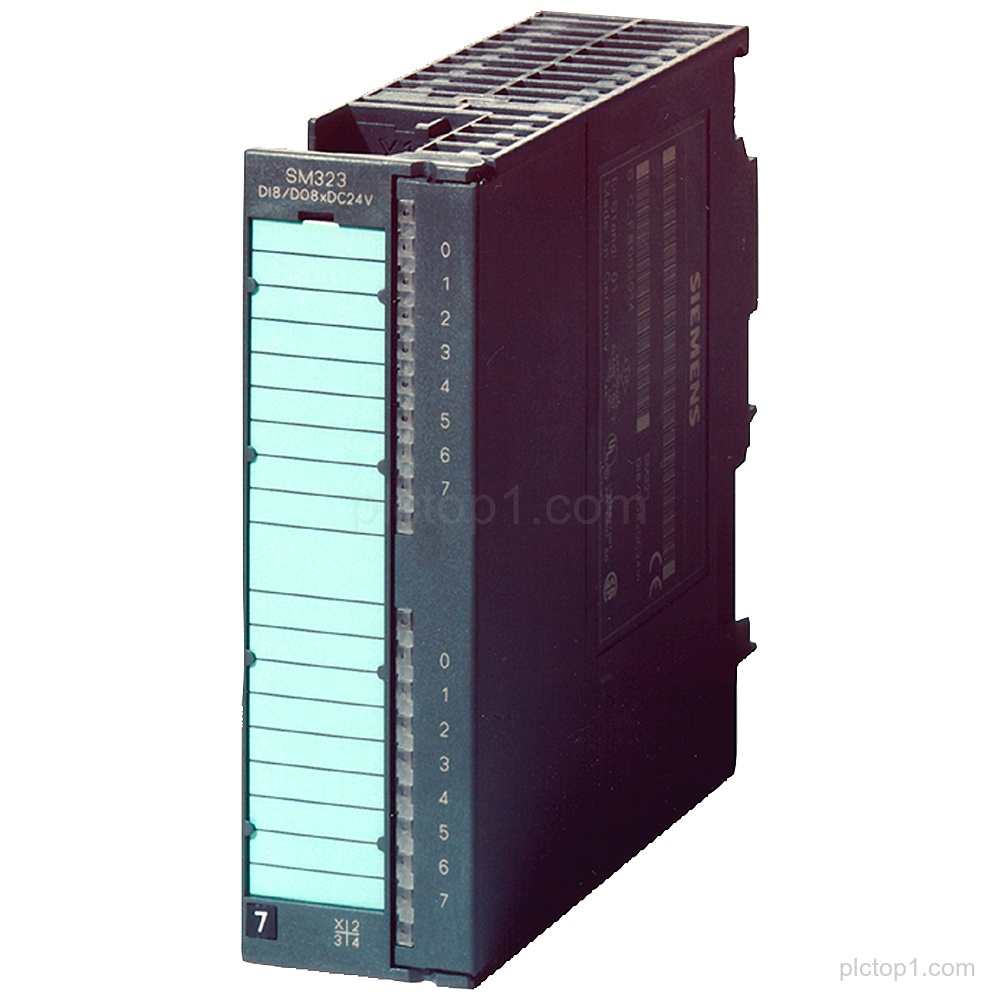

SIPLUS S7-300 SM 323 spare part 6AG1323-1BH01-2AA0 with conformal coating for digital module isolated 8 DI and 8 DO signals.
Detailed Parameters
Spare part reference:based on 6ES7323-1BH01-0AA0
Conformal coating:yes
Operating temperature:-40…+70 °C
Digital module isolation:isolated
Digital inputs:8 DI
Digital outputs:8 DO
Nominal voltage:24 V DC
Total current:0.5 A total current
Current:2 A
Engineering Context
SIPLUS S7-300 SM 323 spare part 6AG1323-1BH01-2AA0 provides isolated digital inputs (8 DI) and digital outputs (8 DO).
The module is conformal coated and specified for an operating temperature range of -40…+70 °C.
The digital module operates at 24 V DC with a stated 0.5 A total current and 2 A.
FAQ
1. What is the referenced spare-part base for 6AG1323-1BH01-2AA0?
It is a spare part based on 6ES7323-1BH01-0AA0.
2. How many DI and DO channels does the SIPLUS S7-300 SM 323 module provide?
It provides digital module isolated 8 DI and 8 DO.
3. What nominal voltage does the module use?
The module is specified for 24 V DC.
4. What operating temperature range is specified?
The specified operating temperature range is -40…+70 °C.
5. Is conformal coating included?
Yes, the spare part is provided with conformal coating.
