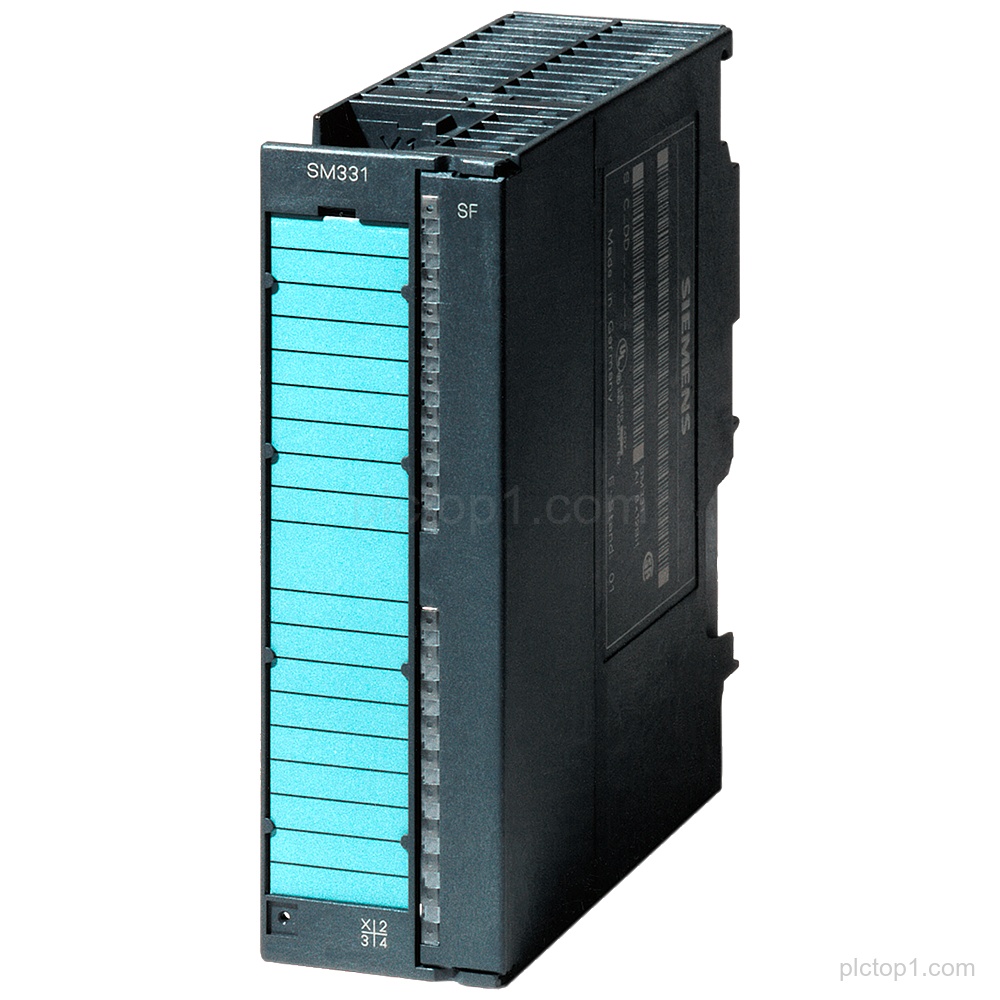

SIPLUS S7-300 SM 331 analog input module (Part Number: 6AG1331-7PF11-4AB0) with conformal coating and isolated analog input, supporting 8 AI thermocouples types B, E, J, K, L, N, R, S, T with 16 bit measurement and 50 ms cycle time.
Detailed Parameters
Part number:6AG1331-7PF11-4AB0
Product family:SIPLUS S7-300
Module designation:SM 331
Module type:Analog input
Input channels:8 AI
Channel configuration:1x 40-pole
Connector arrangement:40-pole
Analog input isolation:Analog input isolated
Conformal coating:With conformal coating
Measuring range:0…+60 °C
Thermocouple types:B, E, J, K, L, N, R, S, T
Thermocouple connection type:TXK/TXK (L) according to GOST
Data resolution:16 bit
Cycle time:50 ms
Based on:6ES7331-7PF11-0AB0
Engineering Context
This SIPLUS S7-300 SM 331 spare part provides an analog input function for 8 AI thermocouples with analog input isolated.
The module is specified for operation over 0…+60 °C and uses conformal coating.
Thermocouple measurement is configured for types B, E, J, K, L, N, R, S, T using TXK/TXK (L) according to GOST with 16 bit resolution and 50 ms cycle time.
