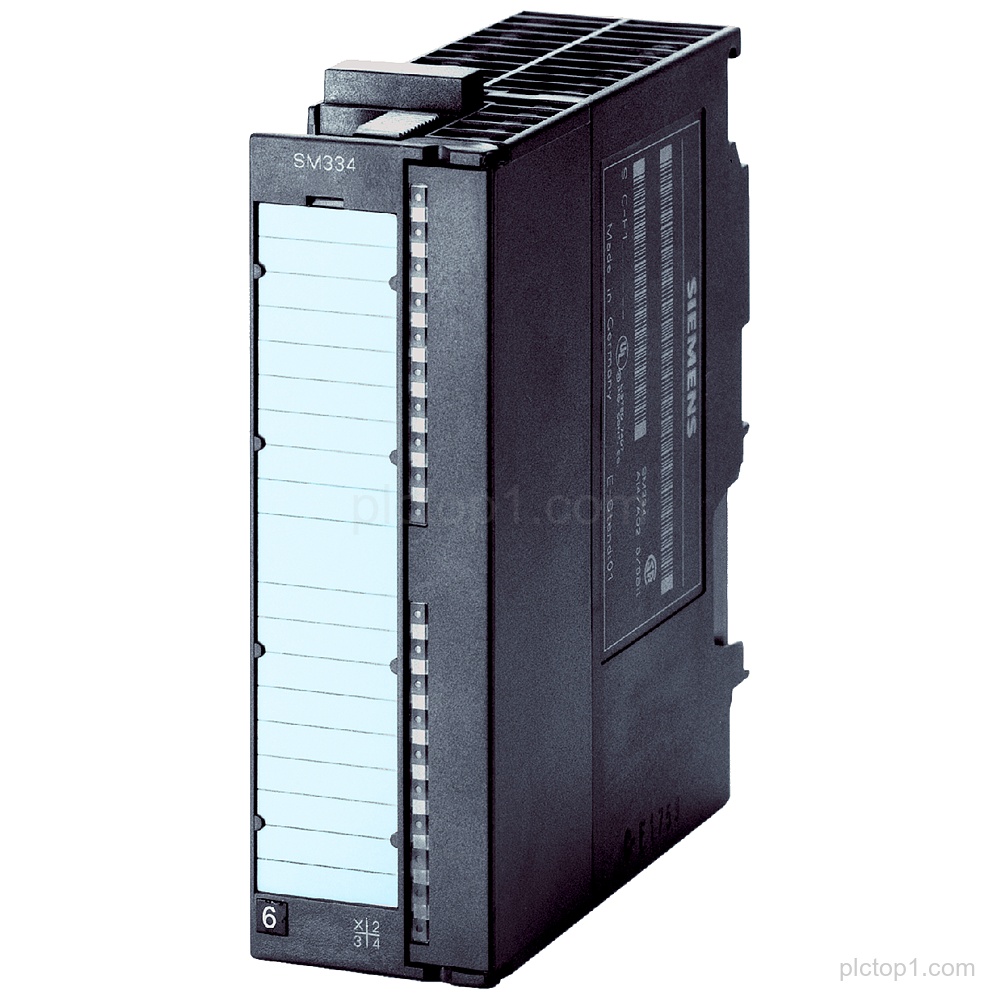

SIPLUS S7-300 SM 334 analog module with part number 6AG1334-0KE00-7AB0, conformal coating, and climatic range -120…+155 degrees for the stated Pt100 measuring range.
Detailed Parameters
Spare part:SIPLUS S7-300 SM 334
Based on:6ES7334-0KE00-0AB0
Conformal coating:Yes
Climatic range:-120…+155 °C
Ambient temperature range:-25…+70 °C
Module isolation:Analog module isolated
Channels:4 AI / 2 AO
Resolution:12 bit
Input type:0-10 V for Pt100
Measuring range:10 kOhm
Connector type:1x 20-pole
Engineering Context
This SIPLUS S7-300 SM 334 spare part provides analog inputs and analog outputs with analog module isolation.
The module is designed for 0–10 V input for Pt100 within a 10 kOhm measuring range.
The specified operating ambient temperature range is -25…+70 °C.
FAQ
1. What module family and function does 6AG1334-0KE00-7AB0 belong to?
It is a SIPLUS S7-300 SM 334 analog module with 4 AI and 2 AO.
2. How many analog input and analog output channels are provided?
The module provides 4 AI and 2 AO.
3. What resolution is specified for the analog module?
The module is specified as 12 bit.
4. What input range is stated for Pt100 measurements?
The stated input is 0-10 V for Pt100.
5. What measuring range is specified?
The stated measuring range is 10 kOhm.
6. What temperature ranges are specified?
The specified ambient temperature range is -25…+70 °C and the specified climatic range is -120…+155 °C.
7. Is the analog module isolated?
Yes, it is specified as an analog module isolated.
