Product information

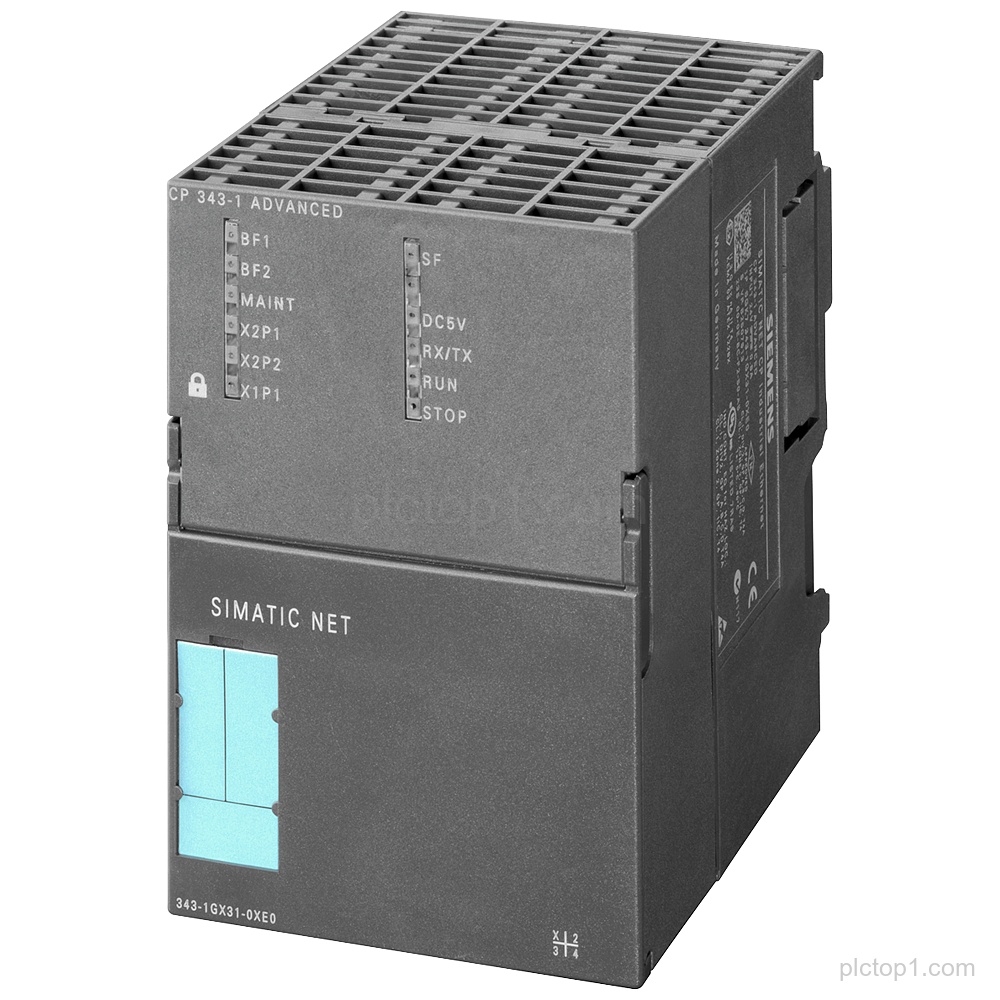

SIPLUS NET CP 343-1 Advanced (Part Number: 6AG1343-1GX31-4XE0) is specified as a spare part based on 6GK7343-1GX31-0XE0 with conformal coating for connection of the SIMATIC S7-300 CPU to Ind. Ethernet.
Detailed Parameters
Spare part:Yes
Product family / designation:SIPLUS NET CP 343-1 Advanced
Based on:6GK7343-1GX31-0XE0
Conformal coating:Yes
Operating temperature:0…+60 °C
Intended connection:for connection of the SIMATIC S7-300 CPU to Ind. Ethernet
PROFINET roles:PROFINET IO controller and/or IO Device RT and RT and IRT IRT, MRP, PROFINET CBA
Communication:TCP/IP ISO, UDP, S7 communication, S5-compatible communication, (send/receive) with fetch/write with and without RFC 1006
Multicast diagnostics extension:Supported
SNMP:Supported
DHCP:Supported
FTP client/server:Supported
Email:Supported
Ethernet interface:Gigabit-SS1X RJ45 (10/100/1000)
PROFINET interface:2x RJ45(10/100 Mbit) PROFINET CBA
Security:Included
Engineering Context
Used as a SIPLUS NET CP 343-1 Advanced spare part to connect the SIMATIC S7-300 CPU to Ind. Ethernet.
Supports PROFINET IO controller and/or IO Device with RT and IRT, MRP, and PROFINET CBA capabilities as specified.
Provides the listed network services and protocols including TCP/IP ISO, UDP, S7 communication, and S5-compatible communication with fetch/write with and without RFC 1006.
FAQ
1. What is the product family and designation for Part Number 6AG1343-1GX31-4XE0?
SIPLUS NET CP 343-1 Advanced.
2. What is this spare part based on?
It is based on 6GK7343-1GX31-0XE0.
3. For which CPU connection is the product specified?
For connection of the SIMATIC S7-300 CPU to Ind. Ethernet.
4. Which PROFINET roles and features are specified?
PROFINET IO controller and/or IO Device RT and IRT, MRP, and PROFINET CBA.
5. Which interfaces are specified on the module?
Gigabit-SS1X RJ45 (10/100/1000) and PROFINET interface 2x RJ45(10/100 Mbit) PROFINET CBA.
6. What communication types are explicitly listed?
TCP/IP ISO, UDP, S7 communication, S5-compatible communication, and (send/receive) with fetch/write with and without RFC 1006.
