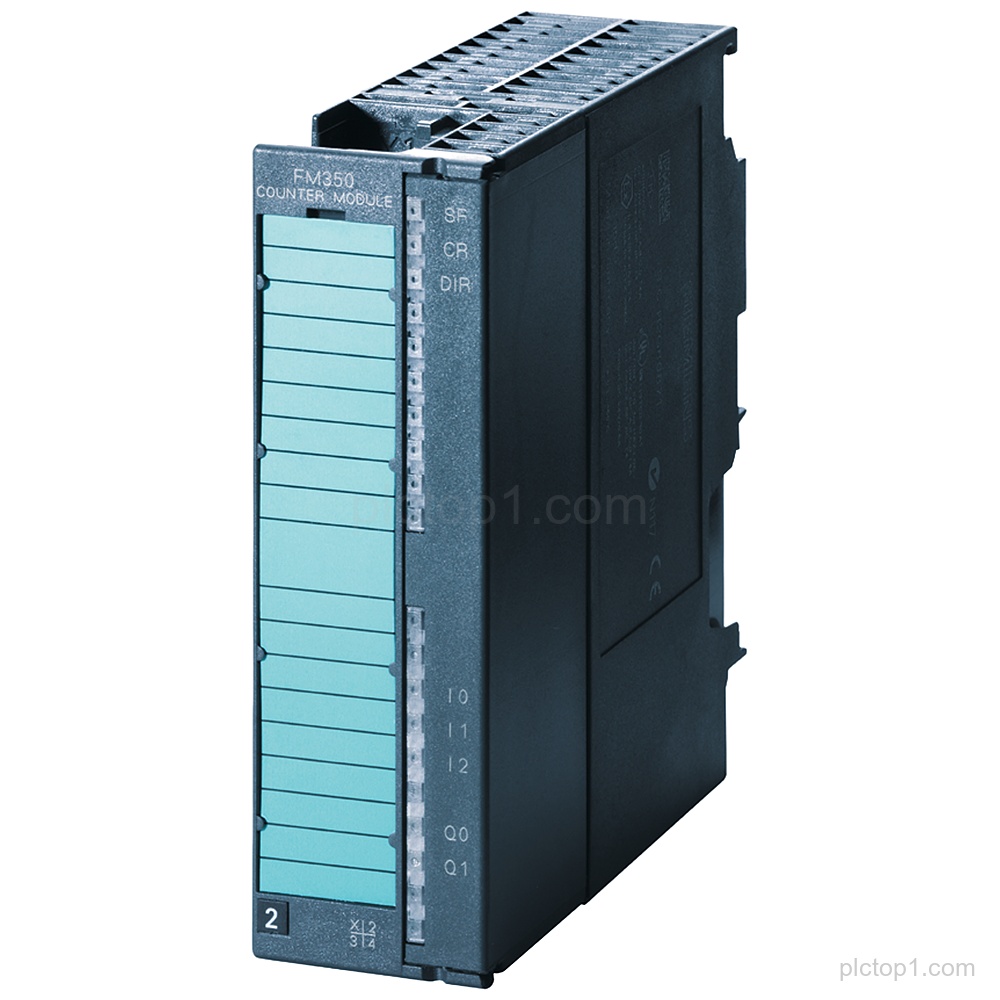

SIPLUS S7-300 FM350-1 counter module, Part number 6AG1350-1AH03-2AE0, for connection of 5 V and 24 V incremental encoders and counter functions up to 500 kHz in isochronous mode.
Detailed Parameters
Product family / designation:SIPLUS S7-300 FM350-1
Based on:6ES7350-1AH03-0AE0
Spare part:***spare part***
Coating:conformal coating
Ambient temperature range:-25…+60 °C
Counter module function:counter functions up to 500 kHz
Channel count:1 channel
Encoder input supply:for connection of 5 V and 24 V incremental encoders
Mode:isochronous mode
Measuring range types:incl. configuration package on CD-ROM
Engineering Context
The FM350-1 counter module provides counter functions up to 500 kHz in isochronous mode.
The module is designed for connection of 5 V and 24 V incremental encoders using 1 channel.
The unit is based on 6ES7350-1AH03-0AE0 and is provided with conformal coating.
FAQ
1. What product family and function does 6AG1350-1AH03-2AE0 belong to?
6AG1350-1AH03-2AE0 is a SIPLUS S7-300 FM350-1 counter module.
2. What counter performance is specified for this FM350-1 module?
It provides counter functions up to 500 kHz.
3. How many channels does the counter module provide?
It is specified as 1 channel.
4. Which incremental encoder supply voltages are supported?
It is specified for connection of 5 V and 24 V incremental encoders.
5. What operating mode is specified for the counter function?
The module is specified for isochronous mode.
6. What temperature range is stated for this module?
The stated range is -25…+60 °C.
7. Is a configuration package included?
Yes—measuring range types are specified as incl. configuration package on CD-ROM.
