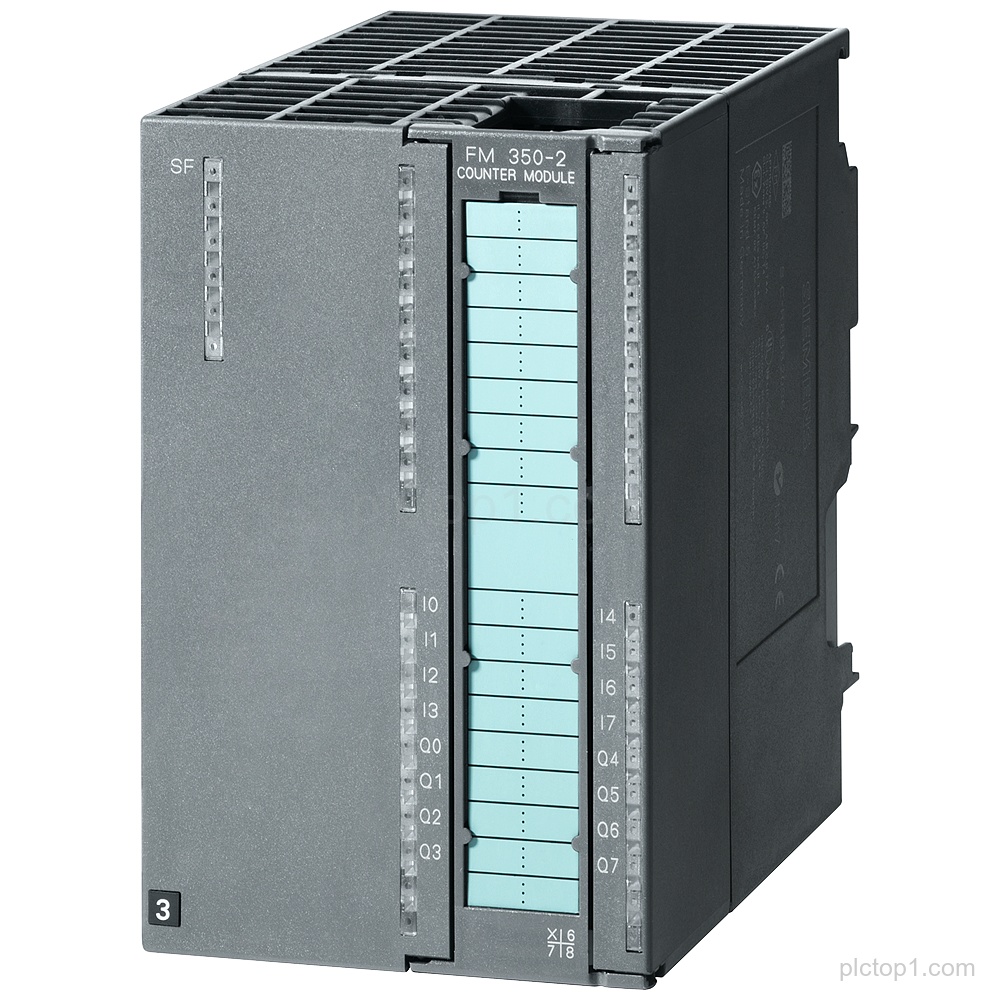

SIPLUS S7-300 FM350-2 counter module spare part; part number 6AG1350-2AH01-4AE0 with 8 channels and a 24 V encoder for counting and measurement functions.
Detailed Parameters
Spare part:Yes
Product family / system:SIPLUS S7-300
Module designation:FM 350-2
Channel count:8 channels
Base for configuration:based on 6ES7350-2AH01-0AE0
Coating:conformal coating
Ambient temperature range:0…+60 °C
Measurement / input type:24 V encoder
Functions:counting, frequency measurement, speed measurement, cycle duration measurement, dosing incl. configuration package and electronic documentation on CD-ROM
Specified rate:20 kHz
Engineering Context
FM 350-2 is configured based on 6ES7350-2AH01-0AE0 and is provided as a SIPLUS S7-300 spare part.
The module operates with a 24 V encoder for counting and measurement functions including frequency and speed measurement.
FM 350-2 supports dosing including a configuration package and electronic documentation on CD-ROM.
FAQ
1. What is the module designation for part number 6AG1350-2AH01-4AE0?
FM 350-2.
2. How many channels does the FM 350-2 counter module have?
8 channels.
3. What is the encoder input type used for counting?
24 V encoder.
4. Which measurement functions are supported?
frequency measurement, speed measurement, and cycle duration measurement (also counting and dosing).
5. What coating and temperature range are specified?
conformal coating and 0…+60 °C.
6. What is included with the dosing function?
dosing incl. configuration package and electronic documentation on CD-ROM.
