Product information

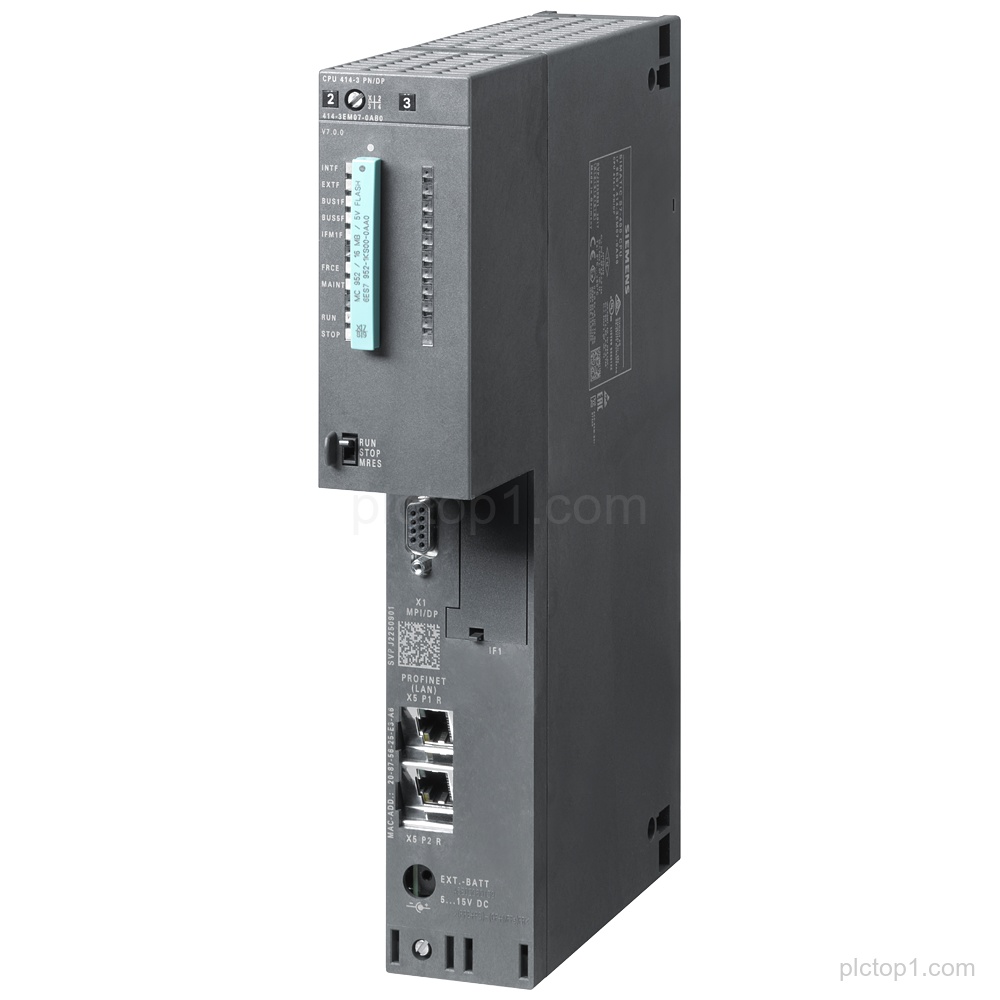

SIPLUS S7-400 CPU 414-3 PN/DP, part number 6AG1414-3EM07-7AB0, is based on 6ES7414-3EM07-0AB0 and includes conformal coating and defined memory and interface configuration.
Detailed Parameters
Based on:6ES7414-3EM07-0AB0
Conformal coating:Yes
Operating temperature:-25…+70 °C
Work memory:4 MB (2 MB code, 2 MB data)
1st interface:MPI/DP 12 Mbps (X1)
2nd interface:ETHERNET/PROFINET (X5)
3rd interface:IF 964-DP plug-in (IF1)
Engineering Context
The SIPLUS S7-400 CPU 414-3 PN/DP (central processing unit) is based on 6ES7414-3EM07-0AB0 with conformal coating.
The CPU provides a 1st interface MPI/DP 12 Mbps (X1) and an ETHERNET/PROFINET 2nd interface (X5).
The CPU includes an IF 964-DP plug-in as the 3rd interface (IF1) and provides 4 MB work memory.
FAQ
1. What is the product designation and part number?
SIPLUS S7-400 CPU 414-3 PN/DP, part number 6AG1414-3EM07-7AB0.
2. What is the temperature range?
The specified operating temperature range is -25…+70 °C.
3. What is the CPU work memory configuration?
Work memory is 4 MB total, consisting of 2 MB code and 2 MB data.
4. Which interfaces are provided on this CPU?
Interfaces include MPI/DP 12 Mbps (X1), ETHERNET/PROFINET (X5), and IF 964-DP plug-in (IF1).
5. What is the base reference for this SIPLUS CPU?
It is based on 6ES7414-3EM07-0AB0.
