Product information

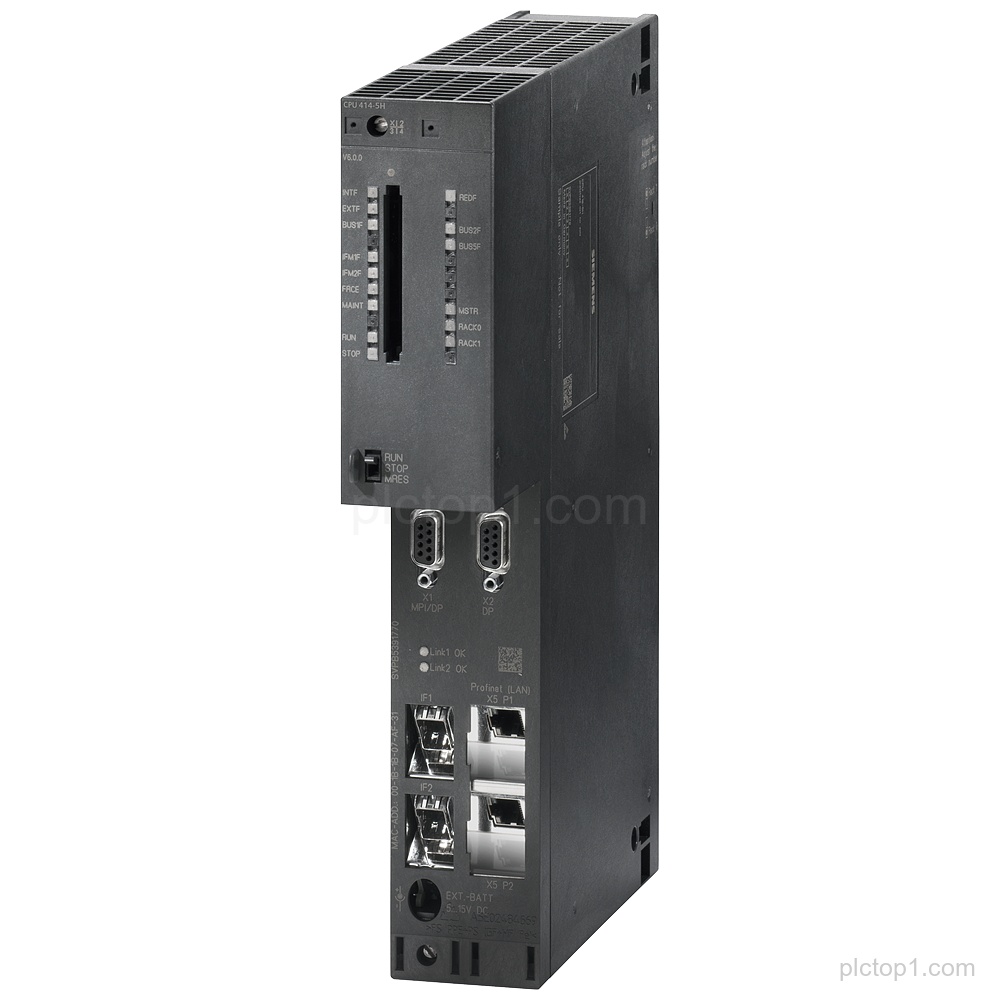

SIPLUS S7-400 CPU 414-5H, part number 6AG1414-5HM06-7AB0, is a central processing unit for S7-400H and S7-400F/FH with conformal coating and an operating range of -25…+70 °C.
Detailed Parameters
Product designation:SIPLUS S7-400 CPU 414-5H
Based on:6ES7414-5HM06-0AB0
Conformal coating:Yes
Operating temperature:-25…+70 °C
CPU application:Central processing unit for S7-400H and S7-400F/FH
Interfaces:5
Interface configuration:1x MPI/DP, 1x DP, 1x PN and 2 for SYNC modules
Memory:4 MB
Memory – data:2 MB data
Memory – program:2 MB program
Engineering Context
The SIPLUS S7-400 CPU 414-5H is intended for use as a central processing unit for S7-400H and S7-400F/FH.
The CPU provides 5 interfaces including 2 interfaces for SYNC modules.
Memory configuration is specified as 4 MB total with 2 MB data and 2 MB program.
FAQ
1. What is the product designation for part number 6AG1414-5HM06-7AB0?
The product designation is SIPLUS S7-400 CPU 414-5H.
2. What is this CPU based on?
It is based on 6ES7414-5HM06-0AB0.
3. Which systems is the CPU 414-5H intended for?
It is a central processing unit for S7-400H and S7-400F/FH.
4. Does the CPU have conformal coating?
Yes, it is based on 6ES7414-5HM06-0AB0 with conformal coating.
5. What interfaces are available on the CPU?
It has 5 interfaces: 1x MPI/DP, 1x DP, 1x PN and 2 for SYNC modules.
6. How much memory does the CPU provide?
It provides 4 MB memory with 2 MB data and 2 MB program.
7. What operating temperature range is specified?
The specified operating temperature range is -25…+70 °C.
