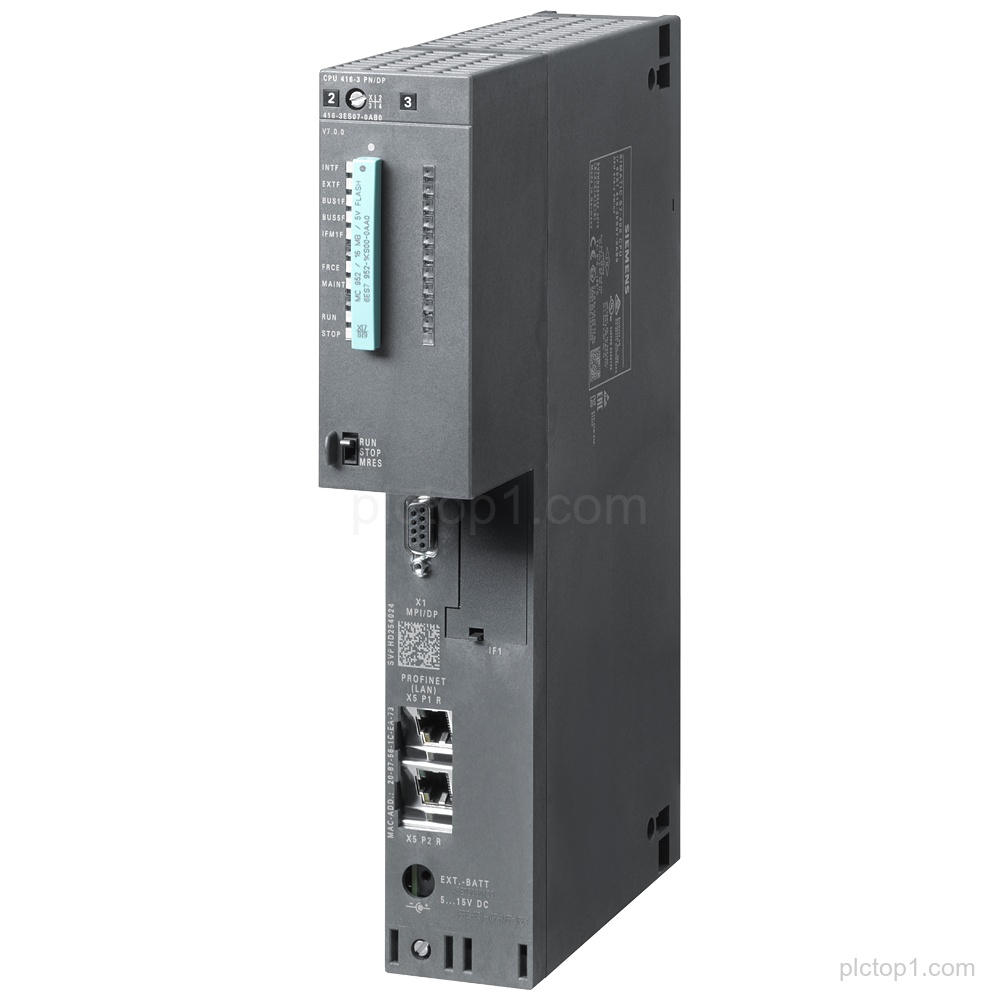

SIPLUS S7-400 CPU 416-3 PN/DP, part number 6AG1416-3ES07-7AB0, is a central processing unit with specified work memory and interfaces, designed for -25…+70 °C operation.
Detailed Parameters
Based on:6ES7416-3ES07-0AB0
Product coating:conformal coating
Operating temperature:-25…+70 °C
Central processing unit:work memory 16 MB (8 MB code, 8 MB data)
Interfaces (1st):MPI/DP 12 Mbps (X1)
Interfaces (2nd):ETHERNET/PROFINET (X5)
Interfaces (3rd):IF 964-DP plug-in (IF1)
Engineering Context
The CPU 416-3 PN/DP provides a central processing unit with work memory specified as 16 MB (8 MB code, 8 MB data).
The interface configuration includes MPI/DP 12 Mbps on X1 and ETHERNET/PROFINET on X5.
An IF 964-DP plug-in is provided on IF1 as part of the CPU’s interface set.
FAQ
1. What is the product family and official designation for part number 6AG1416-3ES07-7AB0?
SIPLUS S7-400 CPU 416-3 PN/DP.
2. What is the work memory specification for this CPU?
Work memory 16 MB (8 MB code, 8 MB data).
3. Which interfaces are listed for this CPU?
1st interface MPI/DP 12 Mbps (X1), 2nd interface ETHERNET/PROFINET (X5), and 3rd interface IF 964-DP plug-in (IF1).
4. What temperature range is specified for operation?
-25…+70 °C.
5. What is the coating type specified for this CPU?
Conformal coating.
6. Based on which Siemens product is this CPU stated to be?
It is based on 6ES7416-3ES07-0AB0.
