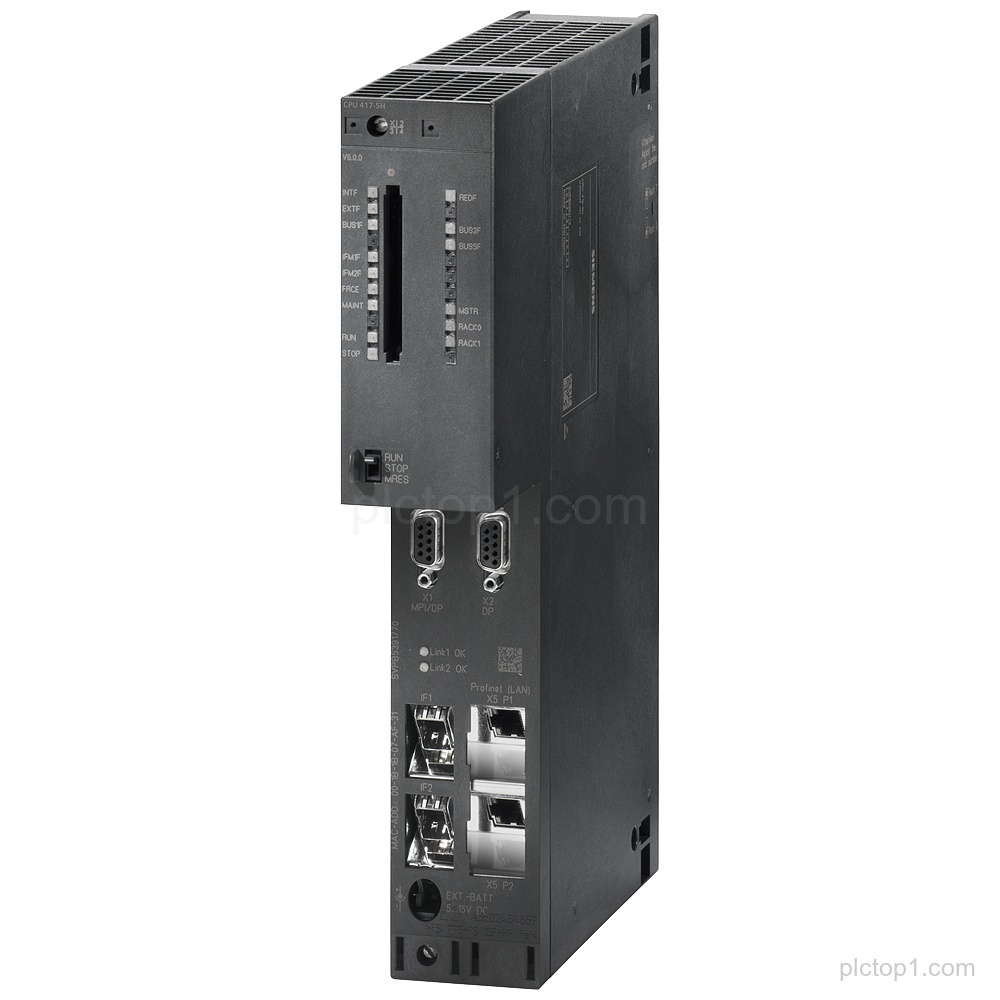

SIPLUS S7-400 CPU 417-5H (part number 6AG1417-5HT06-7AB0) is provided as a central processing unit based on 6ES7417-5HT06-0AB0 with conformal coating.
Detailed Parameters
Based on:6ES7417-5HT06-0AB0
Product family / designation:SIPLUS S7-400 CPU 417-5H
Conformal coating:Yes
Temperature range:-25…+70 °C
CPU type:central processing unit for S7-400H, and S7-400F/FH
Interfaces:5
Interface composition:1x MPI/DP, 1x DP, 1x PN, and 2 for SYNC modules
Memory:32 MB (16 MB data/16 MB program)
Engineering Context
The central processing unit is designed for S7-400H, and S7-400F/FH systems.
The CPU provides 5 interfaces including MPI/DP, DP, PN, and 2 interfaces for SYNC modules depending on system configuration.
Memory is specified as 32 MB with 16 MB data and 16 MB program.
FAQ
1. What is the product family and designation for part number 6AG1417-5HT06-7AB0?
SIPLUS S7-400 CPU 417-5H.
2. What is the basis of the CPU 417-5H configuration?
It is based on 6ES7417-5HT06-0AB0.
3. For which system types is the CPU described as a central processing unit?
S7-400H and S7-400F/FH.
4. What temperature range is specified for the conformal coating version?
-25…+70 °C.
5. How many interfaces are provided and what types are included?
5 interfaces: 1x MPI/DP, 1x DP, 1x PN and 2 for SYNC modules.
6. What memory capacity is specified for this CPU?
32 MB (16 MB data/16 MB program).
