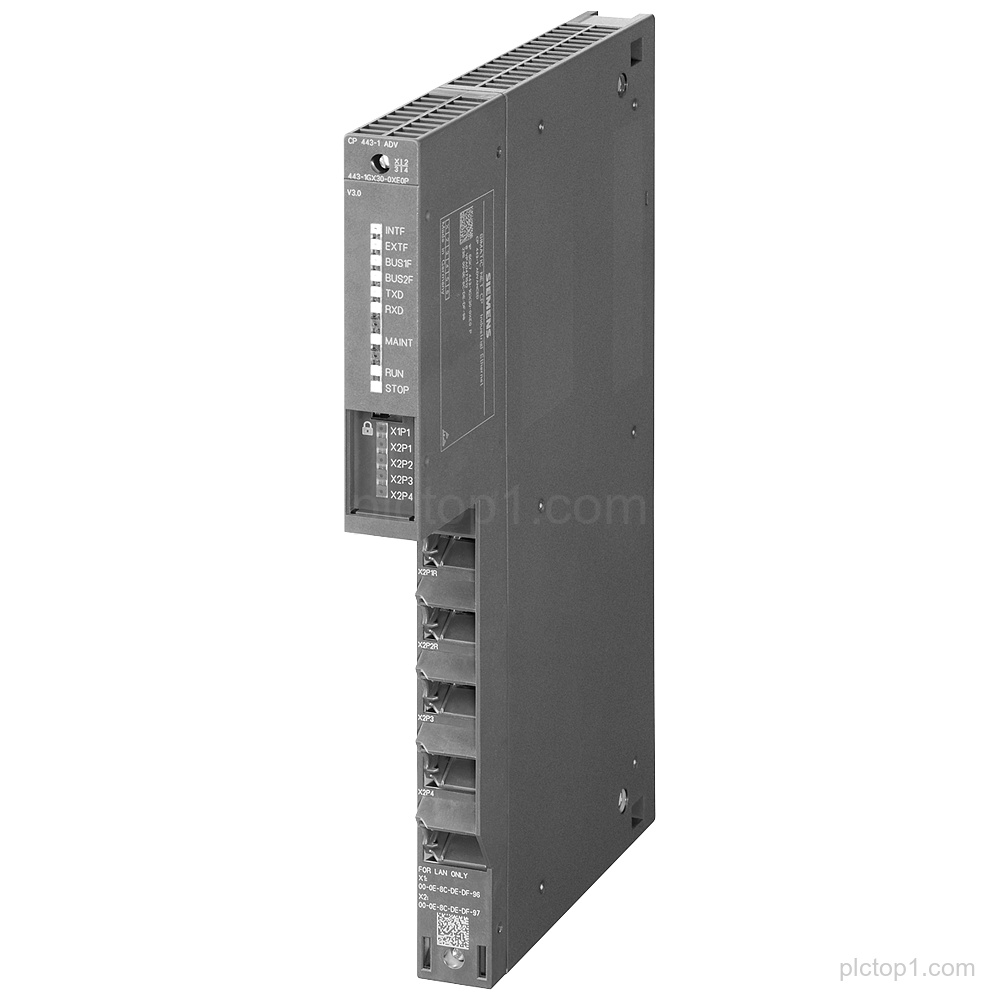

SIPLUS NET CP 443-1 Advanced (part number 6AG1443-1GX30-4XE0) is an advanced communication processor based on 6GK7443-1GX30-0XE0 with conformal coating, featuring PROFINET IO controller S7 communication and Ethernet interfaces with fast startup.
Detailed Parameters
Based on:6GK7443-1GX30-0XE0
Conformal coating:conformal coating
Operating temperature:0…+60 °C
Ethernet speed (total):1x 10/100/1000 Mbps
Ethernet channels (IE switch):4x 10/100 Mbps
Port type:RJ 45 ports
Protocols:ISO; TCP; UDP
PROFINET role:PROFINET IO controller S7 communication
Communication:open communication (send/ receive); S7 routing
IP configuration:IP configuration via DHCP/block
IP access control:IP access control list
Time synchronization:time- -of-day synchronization
Web diagnostics:extended Web diagnostics
Startup behavior:fast start up
PROFIenergy support:support for PROFIenergy
IP routing:IP routing
File transfer:FTP
Web server:web server
Engineering Context
SIPLUS NET CP 443-1 Advanced supports PROFINET IO controller S7 communication and open communication using TCP and UDP.
Ethernet connectivity is provided via RJ 45 ports with 1x 10/100/1000 Mbps and 4x 10/100 Mbps (IE switch).
Network operation includes IP configuration via DHCP/block, IP access control list, and time- -of-day synchronization.
FAQ
1. What is the part number and product family for this device?
The part number is 6AG1443-1GX30-4XE0, and the product family is SIPLUS NET CP 443-1 Advanced.
2. What communication role does the SIPLUS NET CP 443-1 Advanced provide for PROFINET?
It provides PROFINET IO controller S7 communication.
3. Which open communication protocols are listed?
The listed protocols are TCP and UDP, with open communication (send/ receive).
4. How many Ethernet interfaces and what speeds are provided?
It provides 1x 10/100/1000 Mbps and 4x 10/100 Mbps (IE switch), via RJ 45 ports.
5. How is IP configuration performed?
IP configuration is via DHCP/block.
6. What diagnostic and server functions are mentioned?
It includes extended Web diagnostics and a web server.
