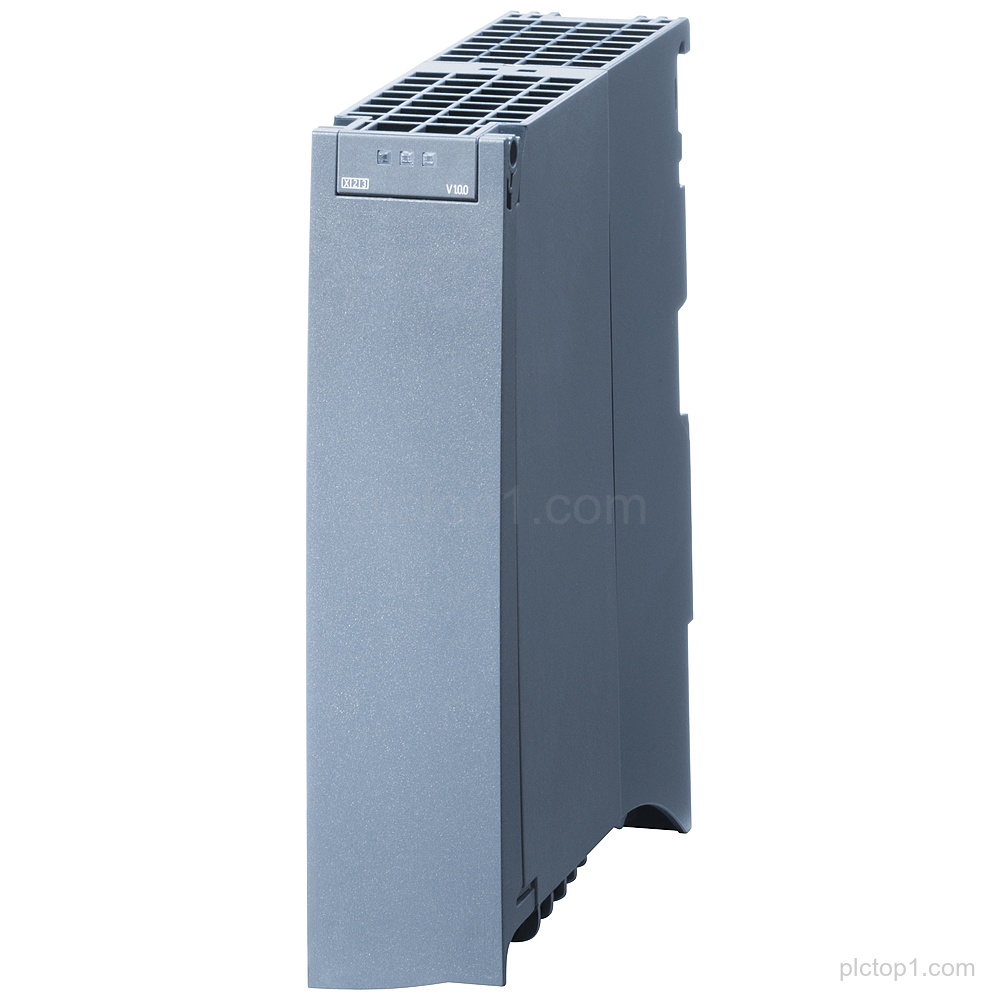

SIPLUS S7-1500 PS 1505 DC power supply with part number 6AG1505-0RA00-7AB0 supplies the backplane bus of the S7-1500 with operating voltage and is based on 6ES7505-0RA00-0AB0.
Detailed Parameters
Product family:SIPLUS S7-1500
Designation:PS 1505
Output power:60 W
Input/output voltage:24/48/60 V DC
Based on:6ES7505-0RA00-0AB0
Conformal coating:Conformal coating
Ambient operating temperature:-40…+70 °C
Startup temperature:-25 °C
Function in the system:System power supply supplies the backplane bus of the S7-1500 with operating voltage
Engineering Context
The SIPLUS S7-1500 PS 1505 provides system power supply to the S7-1500 backplane bus with operating voltage.
The module is based on 6ES7505-0RA00-0AB0 and includes conformal coating.
Operating performance is specified for -40…+70 °C with startup at -25 °C.
FAQ
1. What is the function of the SIPLUS S7-1500 PS 1505?
It is a system power supply that supplies the backplane bus of the S7-1500 with operating voltage.
2. What input/output voltage range is specified for 6AG1505-0RA00-7AB0?
The specified voltage is 24/48/60 V DC.
3. What is the rated output power for SIPLUS S7-1500 PS 1505?
The specified output power is 60 W.
4. Is the power supply based on a Siemens S7-1500 power supply designation?
Yes, it is based on 6ES7505-0RA00-0AB0.
5. What temperature ranges are specified for operation and startup?
Ambient operating temperature is -40…+70 °C and startup is -25 °C.
6. Does the product include conformal coating?
Yes, it is specified with conformal coating.
