Product information

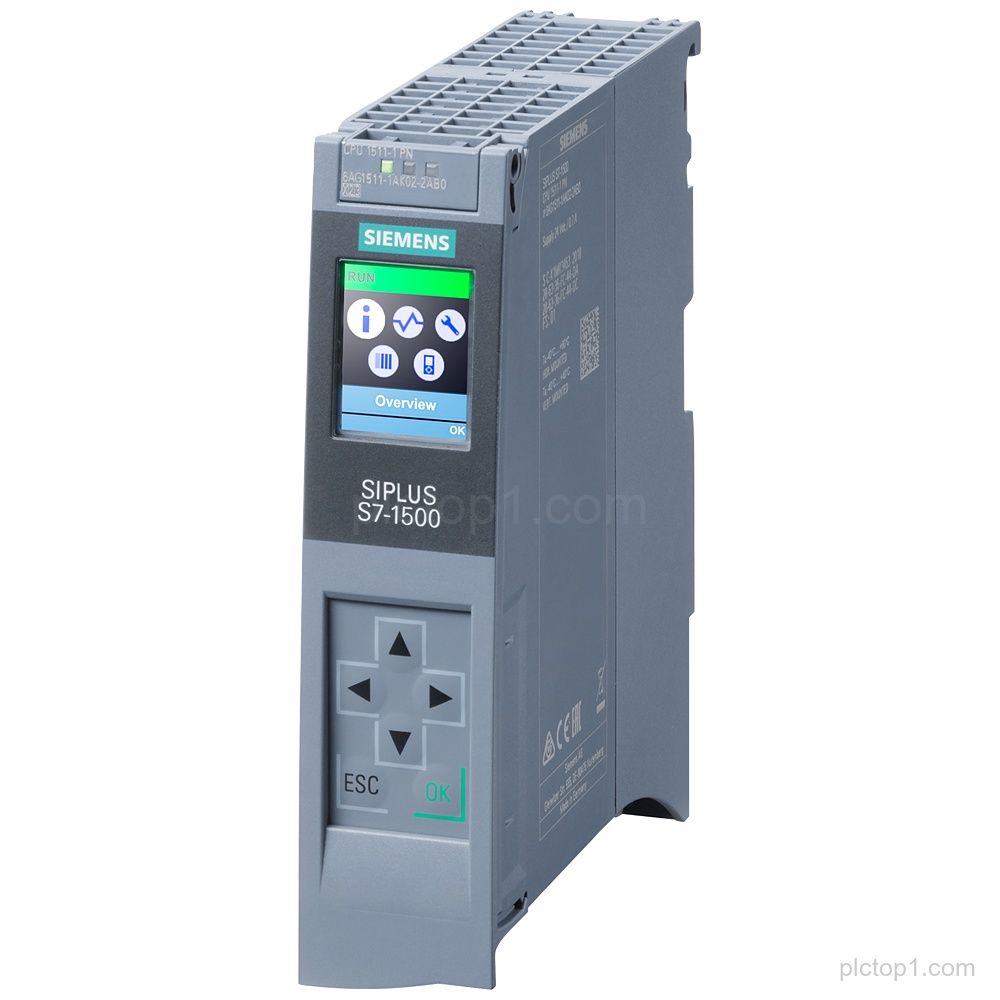

SIPLUS S7-1500 CPU 1511-1 PN (part number 6AG1511-1AK02-2AB0) provides central processing unit functionality with work memory for program and data, and includes a PROFINET IRT interface with 2-port switch.
Detailed Parameters
Based on:6ES7511-1AK02-0AB0
Conformal coating:Yes
Operating temperature range:-40…+60 °C
Function:Central processing unit
Work memory for program:150 KB
Work memory for data:1 MB
1st interface:PROFINET IRT
PROFINET IRT interface:2-port switch
Bit performance:60 ns
SIMATIC Memory Card:Required spare part display: 6AG1591-1AB00-2AA0
Engineering Context
The SIPLUS S7-1500 CPU 1511-1 PN integrates a central processing unit with work memory for program (150 KB) and data (1 MB).
The 1st interface is PROFINET IRT with a 2-port switch for application communication at the CPU level.
The -40…+60 °C operating range and conformal coating configuration support CPU deployment under specified environmental conditions.
FAQ
1. What is the CPU designation for part number 6AG1511-1AK02-2AB0?
The part number 6AG1511-1AK02-2AB0 is designated as SIPLUS S7-1500 CPU 1511-1 PN.
2. Which base model is used for this SIPLUS CPU?
It is based on 6ES7511-1AK02-0AB0.
3. What conformal coating status is specified?
The product is specified with conformal coating.
4. What is the specified operating temperature range?
The operating temperature range is -40…+60 °C.
5. How much work memory is provided for program and data?
Work memory is specified as 150 KB for program and 1 MB for data.
6. What interface is provided and how is it configured?
The 1st interface is PROFINET IRT with a 2-port switch.
7. What bit performance is specified for this CPU?
The specified bit performance is 60 ns.
8. Is a SIMATIC Memory Card required, and what spare part is listed?
SIMATIC Memory Card is required; spare part display is 6AG1591-1AB00-2AA0.
