Product information

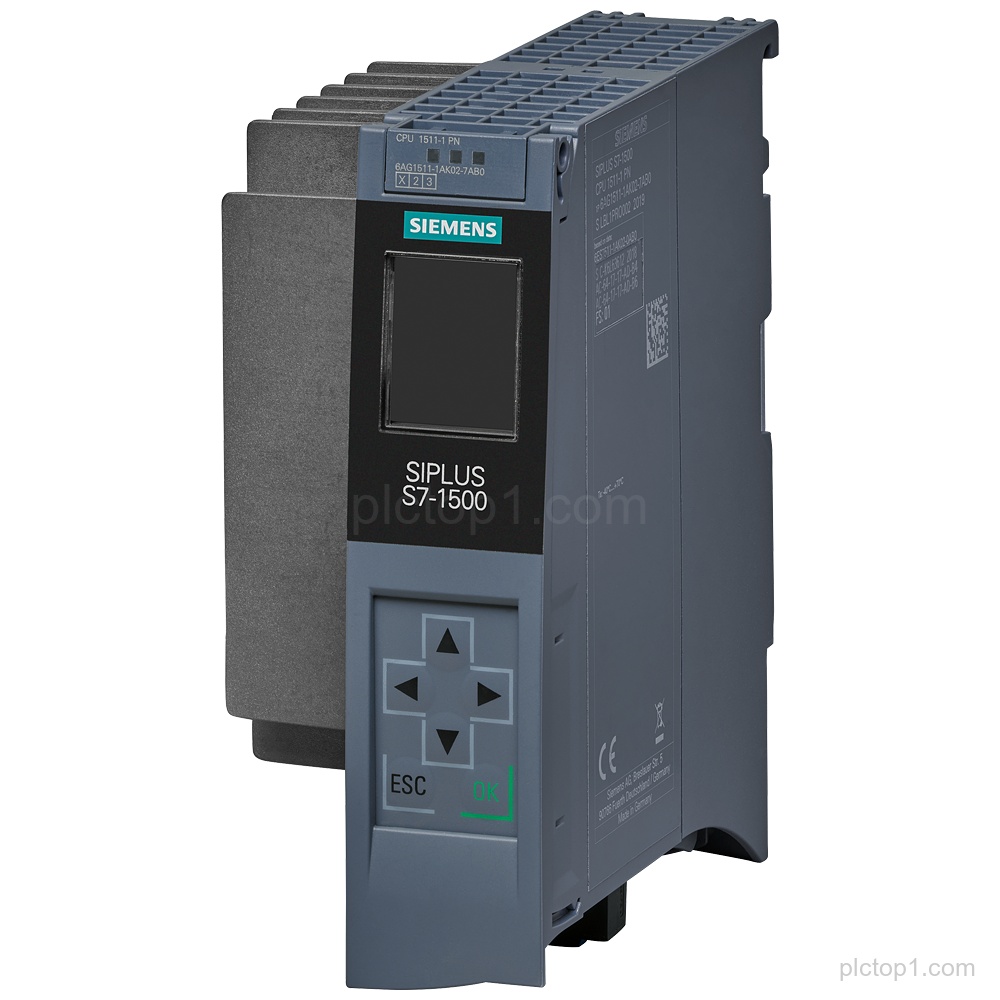

SIPLUS S7-1500 CPU 1511-1 PN, part number 6AG1511-1AK02-7AB0, based on 6ES7511-1AK02-0AB0 with conformal coating.
Detailed Parameters
Part number (base):6ES7511-1AK02-0AB0
Conformal coating:yes
Ambient temperature range:-40…+70 °C
Heat sink:yes
Power supply:no PS usable
Work memory for program:150 KB
Work memory for data:1 MB
1st interface:PROFINET IRT with 2-port switch
Bit performance:60 ns
Spare part:SIMATIC Memory Card required (spare part display: 6AG1591-1AB00-2AA0)
Engineering Context
The central processing unit provides work memory 150 KB for program and 1 MB for data.
The 1st interface is PROFINET IRT with a 2-port switch for system integration.
A SIMATIC Memory Card is required for operation (spare part display: 6AG1591-1AB00-2AA0).
FAQ
1. What is the product family and designation of 6AG1511-1AK02-7AB0?
SIPLUS S7-1500 CPU 1511-1 PN.
2. Is the CPU based on 6ES7511-1AK02-0AB0?
Yes, it is based on 6ES7511-1AK02-0AB0.
3. What environmental temperature range is specified for this CPU?
-40…+70 °C.
4. What work memory is available for program and data?
150 KB for program and 1 MB for data.
5. Which interface is provided as the 1st interface?
PROFINET IRT with 2-port switch.
6. Is a power supply (PS) usable with this CPU?
No, no PS usable.
7. Is a SIMATIC Memory Card required?
Yes. SIMATIC Memory Card required (spare part display: 6AG1591-1AB00-2AA0).
