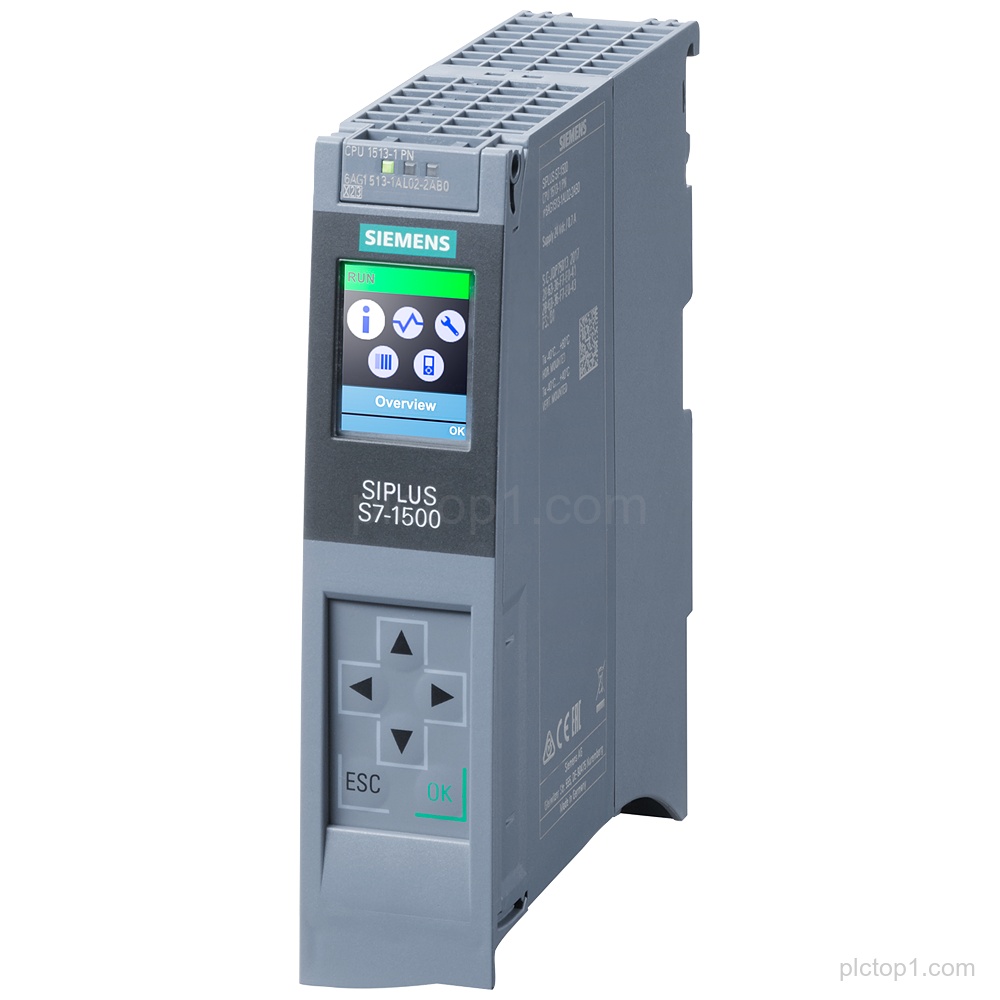

SIPLUS S7-1500 CPU 1513-1 PN (Part Number: 6AG1513-1AL02-2AB0) provides a central processing unit with conformal coating and includes work memory for program and data.
Detailed Parameters
Conformal coating:with conformal coating
Temperature range:-40…+60 °C
Central processing unit:central processing unit
Work memory (program):300 KB
Work memory (data):1.5 MB
1st interface:PROFINET IRT
1st interface (switch):2-port switch
Bit performance:40 ns
Memory card requirement:SIMATIC Memory Card required (spare part display: 6AG1591-1AB00-2AA0)
Base designation:based on 6ES7513-1AL02-0AB0
Engineering Context
The SIPLUS S7-1500 CPU 1513-1 PN provides a central processing unit with specified work memory for program and data.
The CPU supports a 1st interface using PROFINET IRT with a 2-port switch.
SIMATIC Memory Card is required, with the specified spare part display 6AG1591-1AB00-2AA0.
FAQ
1. What is the product designation for 6AG1513-1AL02-2AB0?
SIPLUS S7-1500 CPU 1513-1 PN.
2. Which interface is listed as the 1st interface for this CPU?
PROFINET IRT.
3. How much work memory is available for program and for data?
Work memory for program: 300 KB; work memory for data: 1.5 MB.
4. What switch type is provided with the PROFINET IRT interface?
2-port switch.
5. Is conformal coating included for this CPU?
Yes, it is specified as with conformal coating.
6. What SIMATIC Memory Card is required according to the spare part display?
SIMATIC Memory Card required (spare part display: 6AG1591-1AB00-2AA0).
