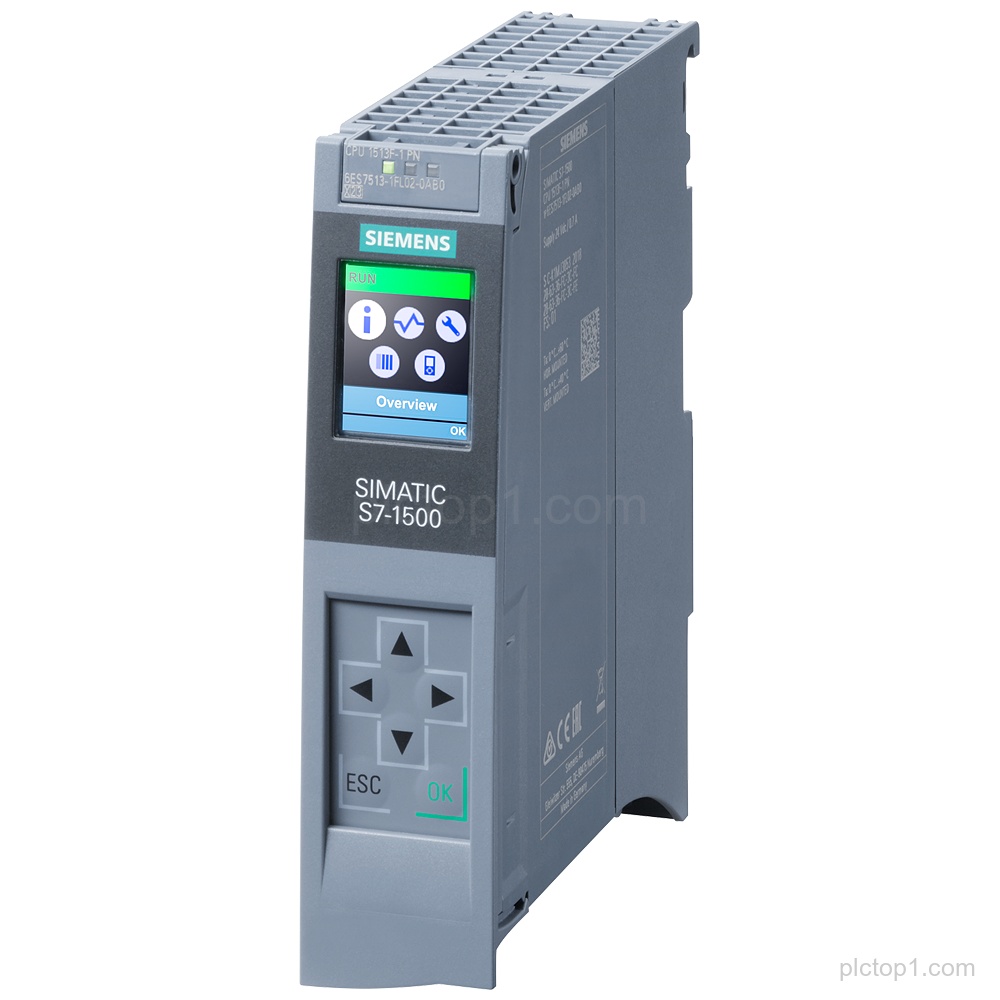

SIPLUS S7-1500 CPU 1513F-1 PN (Part number: 6AG1513-1FL02-2AB0) provides central processing unit functionality with work memory and a PROFINET IRT 2-port switch interface.
Detailed Parameters
Based on:6ES7513-1FL02-0AB0
Conformal coating:with conformal coating
Ambient temperature:-25…+60 °C
Work memory (program):450 KB
Work memory (data):1.5 MB
1st interface:PROFINET IRT with 2-port switch
Bit performance:40 ns
SIMATIC Memory Card:required spare part display: 6AG1591-1AB00-2AA0
Engineering Context
SIPLUS S7-1500 CPU 1513F-1 PN is a central processing unit intended to operate in the specified ambient temperature range.
The CPU provides a PROFINET IRT interface with 2-port switch as the 1st interface.
Work memory is provided for program and data as stated in the product information.
FAQ
1. What CPU family and designation does 6AG1513-1FL02-2AB0 belong to?
6AG1513-1FL02-2AB0 is a SIPLUS S7-1500 CPU 1513F-1 PN.
2. Is 6AG1513-1FL02-2AB0 based on 6ES7513-1FL02-0AB0?
Yes, it is based on 6ES7513-1FL02-0AB0.
3. What conformal coating and ambient temperature range are specified for 6AG1513-1FL02-2AB0?
It is provided with conformal coating and specified for -25…+60 °C.
4. How much work memory is available for program and data on this CPU?
The work memory is 450 KB for program and 1.5 MB for data.
5. What is the 1st interface type for 6AG1513-1FL02-2AB0?
The 1st interface is PROFINET IRT with 2-port switch.
6. Which SIMATIC Memory Card spare part is required for 6AG1513-1FL02-2AB0?
The required spare part display is 6AG1591-1AB00-2AA0.
