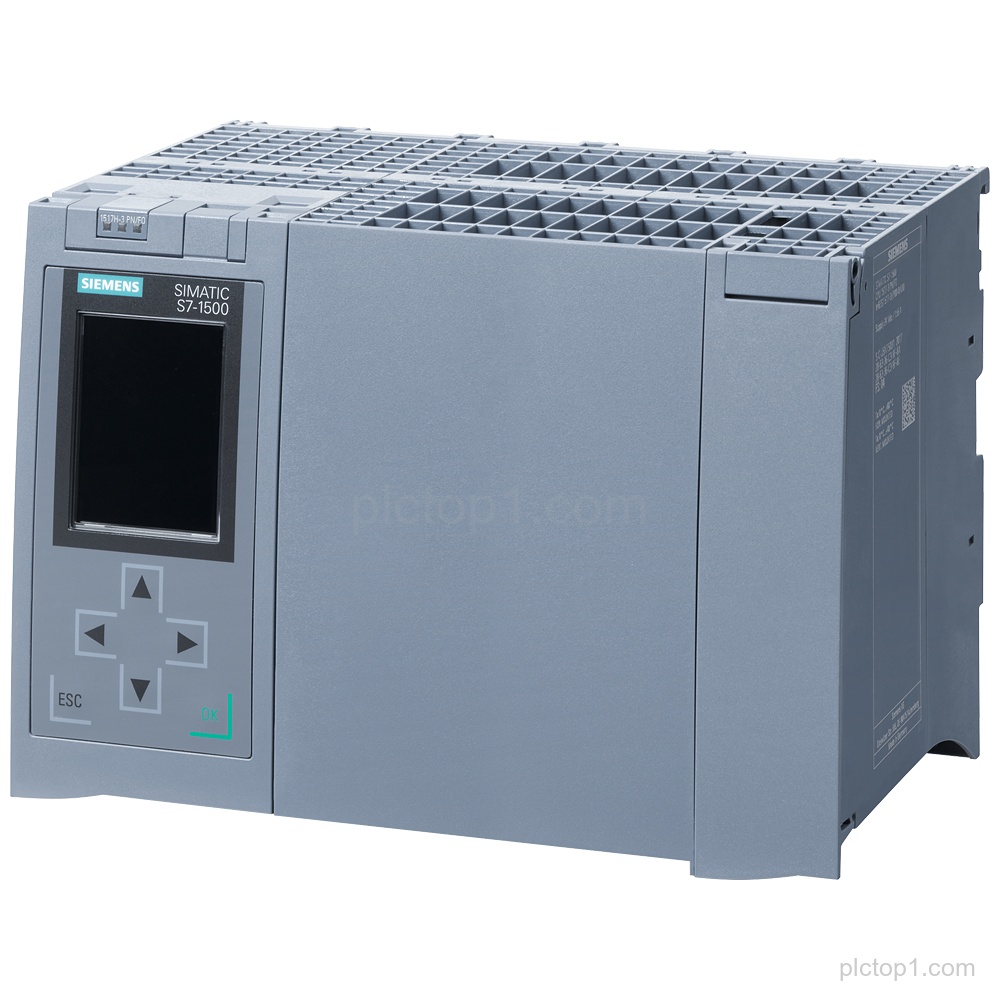

SIPLUS S7-1500 CPU 1517H-3 PN (Part Number: 6AG1517-3HP00-4AB0) provides a central processing unit with conformal coating and the specified PROFINET and H-SYNC interfaces; SIMATIC Memory Card required.
Detailed Parameters
Conformal coating:Yes
Operating temperature range:0…+60 °C
Central processing unit:CPU
Work memory for program:2 MB
Work memory for data:8 MB
1st interface:PROFINET IRT with 2-port switch
2nd interface:PROFINET RT
3rd interface:H-SYNC
SIMATIC Memory Card required:Yes
Based on:6ES7517-3HP00-0AB0
Engineering Context
The CPU 1517H-3 PN is part of the SIPLUS S7-1500 family and is specified with conformal coating.
The interfaces include PROFINET IRT with 2-port switch, PROFINET RT, and H-SYNC as the third interface.
A SIMATIC Memory Card is required for use of this CPU.
FAQ
1. What product family and designation does 6AG1517-3HP00-4AB0 belong to?
6AG1517-3HP00-4AB0 is a SIPLUS S7-1500 CPU 1517H-3 PN.
2. What is the specified operating temperature range?
The specified operating temperature range is 0…+60 °C.
3. How much work memory is provided for program and data?
It provides 2 MB work memory for program and 8 MB for data.
4. Which interfaces are included on the CPU?
The CPU includes a 1st interface PROFINET IRT with 2-port switch, a 2nd interface PROFINET RT, and a 3rd interface H-SYNC.
5. Is a SIMATIC Memory Card required?
Yes, SIMATIC Memory Card required.
6. What is the conformal coating status?
The CPU is specified with conformal coating.
