Ordering this product
Check the full part number and required version against your equipment. Add any electrical or connection requirements when contacting us.
Product information

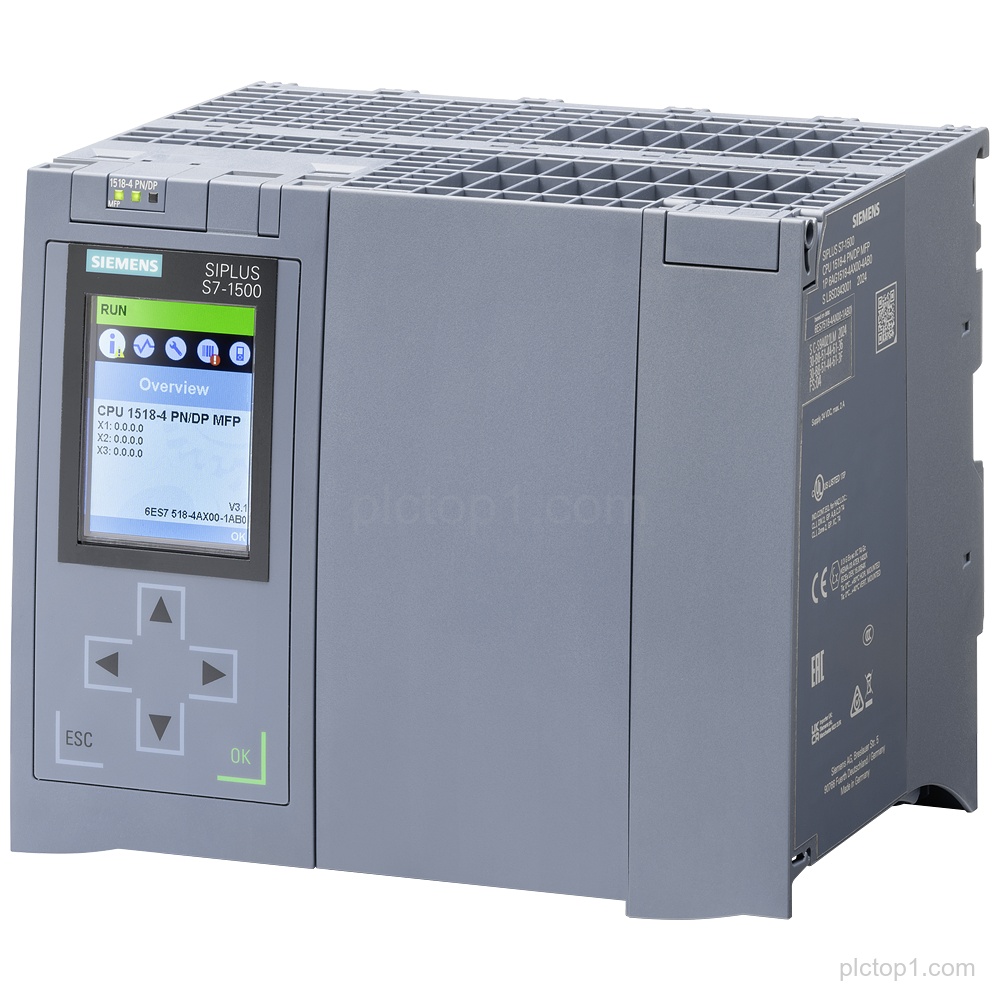

SIPLUS S7-1500 CPU 1518-4 PN/DP MFP (Part number: 6AG1518-4AX00-4AC0) is based on 6ES7518-4AX00-1AC0 with conformal coating and is designed for a 0…+60 °C environment, including C/C++ Runtime preinstalled and SIMATIC Memory Card (min. 2 GB) required.
Detailed Parameters
Product family / designation:SIPLUS S7-1500 CPU 1518-4 PN/DP MFP
Based on:6ES7518-4AX00-1AC0
Conformal coating:with conformal coating
Operating temperature range:0…+60 °C
C/C++ Runtime:preinstalled
Work memory:4 MB for program and 20 MB for data
1st interface:PROFINET IRT with 2-port switch
2nd interface:PROFINET RT
3rd interface:Ethernet
4th interface:PROFIBUS
Bit performance:1 ns bit performance
SIMATIC Memory Card:min. 2 GB required
OPC UA Runtime license:with OPC UA Runtime license
Engineering Context
The CPU 1518-4 PN/DP MFP is based on 6ES7518-4AX00-1AC0 and provided with conformal coating.
The product includes preinstalled C/C++ Runtime and supports multiple interfaces including PROFINET IRT with 2-port switch, PROFINET RT, Ethernet, and PROFIBUS.
The CPU is specified with 1 ns bit performance and work memory of 4 MB for program and 20 MB for data.
FAQ
1. What is the product family and designation for part number 6AG1518-4AX00-4AC0?
SIPLUS S7-1500 CPU 1518-4 PN/DP MFP.
2. On which base is the SIPLUS S7-1500 CPU 1518-4 PN/DP MFP based?
It is based on 6ES7518-4AX00-1AC0.
3. Which interfaces are provided by the CPU?
1st interface: PROFINET IRT with 2-port switch; 2nd interface: PROFINET RT; 3rd interface: Ethernet; 4th interface: PROFIBUS.
4. What runtime components and licenses are included?
C/C++ Runtime is preinstalled, and it is provided with an OPC UA Runtime license.
5. What memory is specified for program and data?
Work memory: 4 MB for program and 20 MB for data.
6. Is a SIMATIC Memory Card required, and what minimum size is specified?
Yes. SIMATIC Memory Card (min. 2 GB) required.
