Product information

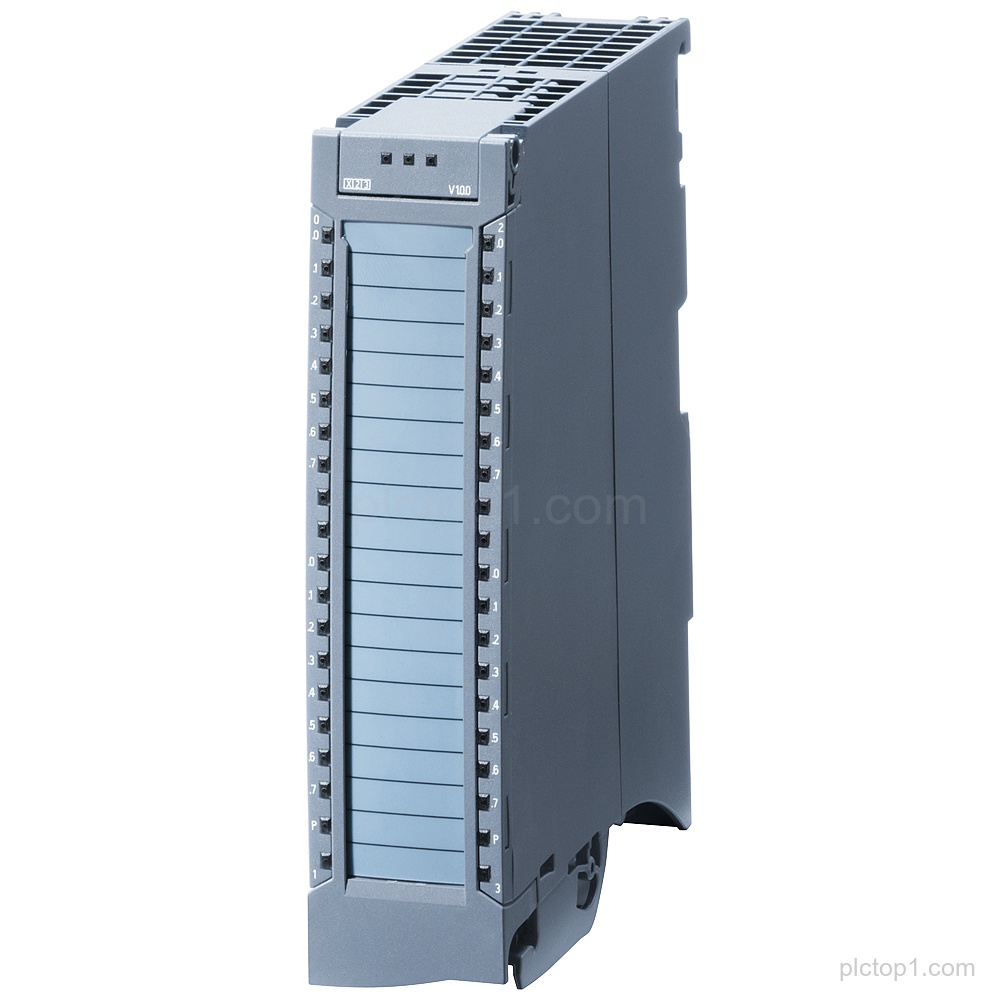

SIPLUS S7-1500 DI 16x24VDC HF with part number 6AG1521-1BH00-7AB0 provides digital input functionality with conformal coating and specified environmental and input timing characteristics.
Detailed Parameters
Product family / system:SIPLUS S7-1500 DI 16x24VDC HF
Based on:6ES7521-1BH00-0AB0
Conformal coating:yes
Module type:digital input module
Channels:16
Channel grouping:groups of 16
Input voltage:24VDC
Operating temperature range:-40…+70 °C
Input delay:0.05..20 ms
Input type:3 (IEC 61131)
Diagnostics:yes
Hardware interrupts:yes
Engineering Context
The digital input module provides 16 channels for 24VDC input signals in groups of 16.
The input delay is specified as 0.05..20 ms and the input type is 3 (IEC 61131).
Diagnostics and hardware interrupts are provided for the digital input module.
FAQ
1. What does the SIPLUS S7-1500 DI 16x24VDC HF module do?
It is a digital input module providing digital input functionality for 24VDC signals.
2. How many input channels does the module provide?
16 channels, in groups of 16.
3. What is the specified input delay range?
0.05..20 ms.
4. What is the specified input type?
Input type 3 (IEC 61131).
5. Does the module include diagnostics?
Yes.
6. Does the module support hardware interrupts?
Yes.
